312001x11C - Murray 31" Lawn Tractor (2003) Mower Housing Parts Diagram

31" Lawn Tractor

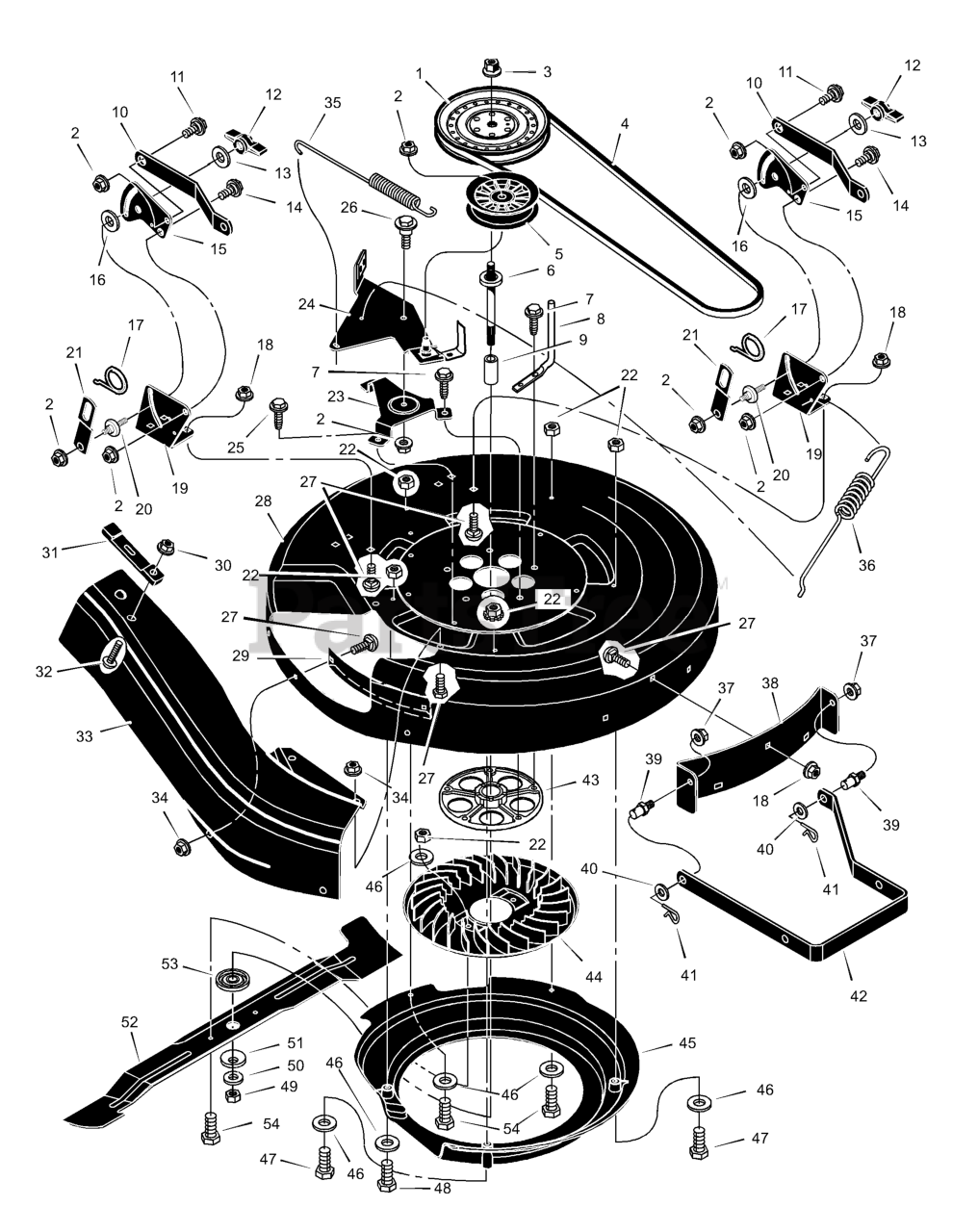

Mower Housing Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray MU15X84

NUT, Flange

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray MU37X74

BELT, Blade

$

$

Currently unavailable

5

Murray MU690387

PULLEY, Idler

$

$

Currently unavailable

6

Murray MU94129

Mandrel

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Murray MU92424

GUIDE, Belt

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Murray MU94055E700

BRACKET, Rear Suspension

$

$

Currently unavailable

11

Murray MU9X52

BOLT, Shoulder

$

$

Currently unavailable

12

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Murray MU9X51

BOLT, Shoulder

$

$

Currently unavailable

15

Murray MU690379E700

Plate, Suspension

$

$

Currently unavailable

16

Murray MU94137

Pad, Friction

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Murray MU15X79

NUT, Flange

$

$

Currently unavailable

19

Murray MU690378E700

BRACKET, Rear Deck

$

$

Currently unavailable

20

Murray MU95194

PIN, Hanger

$

$

Currently unavailable

21

Murray MU94053

Link, Lift

$

$

Currently unavailable

$

$

Currently unavailable

23

Murray MU690427E700

BRACKET, Idler Arm

$

$

Currently unavailable

24

Murray MU690647

ASSEMBLY, Idler Arm & Pad

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Murray MU9X39

BOLT, Shoulder

$

$

Currently unavailable

27

Murray MU2X64

BOLT, Carriage

$

$

Currently unavailable

28

Murray MU690596

Housing, Blade

$

$

Currently unavailable

$

$

Currently unavailable

30

Murray MU15X89

NUT, Flange

$

$

Currently unavailable

31

Murray MU54695

Strap, Rubber

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Murray MU690367

Extension, Chute

$

$

Currently unavailable

$

$

Currently unavailable

35

Murray MU165X118

SPRING, PTO

$

$

Currently unavailable

36

Murray MU165X140

SPRING, Extension

$

$

Currently unavailable

37

Murray MU15X84

NUT, Flange

$

$

Currently unavailable

38

Murray MU690380E700

BRACKET, Front Deck

$

$

Currently unavailable

39

Murray MU94067

PIN, Threaded Shoulder

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Murray MU31X4

PIN, Hair

$

$

Currently unavailable

42

Murray MU690381E700

HANGER, Front

$

$

Currently unavailable

43

Murray MU94305

Housing, Jackshaft

$

$

Currently unavailable

44

Murray MU690359

Fan, Assist

$

$

Currently unavailable

45

Murray MU690360

Housing, Fan

$

$

Currently unavailable

46

$

$

Currently unavailable

47

$

$

Currently unavailable

48

$

$

Currently unavailable

$

$

Currently unavailable

50

$

$

Currently unavailable

51

Murray MU17X166

WASHER, Belleville

$

$

Currently unavailable

$

$

Currently unavailable

53

Murray MU92466

Adapter, Blade

$

$

Currently unavailable

54

$

$

Currently unavailable

--

Murray MU776110

Blade Housing, Complete

Note: (Includes Ref. No's. 1-54)

$

$

Currently unavailable
