312001x11C - Murray 31" Lawn Tractor (2003) Grass Bagger Parts Diagram

31" Lawn Tractor

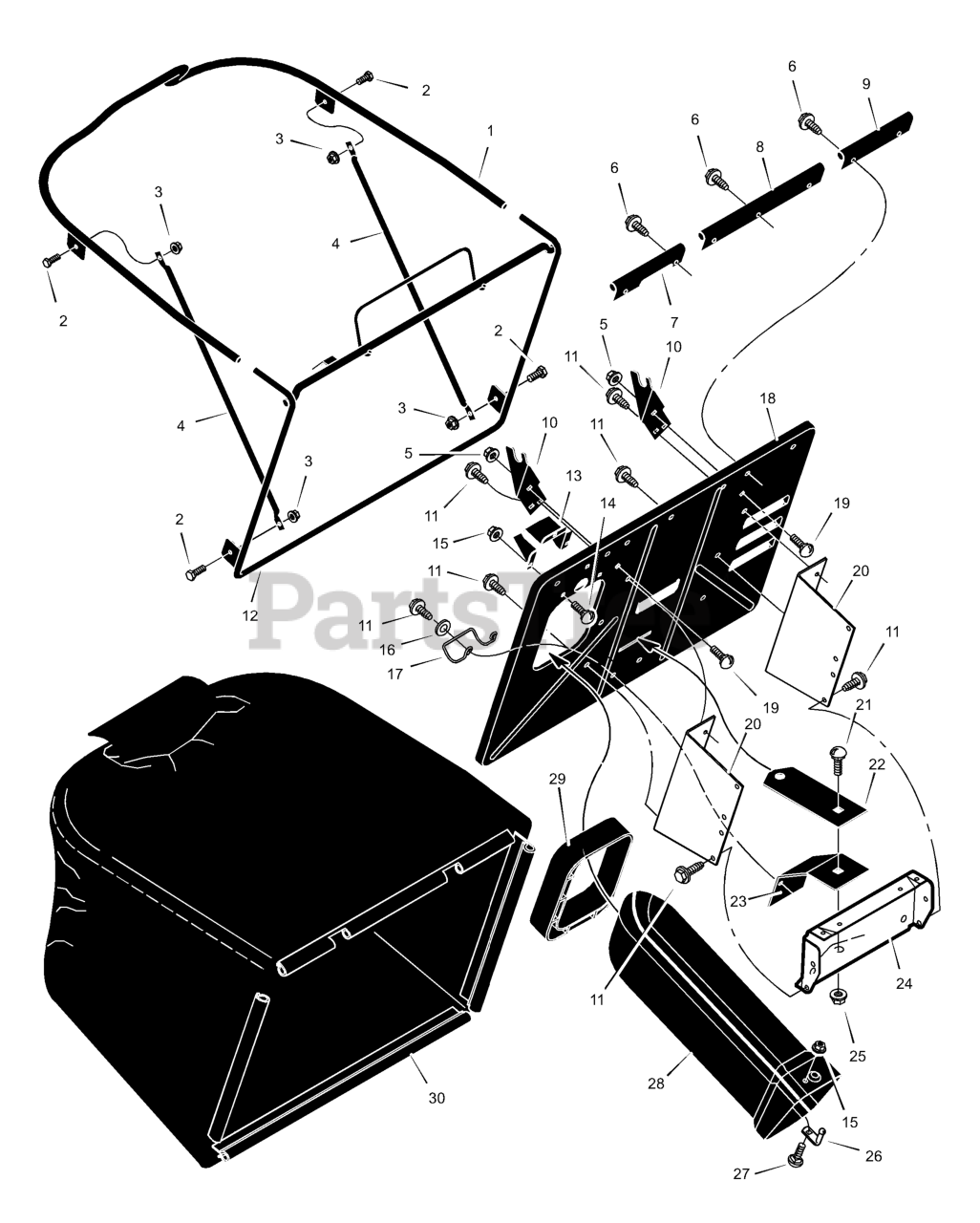

Grass Bagger Parts Diagram

  • Title
1

Murray MU690404

Tube, Top

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

4

Murray MU690433

Strut, Bag

$

$

Currently unavailable

5

Murray MU15X79

NUT, Flange

$

$

Currently unavailable

6

Murray MU193X1

FASTENER, Panel

$

$

Currently unavailable

7

Murray MU690491

Seal, Bag (Right End)

$

$

Currently unavailable

8

Murray MU690492

Seal, Bag (Center)

$

$

Currently unavailable

9

Murray MU690493

Seal, Bag (Left End)

$

$

Currently unavailable

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Murray MU690403

ASSEMBLY, Bag Frame

$

$

Currently unavailable

13

Murray MU690400E700

BRACKET, Switch

$

$

Currently unavailable

14

Murray MU2X82

BOLT, Carriage

$

$

Currently unavailable

15

Murray MU15X89

NUT, Flange

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU690402

Latch, Spring

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Murray MU2X53

BOLT, Carriage

$

$

Currently unavailable

20

Murray MU690355E700

BRACKET, Bagger Mounting

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Murray MU1001000E700

Plate, Hitch Extension

$

$

Currently unavailable

23

Murray MU1001001E700

BRACKET, Lower Mounting

$

$

Currently unavailable

24

Murray MU1001002E700

Plate, Hitch

$

$

Currently unavailable

$

$

Currently unavailable

26

Murray MU54563

PIN, Latch

$

$

Currently unavailable

27

Murray MU2X39

BOLT, Carriage

$

$

Currently unavailable

28

Murray MU690368

Tube, Connecting

$

$

Currently unavailable

29

Murray MU690429

Grommet, Extension Tube

$

$

Currently unavailable

30

Murray MU690438

Bag, Grass

$

$

Currently unavailable
