312001x11C - Murray 31" Lawn Tractor (2003) Chassis & Hood Parts Diagram

31" Lawn Tractor

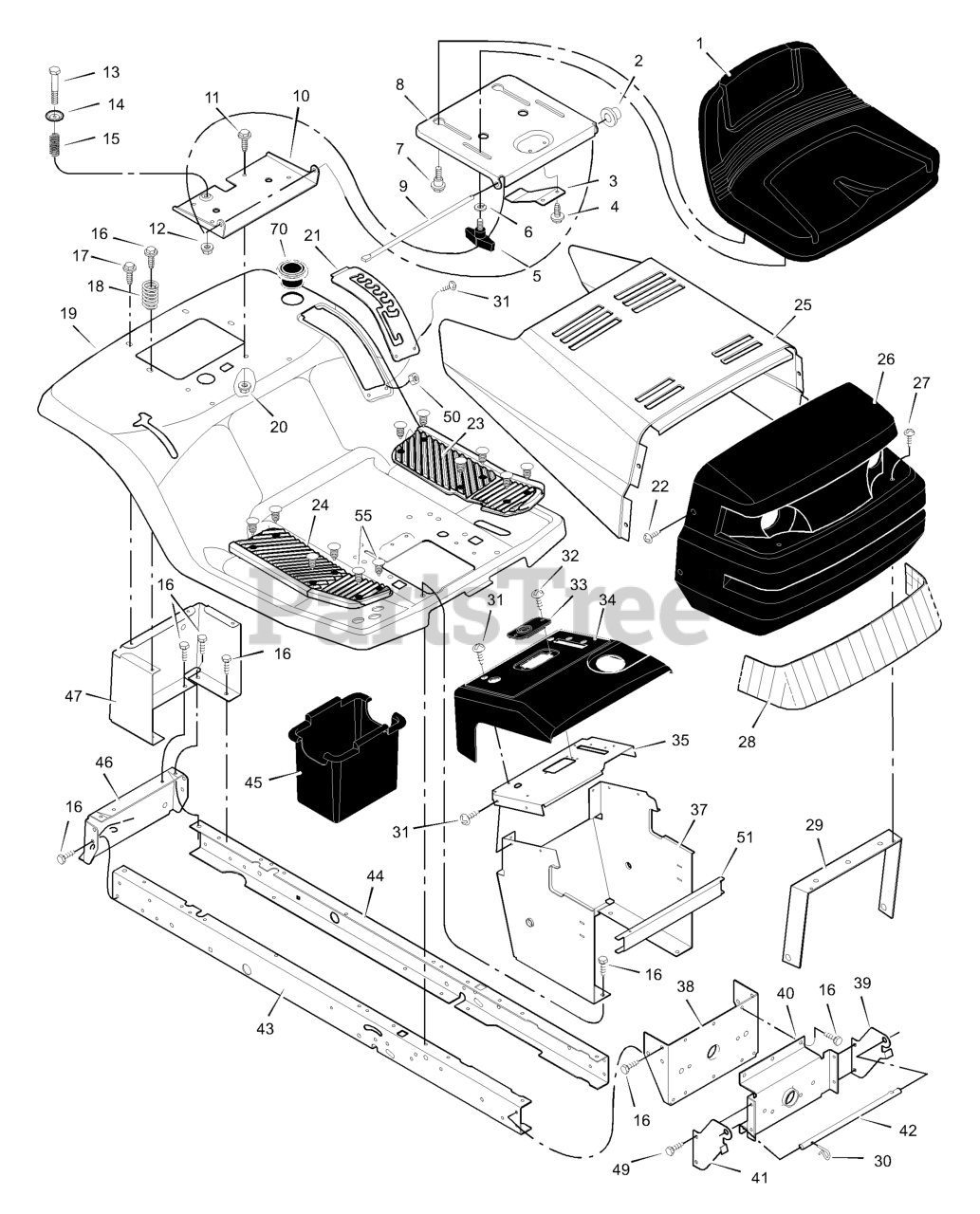

Chassis & Hood Parts Diagram

  • Title

$

$

Currently unavailable

2

Murray MU28X23

Cap, Push On

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Murray MU1001054

BOLT, Wing

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Murray MU9X56

BOLT, Shoulder

$

$

Currently unavailable

8

Murray MU94154E700

SUPPORT, Seat

$

$

Currently unavailable

9

Murray MU94156 Z

ROD, Pivot

$

$

Currently unavailable

10

Murray MU94153E700

BRACKET, Pivot

$

$

Currently unavailable

11

$

$

Currently unavailable

$

$

Currently unavailable

13

Murray MU9X55

BOLT, Shoulder

$

$

Currently unavailable

14

$

$

Currently unavailable

15

$

$

Currently unavailable

16

$

$

Currently unavailable

17

$

$

Currently unavailable

18

$

$

Currently unavailable

19

$

$

Currently unavailable

$

$

Currently unavailable

21

Murray MU94151E700

Plate, Index

$

$

Currently unavailable

22

$

$

Currently unavailable

23

Murray MU1001582

Mat, Left

$

$

Currently unavailable

24

Murray MU1001578

Mat, Right

$

$

Currently unavailable

$

$

Currently unavailable

26

Murray MU92350E700

GRILLE, Assembly

Note: (Includes Lens)

$

$

Currently unavailable

27

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Murray MU92448

BRACE, Grille

$

$

Currently unavailable

30

Murray MU31X4

PIN, Hair

$

$

Currently unavailable

31

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Murray MU94214

BEARING, Steering

$

$

Currently unavailable

$

$

Currently unavailable

35

Murray MU94211E700

Plate, Dash

$

$

Currently unavailable

36

Murray MU93007E700

PANEL, Access

$

$

Currently unavailable

37

Murray MU95323E700

SUPPORT, Dash

$

$

Currently unavailable

38

Murray MU1001270E700

BRACKET, Rear Hanger

$

$

Currently unavailable

39

Murray MU690544E700

SUPPORT, Left Grille

$

$

Currently unavailable

40

Murray MU94007E700

Axle, Hanger

$

$

Currently unavailable

41

Murray MU690543E700

SUPPORT, Right Grille

$

$

Currently unavailable

42

Murray MU92332 Z

ROD, Pivot

$

$

Currently unavailable

43

Murray MU1001268E701

FRAME, Right

$

$

Currently unavailable

44

Murray MU1001269E701

FRAME, Left

$

$

Currently unavailable

45

Murray MU690424

Container, Battery

$

$

Currently unavailable

46

Murray MU1001002E700

Plate, Hitch

$

$

Currently unavailable

47

Murray MU690434E700

PANEL, Rear

$

$

Currently unavailable

$

$

Currently unavailable

50

$

$

Currently unavailable

51

$

$

Currently unavailable

55

Murray MU193X1

FASTENER, Panel

$

$

Currently unavailable

70

Murray MU1001542

Holder, Cup

$

$

Currently unavailable

--

Murray MUF-030770L

Instruction Book and Parts List

$

$

Currently unavailable
