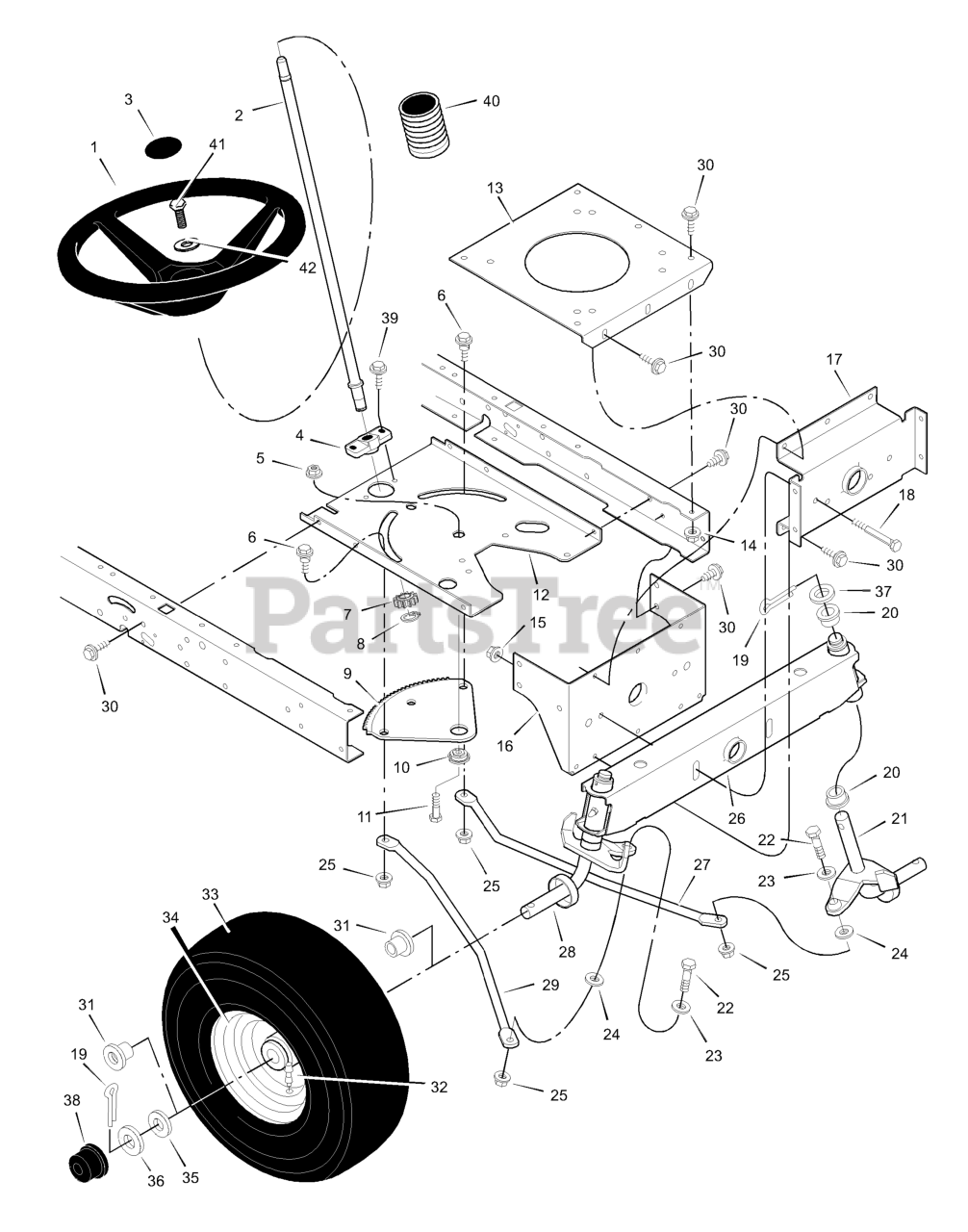

312001x11B - Murray 31" Lawn Tractor (2003) Steering Parts Diagram

31" Lawn Tractor

Steering Parts Diagram

  • Title

1

Murray MU95336

WHEEL, Steering

$

$

Currently unavailable

2

Murray MU690626

Post, Steering

$

$

Currently unavailable

3

Murray MU95338

Insert, Steering Wheel

$

$

Currently unavailable

4

Murray MU94124

BEARING

$

$

Currently unavailable

5

Murray MU15X111

NUT, Flange

$

$

Currently unavailable

6

Murray MU9X57

BOLT, Shoulder

$

$

Currently unavailable

7

Murray MU690183E700

Gear, Pinion

$

$

Currently unavailable

8

Murray MU11X25

Ring, Snap

$

$

Currently unavailable

9

Murray MU94121E700

Gear, Sector

$

$

Currently unavailable

10

Murray MU94123

BEARING

$

$

Currently unavailable

11

Murray MU1X84

BOLT

$

$

Currently unavailable

12

Murray MU1001121E700

Plate, Steering

$

$

Currently unavailable

13

Murray MU94006E700

Plate, Engine

$

$

Currently unavailable

14

Murray MU15X88

NUT, Flange

$

$

Currently unavailable

15

Murray MU15X118

NUT, Flange

$

$

Currently unavailable

16

Murray MU1001270E700

BRACKET, Hanger

$

$

Currently unavailable

17

Murray MU94007E700

Axle, Hanger

$

$

Currently unavailable

18

Murray MU1X146

BOLT

$

$

Currently unavailable

19

Murray MU30X49

PIN, Cotter

$

$

Currently unavailable

20

Murray MU690150

BEARING

$

$

Currently unavailable

21

Murray MU1001299E700

Spindle Assembly, Left

$

$

Currently unavailable

22

Murray MU1X111

BOLT

$

$

Currently unavailable

23

Murray MU17X104

WASHER

$

$

Currently unavailable

24

Murray MU17X53 Z

WASHER

$

$

Currently unavailable

25

Murray MU15X84

NUT, Flange

$

$

Currently unavailable

26

Murray MU690210MA

Axle Assembly

$

$

Currently unavailable

27

Murray MU95329E700

Drag Link, Left

$

$

Currently unavailable

28

Murray MU1001298E700

Spindle Assembly, Right

$

$

Currently unavailable

29

Murray MU95328E700

Drag Link, Right

$

$

Currently unavailable

30

Murray MU26X249

SCREW

$

$

Currently unavailable

31

Murray MU91334

BEARING, Wheel

$

$

Currently unavailable

32

Murray MU24373

Stem, Valve

$

$

Currently unavailable

33

Murray MU090594MA

Tire

Note: (When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.)

$

$

Currently unavailable

--

Murray MU407046

Tube

$

$

Currently unavailable

34

Murray MU690377601

WHEEL & TIRE ASSEMBLY

$

$

Currently unavailable

35

Murray MU17X195

WASHER

$

$

Currently unavailable

36

Murray MU17X113

WASHER

$

$

Currently unavailable

37

Murray MU17X83

WASHER

$

$

Currently unavailable

38

Murray MU94618

Hub Cap

$

$

Currently unavailable

39

Murray MU26X267

SCREW

$

$

Currently unavailable

40

Murray MU54789

Bellows

$

$

Currently unavailable

41

Murray MU25X3

BOLT

$

$

Currently unavailable

42

Murray MU17X146

WASHER

$

$

Currently unavailable
