312001x11B - Murray 31" Lawn Tractor (2003) Mower Housing Suspension Parts Diagram

31" Lawn Tractor

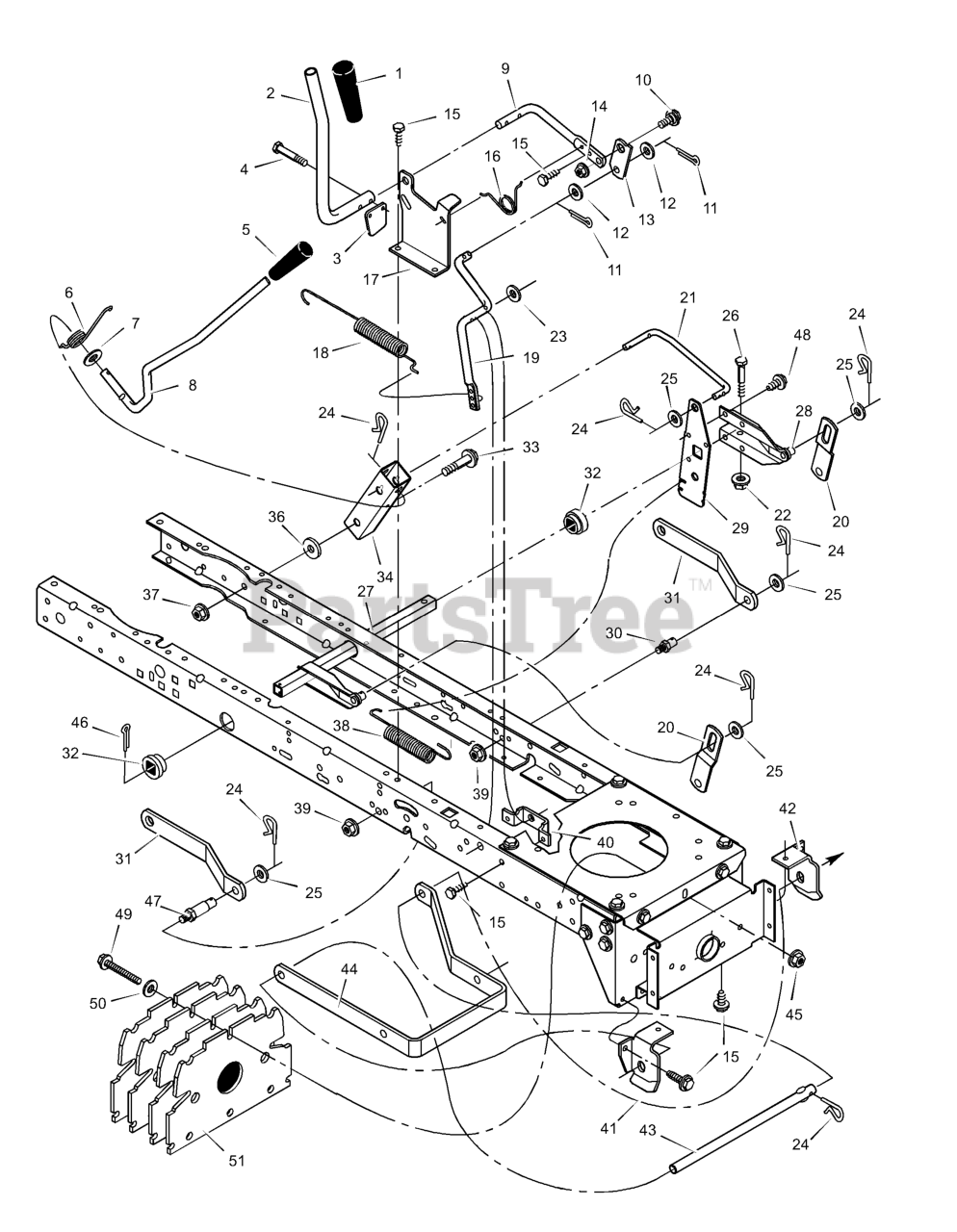

Mower Housing Suspension Parts Diagram

  • Title

$

$

Currently unavailable

2

Murray MU94346 Z

HANDLE, PTO

$

$

Currently unavailable

3

Murray MU94022 Z

Pad, Switch

$

$

Currently unavailable

4

$

$

Currently unavailable

$

$

Currently unavailable

6

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Murray MU690533 Z

HANDLE, Lift

$

$

Currently unavailable

9

Murray MU94017 Z

LEVER, PTO

$

$

Currently unavailable

10

Murray MU9X39

BOLT, Shoulder

$

$

Currently unavailable

11

Murray MU30X20

PIN, Cotter

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Murray MU94004 Z

Link, PTO

$

$

Currently unavailable

14

Murray MU15X84

NUT, Flange

$

$

Currently unavailable

15

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Murray MU94018E700

BRACKET, PTO

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Murray MU690394E700

Crank, PTO

$

$

Currently unavailable

20

Murray MU94053E700

Link, Lift

$

$

Currently unavailable

21

Murray MU94028E700

Link, Lift Handle

$

$

Currently unavailable

22

Murray MU15X118

NUT, Flange

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Murray MU31X4

PIN, Hair

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Murray MU1X74

BOLT, Hex

$

$

Currently unavailable

27

Murray MU690386E700

Arm Assembly, Right Lift

$

$

Currently unavailable

28

Murray MU94180E700

Arm, Right Lift

$

$

Currently unavailable

29

Murray MU94030E700

Plate, Lift Arm

$

$

Currently unavailable

$

$

Currently unavailable

31

Murray MU94055E700

BRACKET, Rear Suspension

$

$

Currently unavailable

32

Murray MU94065

Bushing, Lift Tube

$

$

Currently unavailable

33

Murray MU9X53

BOLT, Shoulder

$

$

Currently unavailable

34

Murray MU94015E700

BRACKET, Pivot

$

$

Currently unavailable

36

$

$

Currently unavailable

37

Murray MU15X84

NUT, Flange

$

$

Currently unavailable

38

$

$

Currently unavailable

39

Murray MU15X68

NUT, Flange

$

$

Currently unavailable

40

Murray MU94005E700

BRACKET, PTO

$

$

Currently unavailable

41

Murray MU94026E700

HANGER, Right Deck

$

$

Currently unavailable

42

Murray MU94027E700

HANGER, Left Deck

$

$

Currently unavailable

43

Murray MU94158 Z

ROD, Hanger

$

$

Currently unavailable

44

Murray MU690381E700

HANGER, Front

$

$

Currently unavailable

45

Murray MU15X89

NUT, Flange

$

$

Currently unavailable

46

Murray MU30X49

PIN, Cotter

$

$

Currently unavailable

47

Murray MU690382

PIN, Threaded Shoulder

$

$

Currently unavailable

$

$

Currently unavailable

49

Murray MU1X106

BOLT, Hex

$

$

Currently unavailable

50

$

$

Currently unavailable

51

Murray MU690370E700

Plate, Weight

$

$

Currently unavailable
