312001x11B - Murray 31" Lawn Tractor (2003) Engine Mount Parts Diagram

31" Lawn Tractor

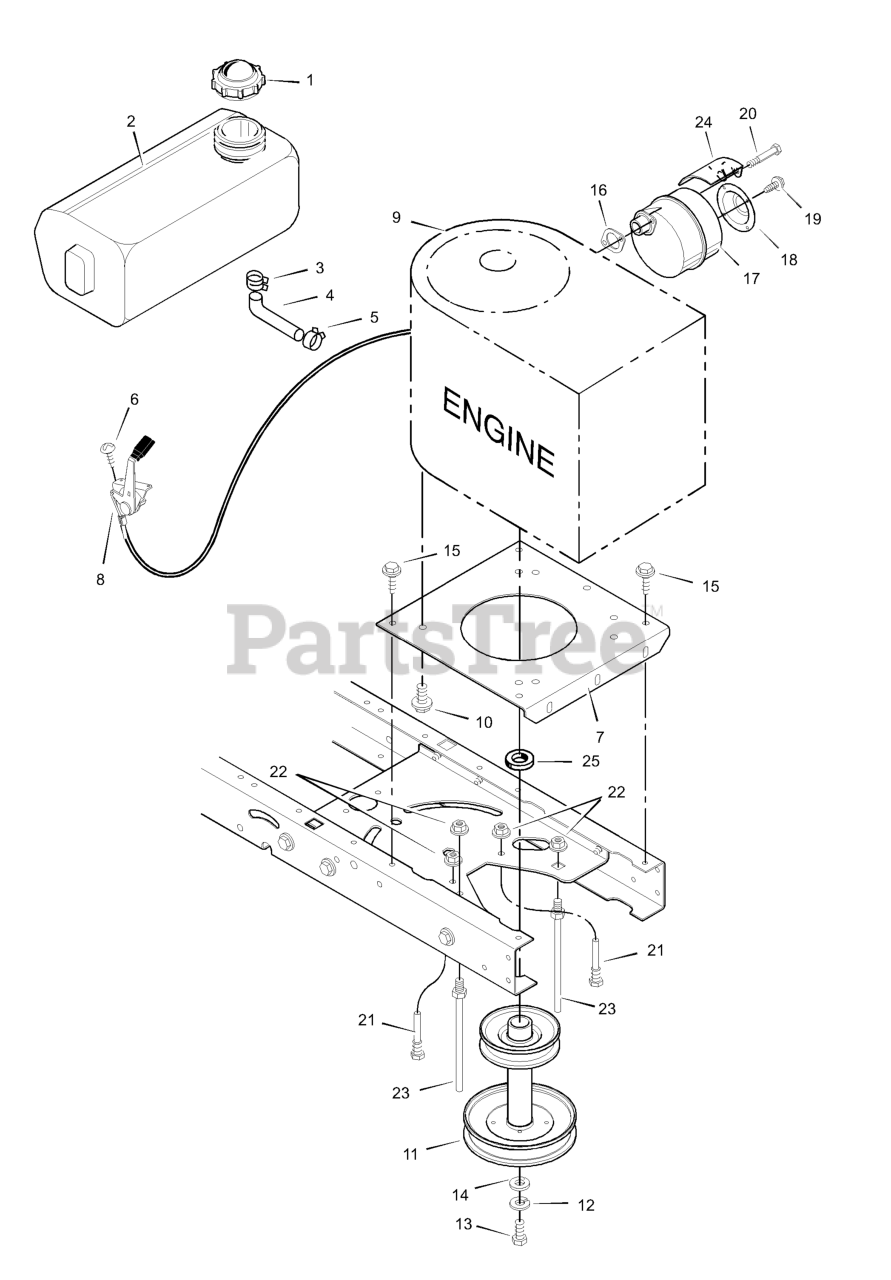

Engine Mount Parts Diagram

  • Title

1

Murray MU92317

Fuel Cap

$

$

Currently unavailable

2

Murray MU690263

Fuel Tank

$

$

Currently unavailable

3

Murray MU95197

Hose Clamp

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

4

Murray MU23717

FUEL LINE (must cut to length)

Note: (Included with Ref. No. 2)

$

$

Currently unavailable

5

Murray MU95197

Hose Clamp

$

$

Currently unavailable

6

Murray MU26X201

SCREW

$

$

Currently unavailable

7

Murray MU94006E700

Plate, Engine

$

$

Currently unavailable

8

Murray MU92371

Throttle Control

$

$

Currently unavailable

9

Engine

$

$

Not available

10

Murray MU25X7

BOLT, Engine Mount

$

$

Currently unavailable

11

Murray MU690439 Z

Stack Pulley Assembly

$

$

Currently unavailable

12

Murray MU19X35

LOCKWASHER

$

$

Currently unavailable

13

Murray MU1X140

BOLT, Hex

$

$

Currently unavailable

14

Murray MU17X170

WASHER

$

$

Currently unavailable

15

Murray MU26X249

SCREW

$

$

Currently unavailable

16

Murray MU91309

Gasket

$

$

Currently unavailable

17

Murray MU91271

Muffler

$

$

Currently unavailable

18

Murray MU94099 Z

Deflector, Muffler

$

$

Currently unavailable

19

Murray MU26X208

SCREW

$

$

Currently unavailable

20

Murray MU1X134

BOLT, Hex

$

$

Currently unavailable

21

Murray MU93349

GUIDE, Belt

$

$

Currently unavailable

22

Murray MU15X79 Z

NUT, Flange

$

$

Currently unavailable

23

Murray MU94066

GUIDE, Belt

$

$

Currently unavailable

24

Murray MU690293

SHIELD, Heat

$

$

Currently unavailable

25

Murray MU93077

SPACER

$

$

Currently unavailable
