3120 XP EPA - Husqvarna Chainsaw (SN: 20180900001 - 20182200000) CARBURETOR Parts Diagram

Chainsaw

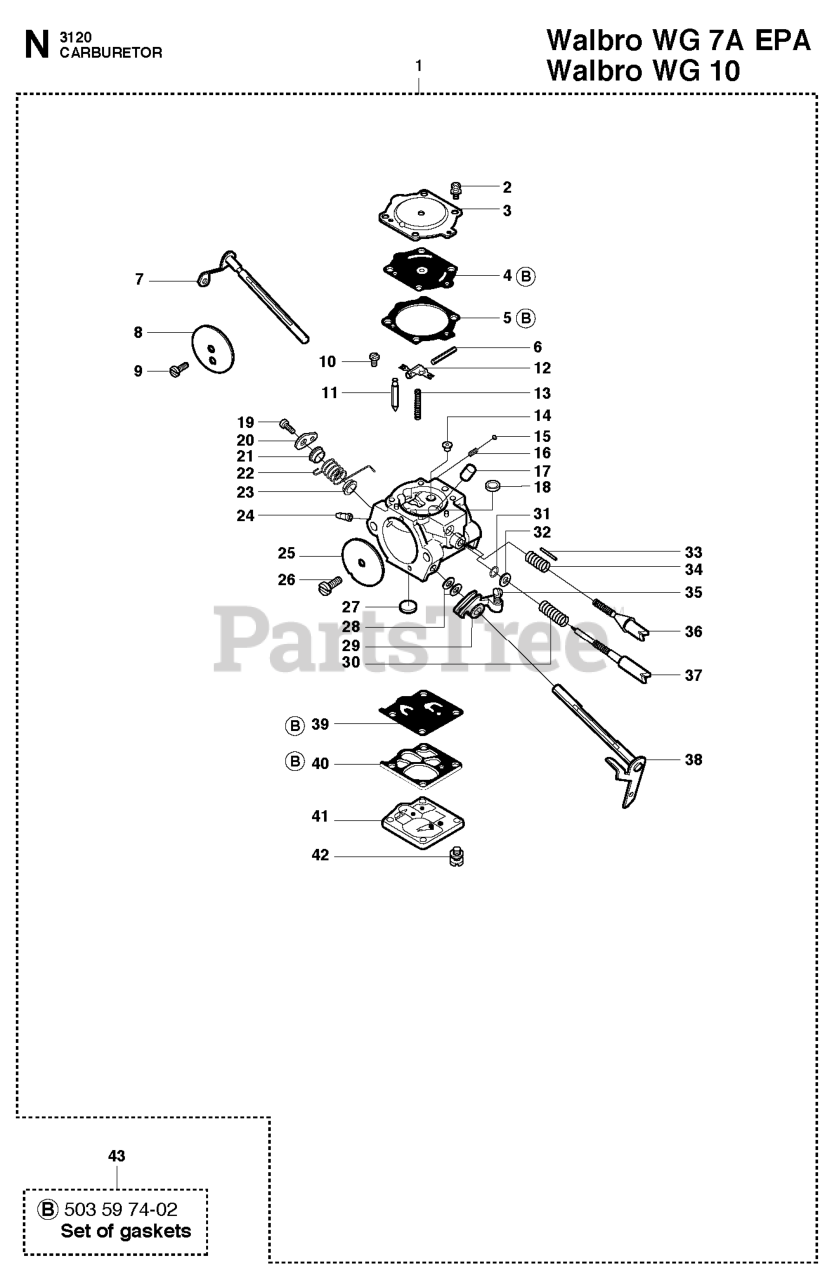

CARBURETOR Parts Diagram

  • Title

9

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

26

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

22

Husqvarna 503525901

SPRING,THROTTLE RETURN

$

$

Not available

12

Husqvarna 505316734

LEVER

$14.99

$

In Stock, Qty 7

0

40

Husqvarna 503117201

GASKET

$13.99

$

In Stock, only 2 left!

0

14

Husqvarna 537218501

NOZZLE ASSY CH.VALVE

$17.99

$

Usually ships in 3-10 days

0

30

Husqvarna 505316737

PRESSURE SPRING

$17.99

$

In Stock, only 2 left!

0

35

Husqvarna 503596501

SCREW

$

$

Not available

28

Husqvarna 506028301

WASHER

$14.99

$

Usually ships in 3-10 days

0

27

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 20+

0

15

Husqvarna 501468501

BALL

$10.99

$

Usually ships in 3-10 days

0

1

Husqvarna 503282001

CARBURETOR

Note: WG10

$227.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503595601

LEVER

$

$

Not available

31

Husqvarna 503595501

O-RING

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505316723

LEVER SPRING

$

$

Not available

29

Husqvarna 503595701

LEVER

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503632801

METERING DIAPHRAGM GSKT
(Superseded to 503597402)

$26.99

$

Usually ships in 3-10 days

0

42

Husqvarna 503117501

SCREW W/ WASHER

$9.49

$

Usually ships in 3-10 days

0

37

Husqvarna 503633201

HI-NEEDLE,CARB

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503525801

CHOKE SHUTTER

$5.83

$

Usually ships in 3-10 days

0

18

Husqvarna 503574201

WELCH PLUG

$9.49

$

In Stock, only 2 left!

0

1

Husqvarna 503281216

CARBURETOR WG7 EPA

Note: WG 7A EPA

$341.99

$

Usually ships in 3-10 days

0

24

Husqvarna 503598401

FUEL NIPPLE-CARB

$

$

Not available

23

Husqvarna 502103101

BUSHING

$11.99

$

Usually ships in 3-10 days

0

16

Husqvarna 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

14

Husqvarna 503976705

MAIN JET

Note: EPA

$5.76

$

Usually ships in 3-10 days

0

39

Husqvarna 503117301

DIAPHRAGM/PUMP

$31.99

$

In Stock, only 1 left!

0

3

Husqvarna 501692801

COVER DIAPH

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503525701

CHOKE SHAFT

$

$

Not available

33

Husqvarna 503526001

ADJ NEEDLE-LO,CARB

$

$

Not available

5

Husqvarna 501467501

GASKET

$11.99

$

In Stock, only 3 left!

0

43

Husqvarna 503597402

DIAPHRAM SET

Note: Set of gaskets

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505316731

PIN

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503976601

JET

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 503632401

SHUTTER-THROTTLE

$34.99

$

Usually ships in 3-10 days

0

21

Husqvarna 502103101

BUSHING

$11.99

$

Usually ships in 3-10 days

0

38

Husqvarna 503595901

THROTTLE SHAFT

$5.99

$

Usually ships in 3-10 days

0

34

Husqvarna 503633101

SPRING-MIX NEEDLE

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503632501

VALVE INLET NEEDLE
(Superseded to 503563401)

$22.99

$

Usually ships in 3-10 days

0

36

Husqvarna 503632901

ADJ SCREW-LO,CARB

$51.99

$

In Stock, only 2 left!

0

41

Husqvarna 503595801

COVER

$

$

Not available

19

Husqvarna 501468701

SCREW

$7.99

$

In Stock, Qty 18

0

32

Husqvarna 503597201

Washer

$

$

Not available

2

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0
