3120 K - Husqvarna Cut-Off Saw (2005-05) Crankcase Parts Diagram

Cut-Off Saw

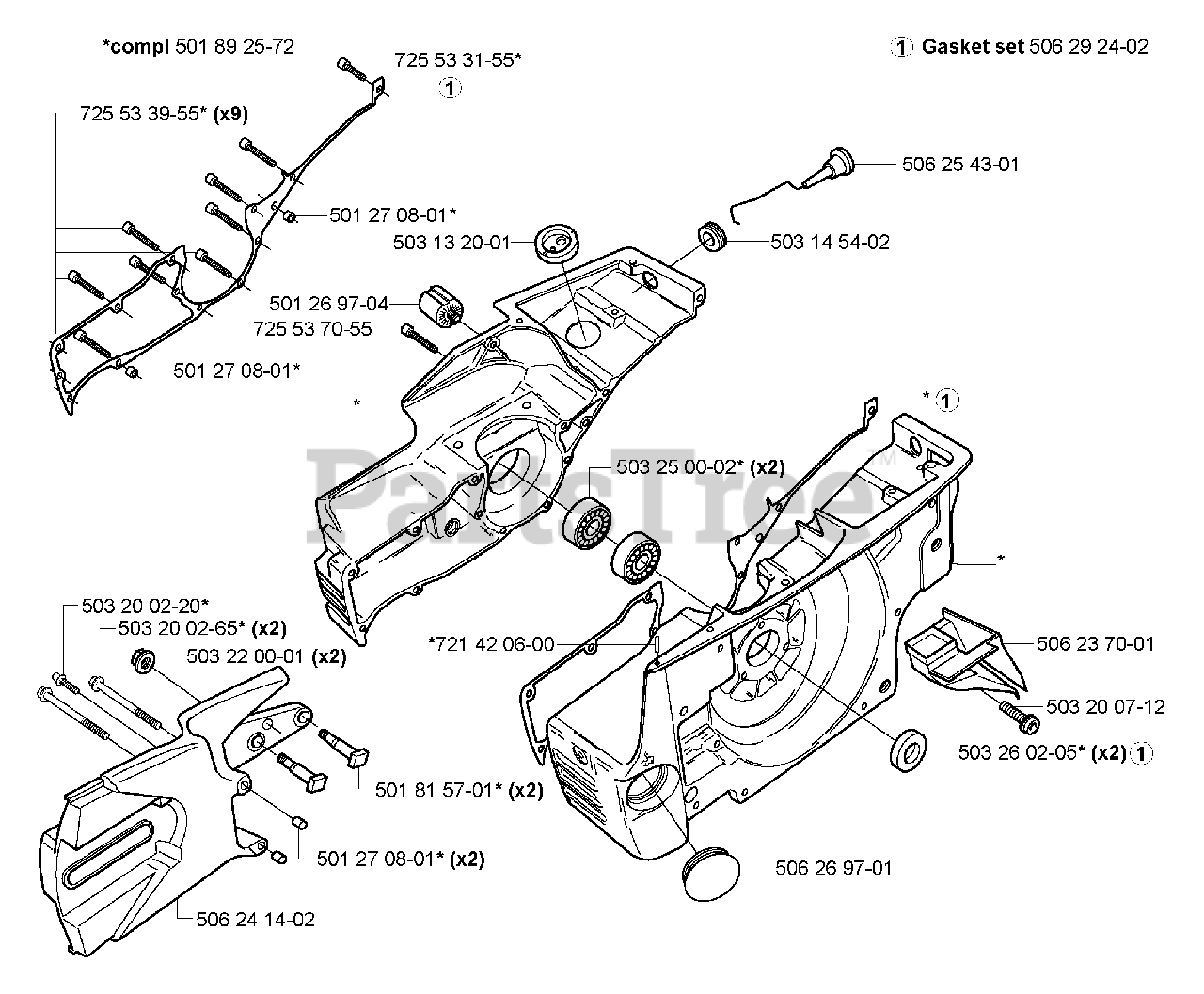

Crankcase Parts Diagram

  • Title

501269704

Husqvarna 501269704

Antivibe Element
(Superseded to 501269705)

$11.99

$

In Stock, only 2 left!

0

501270801

Husqvarna 501270801

Sleeve

$8.49

$

Usually ships in 3-10 days

0

501815701

Husqvarna 501815701

Bolt

$7.49

$

In Stock, only 1 left!

0

501892572

Husqvarna 501892572

Crankcase

$610.45

$

Usually ships in 3-10 days

0

503132001

Husqvarna 503132001

Grommet

$4.99

$

Usually ships in 3-10 days

0

503145402

Husqvarna 503145402

Grommet

$6.49

$

In Stock, only 2 left!

0

503200220

Husqvarna 503200220

Screw

$6.49

$

In Stock, Qty 18

0

503200265

Husqvarna 503200265

Screw

$6.49

$

Usually ships in 3-10 days

0

503200712

Husqvarna 503200712

SCREW

$7.49

$

In Stock, Qty 11

0

503220001

Husqvarna 503220001

Nut M8 Flange

$3.99

$

In Stock, Qty 20+

0

503250002

Husqvarna 503250002

Ball Bearing 6203c3qe6
(Superseded to 738220325)

$26.99

$

In Stock, Qty 7

0

503260205

Husqvarna 503260205

Sealing Ring

$21.99

$

In Stock, only 4 left!

0

506237001

Husqvarna 506237001

Jet

$25.99

$

Usually ships in 3-10 days

0

506241402

Husqvarna 506241402

Arm
(Superseded to 506241404)

$

$

Not available

506254301

Husqvarna 506254301

Choke Control

$19.99

$

In Stock, only 1 left!

0

506269701

Husqvarna 506269701

Cover

$8.93

$

In Stock, only 3 left!

0

506292402

Husqvarna 506292402

Gasket Set

$27.99

$

Usually ships in 3-10 days

0

721420600

Husqvarna 721420600

Pin

$3.49

$

Usually ships in 3-10 days

0

725533155

Husqvarna 725533155

Screw Mc6s 5x20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

725533955

Husqvarna 725533955

Screw Mc6s 5x40
(Superseded to 503200240)

$6.49

$

In Stock, only 2 left!

0

725537055

Husqvarna 725537055

Screw Mc6s 6x20

$10.99

$

In Stock, Qty 20+

0
