3120 - Husqvarna Chainsaw (1990-01) Chain Brake Assembly Parts Diagram

Chainsaw

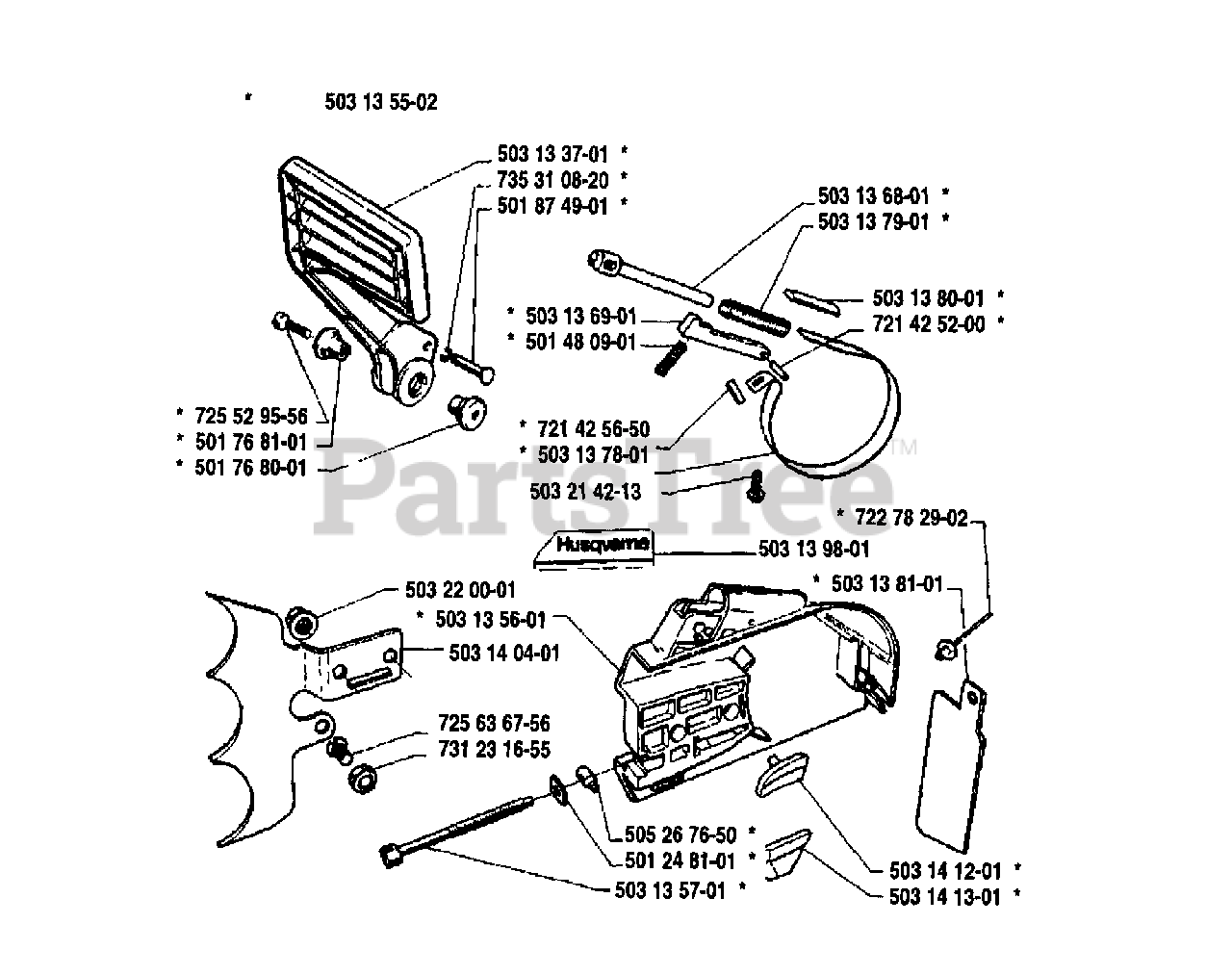

Chain Brake Assembly Parts Diagram

  • Title
503135502

Husqvarna 503135502

CHAIN BRAKE ASSY
(Superseded to 503135503)

$227.99

$

Usually ships in 3-10 days

0

503133701

$

$

Not available

735310820

$4.99

$

In Stock, Qty 20+

0

501874901

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

Usually ships in 3-10 days

0

503136901

$20.99

$

Usually ships in 3-10 days

0

501480901

$

$

Not available

721425650

$3.49

$

Usually ships in 3-10 days

0

503137801

Husqvarna 503137801

BRAKE BAND
(Superseded to 503137802)

$13.99

$

In Stock, only 3 left!

0

503214213

Husqvarna 503214213

SCREW
(Superseded to 586813201)

$2.49

$

Usually ships in 3-10 days

0

725529556

Husqvarna 725529556

SCREW MC6S 4X20
(Superseded to 503202620)

$3.49

$

Usually ships in 3-10 days

0

501768101

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

501768001

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 6

0

503136801

$58.99

$

Usually ships in 3-10 days

0

503137901

$9.49

$

Usually ships in 3-10 days

0

503138001

$5.99

$

Usually ships in 3-10 days

0

721425200

$

$

Not available

722782902

$4.99

$

Usually ships in 3-10 days

0

503139801

Husqvarna 503139801

DECAL
(Superseded to 503624201)

$4.99

$

Usually ships in 3-10 days

0

503138101

Husqvarna 503138101

DUST GUARD

$17.99

$

Usually ships in 3-10 days

0

503141201

Husqvarna 503141201

CHAIN GUIDE

$6.99

$

Usually ships in 3-10 days

0

503141301

Husqvarna 503141301

CHAIN GUIDE

$5.99

$

Usually ships in 3-10 days

0

505267650

Husqvarna 505267650

PULLER UNIT

$12.99

$

Usually ships in 3-10 days

0

501248101

$4.99

$

In Stock, only 3 left!

0

503135701

$6.99

$

In Stock, only 1 left!

0

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503135601

Husqvarna 503135601

CLUTCH COVER

$

$

Not available

503140401

Husqvarna 503140401

FELLING DOG

$38.99

$

Usually ships in 3-10 days

0

725636756

Husqvarna 725636756

SCREW MF6S 6X14
(Superseded to 725636755)

$4.99

$

Usually ships in 3-10 days

0

731231655

Husqvarna 731231655

NUT M6M M6
(Superseded to 503222402)

$5.99

$

In Stock, only 4 left!

0
