312 H (1600155) - AGCO Lawn Tractor, 12hp Rear Axle & Wheels Group - Wheel Weights & Dual Wheels (1505I22) Parts Diagram

Lawn Tractor, 12hp

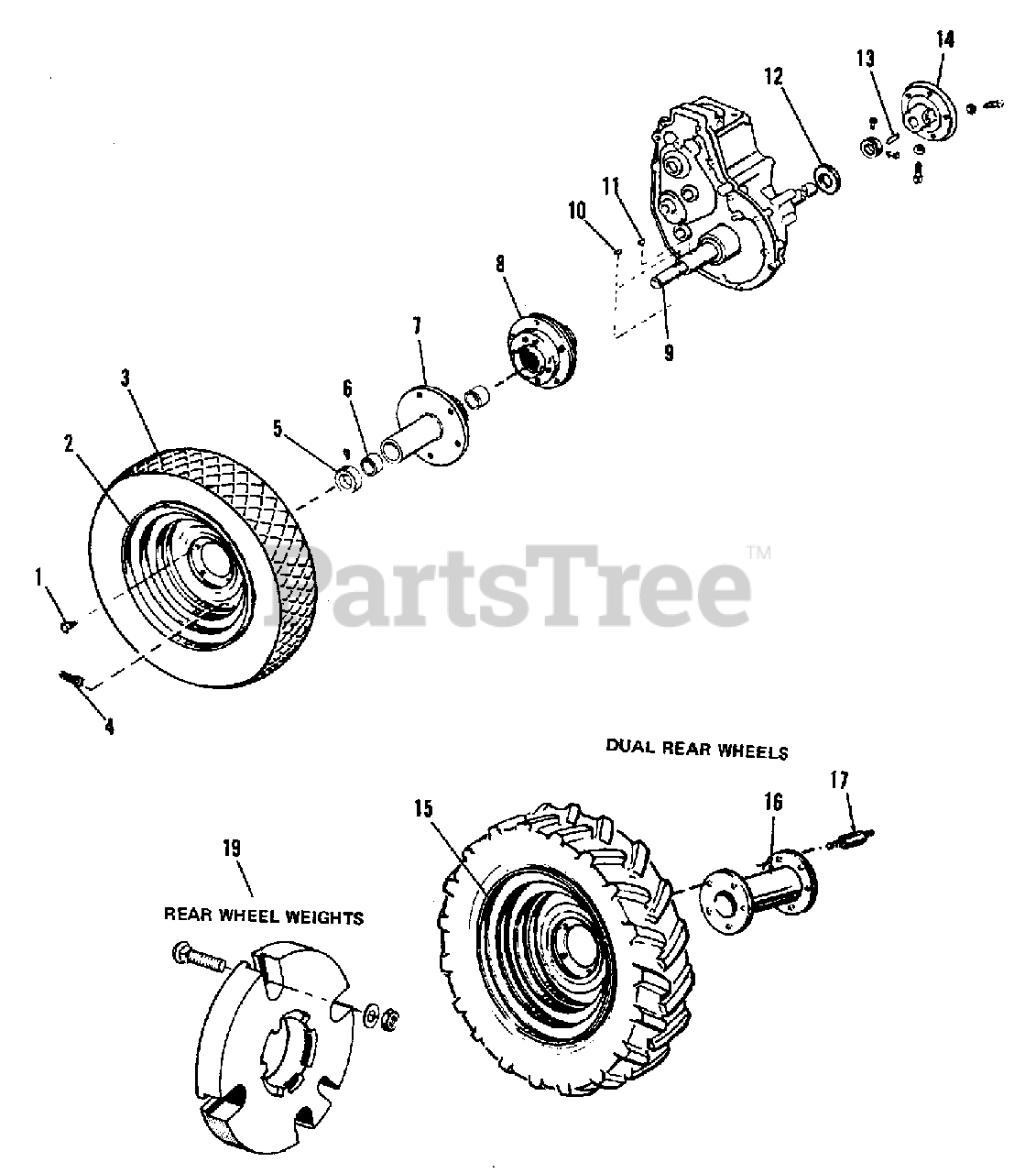

Rear Axle & Wheels Group - Wheel Weights & Dual Wheels (1505I22) Parts Diagram

  • Title

1

Simplicity 2025760

BOLT, Rear Wheel

$

$

Not available

2

Simplicity 1602337

WHEEL, Rear (F/23 x 8. 50-12 Tires)

$

$

Not available

2

Simplicity 1602342

WHEEL, Rear (F23 x 10. 50-12 Tires)

$

$

Not available

3

TIRE (Obtain Locally)

$

$

Not available

3

Simplicity 2026975

TUBE, Tire (F/23 x 8. 50-12 Tires)

$

$

Not available

3

Simplicity 2027356

TUBE, Tire (F23 x 10. 50-12 Tires)

$

$

Not available

4

Simplicity 2026048

VALVE ASSEMBLY, Stem & Cap

$

$

Not available

5

Simplicity 2025525

COLLAR, Axle

$

$

Not available

5

Simplicity 2025824

SETSCREW, Square Head, Cup Pt., 5/16 NC x 3/8, Gr.8

$

$

Not available

6

Simplicity 2025500

BEARING

$

$

Not available

7

Simplicity 2027911

HUB ASSEMBLY, R.H. (Includes Item 6)

$

$

Not available

8

DIFFERENTIAL ASSEMBLY, (See DRIVE TRAIN)

$

$

Not available

9

Simplicity 2027915

AXLE, Rear

$

$

Not available

10

Simplicity 2828356

KEY, Hi-Pro

$

$

Not available

11

Simplicity 2026046

KEY, Drive

$

$

Not available

12

Simplicity 2025230

WASHER

$

$

Not available

13

Simplicity 905858

KEY

$

$

Not available

14

Simplicity 2025605

HUB ASSEMBLY, L.H.

$

$

Not available

14

Simplicity 2830569SM

SETSCREW, Square Head, Cup Pt., 3/8NC x 1-1/2, GR8

$5.99

$

Usually ships in 2-12 days

0

14

Simplicity 2830535SM

SETSCREW, Square Head, Cup Pt., 3/8NC x 1, GR8

$7.49

$

Usually ships in 2-12 days

0

14

Simplicity 2817421

NUT, Jam, 3/8NC

$

$

Not available

15

Simplicity 2025761

WHEEL, Dual Rear

$

$

Not available

16

Simplicity 2025690

ADAPTER, Rear Wheel

$

$

Not available

17

Simplicity 2025689

STUD, Adapter

$

$

Not available

17

Simplicity 913901

NUT, 7/16NF

$

$

Not available

17

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

18

Simplicity 2026107

CAP, Chrome Hub

$

$

Not available

19

WEIGHT, Rear Wheel (See MACHINERY)

$

$

Not available

19

Simplicity 2026109

BOLT, Wheel Weight

$

$

Not available

19

Simplicity 922100

BOLT. 1/2NC x 2-1/2

$

$

Not available

19

Simplicity 2818431

WASHER, 1/2

$

$

Not available

19

Simplicity 2816951

NUT, 1/2NC

$

$

Not available
