312 H (1600048) - AGCO Lawn Tractor, 12hp Transmission Controls Group - Hydrostatic (1505I15) Parts Diagram

Lawn Tractor, 12hp

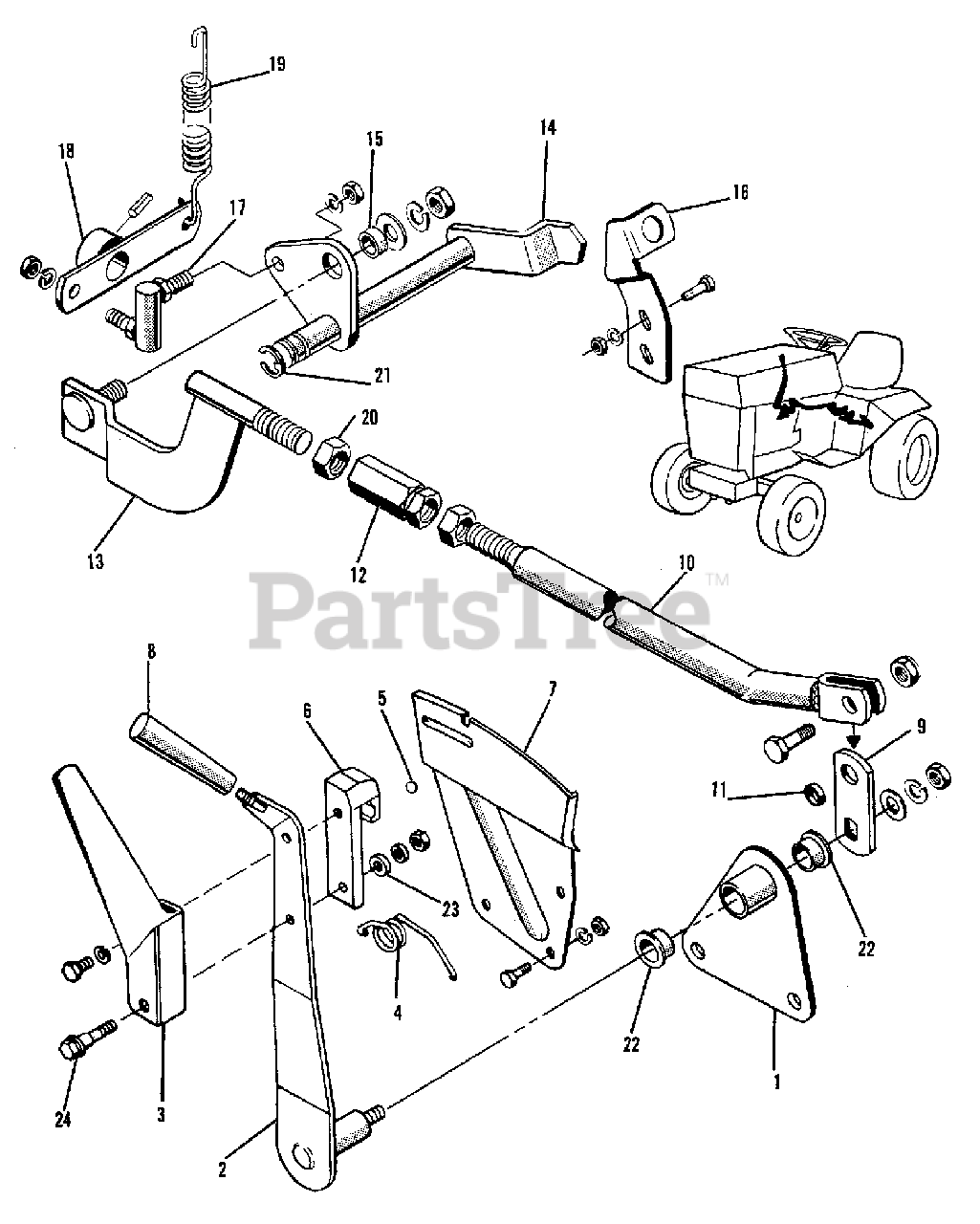

Transmission Controls Group - Hydrostatic (1505I15) Parts Diagram

  • Title

1

Simplicity 1602765

BRACKET ASSEMBLY, Support

$

$

Not available

2

Simplicity 1602908

LEVER ASSEMBLY, Speed Control

$

$

Not available

2

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

2

Simplicity 2816950SM

NUT, 3/8 NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 1603564

HANDLE

$

$

Not available

4

Simplicity 2027492

SPRING

$

$

Not available

5

Simplicity 2027588

BALL, Shift Handle

$

$

Not available

6

Simplicity 2027490

CLAMP, Stop

$

$

Not available

6

Simplicity 2808295

CAPSCREW, 1/4 NC x 1/2

$

$

Not available

6

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

7

Simplicity 1602917

PLATE, Support

$

$

Not available

7

Simplicity 2807727

CAPSCREW, 1/4 NC x 5/8

$

$

Not available

7

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

7

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 923869

WASHER, 9/32 x 5/8 x 18 Ga.

$

$

Not available

8

Simplicity 2164180

HANDLE

$

$

Not available

9

Simplicity 1602460

ARM

$

$

Not available

9

Simplicity 2807731

CAPSCREW, 3/8NC x 1

$

$

Not available

9

Simplicity 2818006

NUT, Lock, 3/8NC

$

$

Not available

10

Simplicity 1602913

ROD ASSEMBLY, Control (Front)

$

$

Not available

10

Simplicity 919423

NUT, 1/2NF

$

$

Not available

11

Simplicity 1604501

SPACER

$

$

Not available

12

Simplicity 1602921

TURNBUCKLE

$

$

Not available

13

Simplicity 1602911

ROD ASSEMBLY, Control (Rear)

$

$

Not available

13

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

13

Simplicity 2816950SM

NUT, 3/8 NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1602924

SHAFT ASSEMBLY, Control

$

$

Not available

15

Simplicity 2027500

SPACER

$

$

Not available

16

Simplicity 2027580

SUPPORT, Switch

$

$

Not available

16

Simplicity 2817397

CAPSCREW, 5/16NC x 3/4

$

$

Not available

16

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1917372SM

NUT, 5/16 NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2027502

JOIN, Doubl-End Ball

$

$

Not available

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2820263SM

NUT, 5/16 NF
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 2027503

LINK ASSEMBLY, Control

$

$

Not available

18

Simplicity 2816937SM

PIN, Spring, 1/4 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 2026495

SPRING, Latch

$

$

Not available

20

Simplicity 1603022

NUT, 1/2NF

$

$

Not available

21

Simplicity 2827793SM

E-RING, (5/8 Diameter Shaft)
(Superseded to 703977)

$4.99

$

In Stock, Qty 15

0

22

Simplicity 1663114SM

BUSHING, Flanged

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 1603503

SPACER

$

$

Not available

24

Simplicity 2027494

BOLT, Shoulder

$

$

Not available

24

Simplicity 2817377

WASHER, 1/4

$

$

Not available

24

Simplicity 2818004

NUT, 1/4NC

$

$

Not available
