312 D (1600154) - AGCO Lawn Tractor, 12hp Cultivator Group - Spring Tooth Harrow (1505I43) Parts Diagram

Lawn Tractor, 12hp

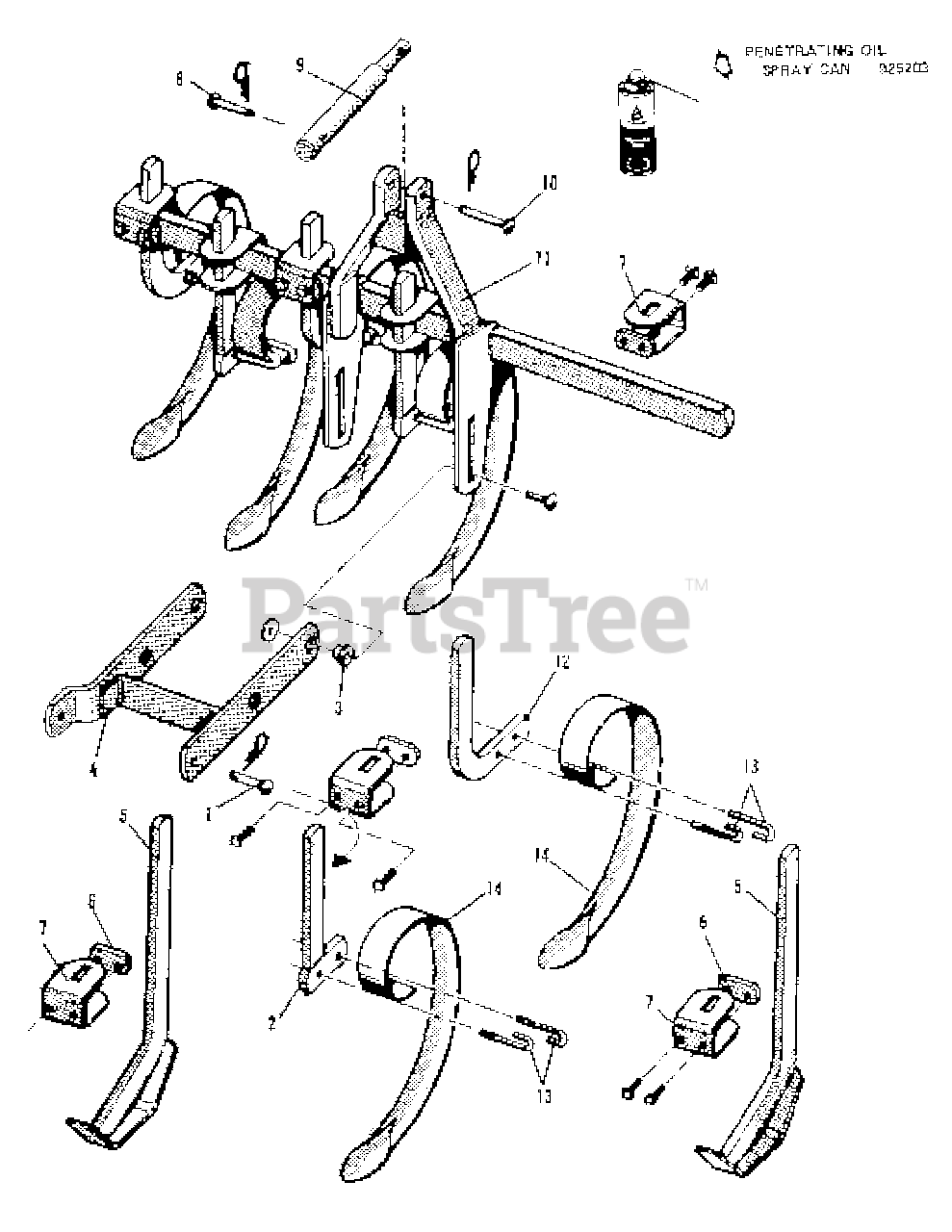

Cultivator Group - Spring Tooth Harrow (1505I43) Parts Diagram

  • Title

1

Simplicity 2026010

PIN, Round Head

$

$

Not available

1

Simplicity 2025739

PIN, Quick

$

$

Not available

2

Simplicity 2026899

STANDARD ASSEMBLY, Straight

$

$

Not available

3

Simplicity 2026874

SPACER

$

$

Not available

3

Simplicity 922098

CARRIAGE BOLT, 7/16NC x 1-1/2

$

$

Not available

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

3

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

4

Simplicity 1606301

ARM ASSEMBLY, Drawbar

$

$

Not available

5

Simplicity 2026877

SHOE ASSEMBLY, Weld

$

$

Not available

6

Simplicity 2025756

NUT, Special

$

$

Not available

7

Simplicity 2025769

CLAMP, Shank

$

$

Not available

7

Simplicity 2025825

SETSCREW

$

$

Not available

8

Simplicity 2025429

PIN

$

$

Not available

8

Simplicity 2025739

PIN, Quick

$

$

Not available

9

Simplicity 1606299

BAR, Lift

$

$

Not available

10

Simplicity 2026134

PIN

$

$

Not available

10

Simplicity 2025739

PIN, Quick

$

$

Not available

11

Simplicity 2026873

BAR ASSEMBLY, Rear Tool

$

$

Not available

12

Simplicity 2026898

STANDARD, Adjusting

$

$

Not available

13

Simplicity 2026900

BOLT, Spring Tooth

$

$

Not available

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 2026901

TOOTH, Spring

$

$

Not available
