312 D (1600154) - AGCO Lawn Tractor, 12hp 42" Grader Blade Group - Center Mounted (1505I58) Parts Diagram

Lawn Tractor, 12hp

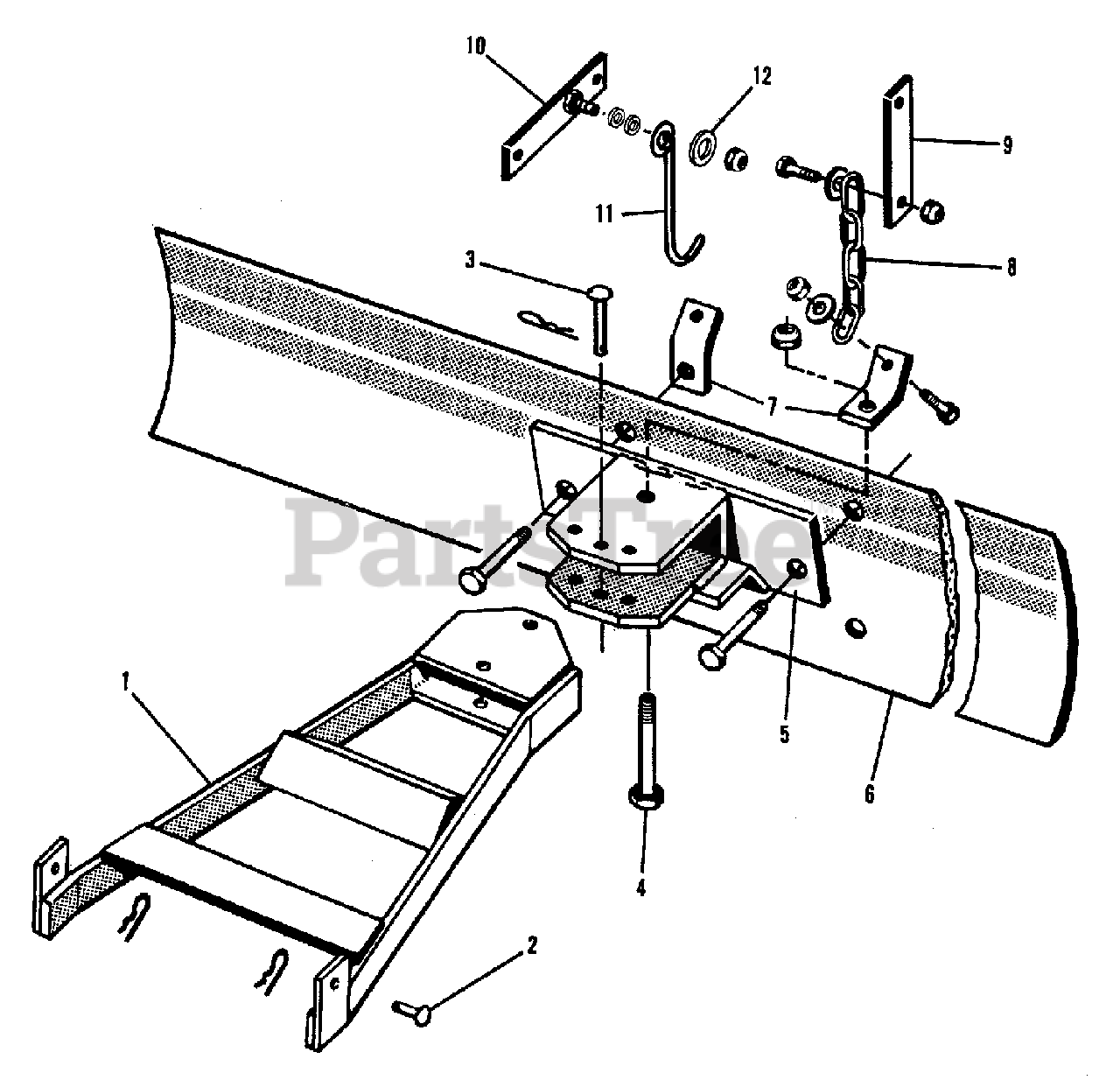

42" Grader Blade Group - Center Mounted (1505I58) Parts Diagram

  • Title

1

Simplicity 2025339

DRAWBAR ASSEMBLY, Grader

$

$

Not available

2

Simplicity 2026849

PIN, Round Head

$

$

Not available

2

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 2025750

PIN, King

$

$

Not available

3

Simplicity 2025719

PIN, Quick

$

$

Not available

4

Simplicity 2822118

CAPSCREW, 5/8NC x 3

$

$

Not available

4

Simplicity 2823353

NUT, 5/8NC, Lock

$

$

Not available

5

Simplicity 2025338

HITCH ASSEMBLY, Grader

$

$

Not available

5

Simplicity 919375

CAPSCREW, 5/8NC x 2

$

$

Not available

5

Simplicity 2817373

LOCKWASHER, 5/8

$

$

Not available

5

Simplicity 2815726

NUT, 5/8NC

$

$

Not available

6

Simplicity 2025336

BLADE, 42" Grader

$

$

Not available

7

Simplicity 1606307

LINK, Lift

$

$

Not available

8

Simplicity 2025331

CHAIN ASSEMBLY, Lift

$

$

Not available

8

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

8

Simplicity 1924940SM

WASHER, 3/8, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 2823428

NUT, 3/8NC, Lock

$

$

Not available

9

Simplicity 2027965

BRACKET, Lift

$

$

Not available

10

Simplicity 1606305

BRACKET ASSEMBLY, Transport

$

$

Not available

10

Simplicity 2817397

CAPSCREW, 5/16NC x 3/4

$

$

Not available

10

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 2817642

WASHER, 5/16, Plain

$

$

Not available

10

Simplicity 2823362

NUT, 5/16NC, Lock

$

$

Not available

11

Simplicity 2027966

HOOK, Transport

$

$

Not available

12

Simplicity 2026575

WASHER, Special Nylon

$

$

Not available
