312 D (1600047) - AGCO Lawn Tractor, 12hp Front P.T.O. Group - Manual (1505I17) Parts Diagram

Lawn Tractor, 12hp

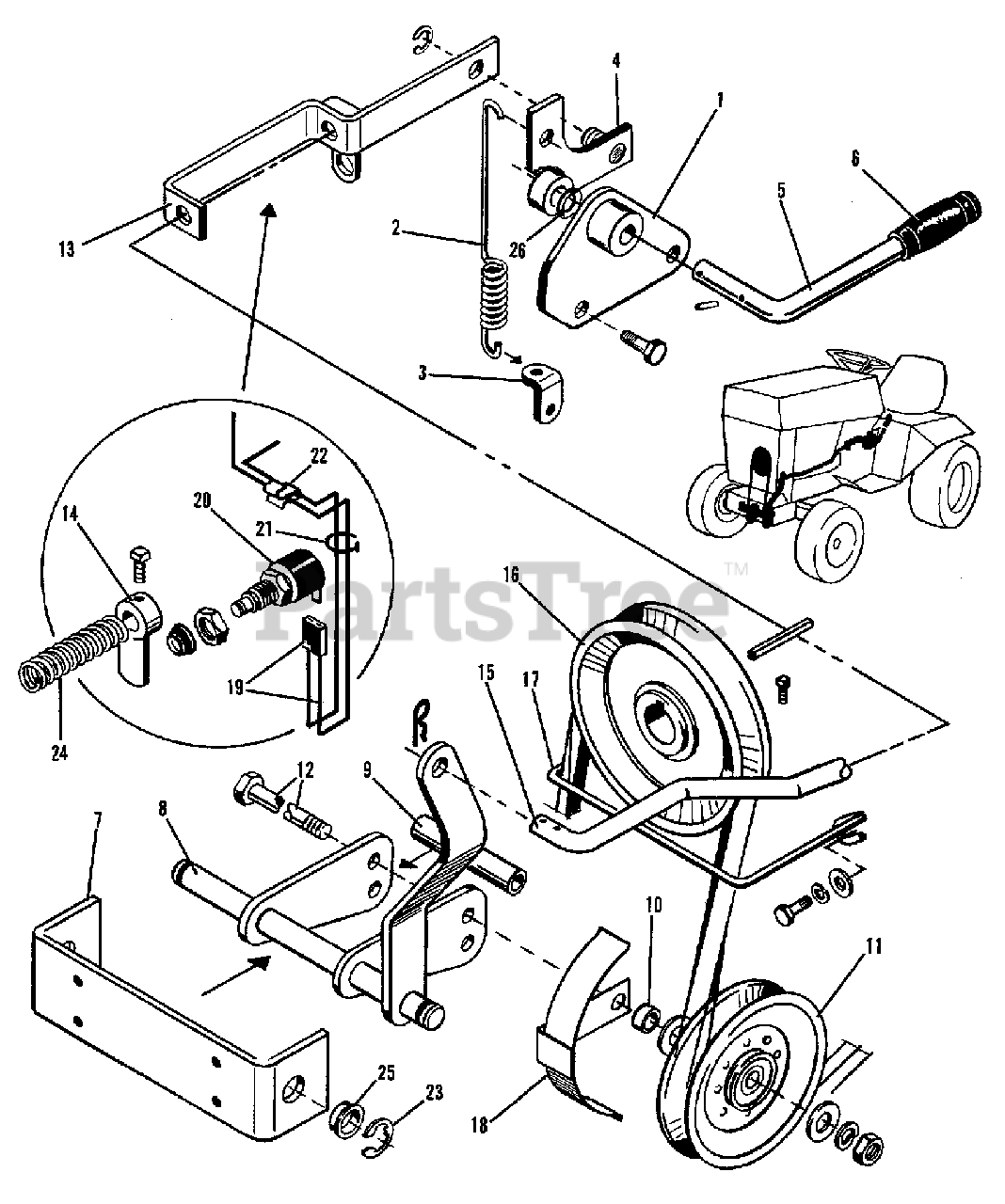

Front P.T.O. Group - Manual (1505I17) Parts Diagram

  • Title

1

Simplicity 1607636

BRACKET ASSEMBLY, P.T.O Clutch Arm

$

$

Not available

2

Simplicity 1603348

SPRING, Extension

$

$

Not available

3

Simplicity 1604273

CLIP, Spring

$

$

Not available

4

Simplicity 1603345

ARM ASSEMBLY, P.T.O. Clutch

$

$

Not available

4

Simplicity 2158399SM

RING, Snap
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

5

Simplicity 1603976

LEVER, Clutch, P.T.O.

$

$

Not available

5

Simplicity 2816001SM

PIN, Roll, 3/16 x 1

$4.49

$

In Stock, Qty 11

0

6

Simplicity 1602414

GRIP, Handle

$

$

Not available

7

Simplicity 1602818

BRACKET, Idler Support

$

$

Not available

7

Simplicity 2821332

CAPSCREW, 5/16 NC x 3/4

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, Hex, 5/16 NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1602813

CLEVIS ASSEMBLY, P.T.O. Idler

$

$

Not available

9

Simplicity 1602817

SPACER, Idler

$

$

Not available

10

Simplicity 2025593

SPACER

$

$

Not available

11

Simplicity 2026320

PULLEY, Idler

$

$

Not available

12

Simplicity 925313

CAPSCREW, 3/8 NC x 6-1/4

$

$

Not available

12

Simplicity 1924940SM

WASHER, Plain, 7/16 x 1 x 14 Ga.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

12

Simplicity 2816950SM

NUT, 3/8 NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

13

Simplicity 1602825

GUIDE ASSEMBLY, P.T.O. Control Rod.

$

$

Not available

14

Simplicity 1602823

STOP ASSEMBLY, P.T.O. Control Rod.

$

$

Not available

14

Simplicity 2828804

SETSCREW, 1/4 NC x 3/8, GR8

$

$

Not available

15

Simplicity 1602819

ROD, P.T.O. Control

$

$

Not available

16

Simplicity 1603899

SHEAVE, Front P.T.O.

$

$

Not available

16

Simplicity 2805856SM

KEY Parallel, 1/4 x 1/4 x 1-1/2

$3.49

$

In Stock, only 2 left!

0

17

Simplicity 1604001

GUIDE, Belt (Front)

$

$

Not available

17

Simplicity 2821965

CAPSCREW, 3/8 NC x 3/4

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

17

Simplicity 1924940SM

WASHER, Plain, 7/16 x 1 x 14 Ga.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1604208

STOP ASSEMBLY, Belt

$

$

Not available

19

*LEAD, Manual P.T.O. Interlock Switch

$

$

Not available

20

*SWITCH, Momentary

$

$

Not available

20

*NUT, Hex, Special

$

$

Not available

20

*BOOT, Rubber

$

$

Not available

21

*TIE, Cable

$

$

Not available

22

*CLIP, Cable

$

$

Not available

23

Simplicity 2827793SM

RING, Snap
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

24

Simplicity 1603998

SPRING, Compression

$

$

Not available

24

Simplicity 2824359

WASHER, 17/32 x 1 x 20 Ga.

$

$

Not available

24

Simplicity 1918196SM

PIN, Quick
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 1663114SM

BUSHING, Nylon

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 1602413

WASHER, Spherical

$

$

Not available
