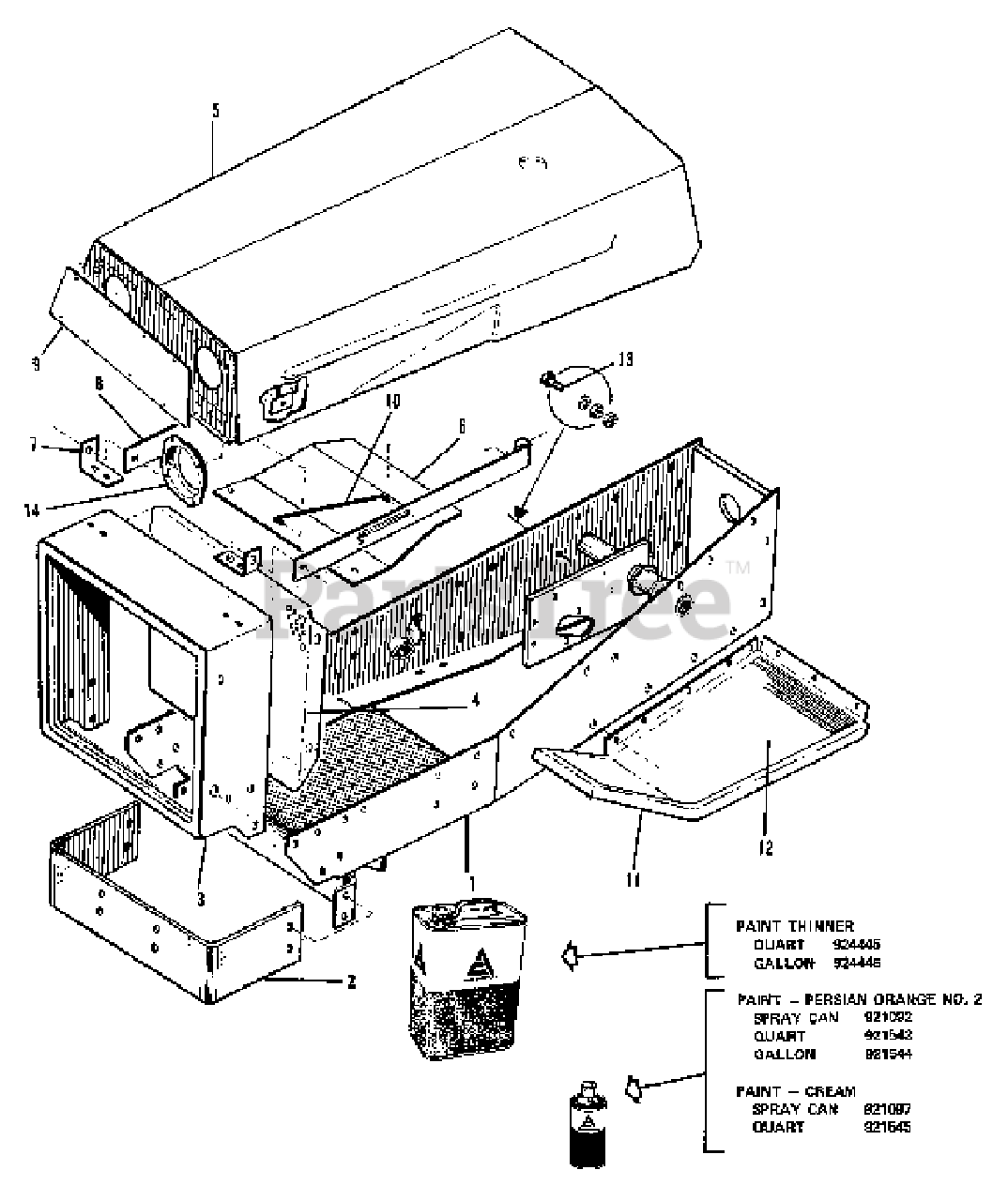

312 D (1600047) - AGCO Lawn Tractor, 12hp Frame Group - Front - Grille & Hood (1505I37) Parts Diagram

Lawn Tractor, 12hp

Frame Group - Front - Grille & Hood (1505I37) Parts Diagram

  • Title

1

Simplicity 1601870

FRAME ASSEMBLY, Main

$

$

Not available

2

Simplicity 1602433

BUMPER, Front

$

$

Not available

2

Simplicity 2819357

CAPSCREW, Hex Head, 3/8 NC x 7/8

$

$

Not available

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

2

Simplicity 2816950SM

NUT, 3/8 NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 1603225

HOUSING ASSEMBLY, Grille

$

$

Not available

3

Simplicity 2817397

CAPSCREW, Hex Head, 5/16 x 3/4

$

$

Not available

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1917372SM

NUT, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2819381

WASHER, Plain, 11/32 x 1 x 10 GA

$

$

Not available

4

Simplicity 1603275

INSERT, GRILLE

$

$

Not available

4

Simplicity 2807727

CAPSCREW, Hex Head, 1/4 NC x 5/8

$

$

Not available

4

Simplicity 492753

WASHER, 17/64 x 1 x 16 GA

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 1/4
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

4

Simplicity 2816622SM

NUT, 1/4 NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1603185

HOOD ASSEMBLY

$

$

Not available

6

Simplicity 1603986

SHIELD, Engine

$

$

Not available

7

Simplicity 1603214

BRACKET, Grille Brace

$

$

Not available

7

Simplicity 2819318

CAPSCREW, 5/16 NC x 5/8

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, 5/16 NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1603220

BRACE, Grille R.H. (Breakerless Ignition System)

$

$

Not available

8

Simplicity 1606851

BRACE, Grille R.H. (Breaker Point Ignition System)

$

$

Not available

8

Simplicity 1603219

BRACE, Grille L.H.

$

$

Not available

8

Simplicity 2817397

CAPSCREW, 5/16 NC x 3/4

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372SM

NUT, 5/16 NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2817642

WASHER, 5/16

$

$

Not available

9

Simplicity 1602482

COVER, HEADLIGHT (All Models Except 312-H, 314-D & 314-H)

$

$

Not available

9

Simplicity 1603815

SCREW, Round Head #10 NC x 3/8

$

$

Not available

9

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

9

Simplicity 2816621

NUT, #10 NC

$

$

Not available

10

Simplicity 1603208

ROD, HOOD LIFT

$

$

Not available

10

Simplicity 2821319SM

WASHER, 17/64 x 5/8 x 18 Ga.
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 919313

PIN, Cotter 3/32 x 1/2

$

$

Not available

11

Simplicity 1602498

FOOT REST, R.H.

$

$

Not available

11

Simplicity 1602499

FOOT REST, L.H.

$

$

Not available

11

Simplicity 2819318

CAPSCREW, 5/16 NC x 5/8

$

$

Not available

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

NUT, 5/16 NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1603293

PAD, Foot, L.H.

$

$

Not available

12

Simplicity 1603292

PAD, Foot, R.H.

$

$

Not available

13

Simplicity 2816019

CAPSCREW, 1/4 NC x 3/4

$

$

Not available

13

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

13

Simplicity 2816622SM

NUT, Hex, 1/4 NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2823358

NUT, Lock, 1/4 NC

$

$

Not available

14

Simplicity 1602740

BRACKET, HEADLIGHT SUPPORT (312-H & 314-H Models Only)

$

$

Not available

14

Simplicity 1603815

SCREW, Round Head, #10 NC x 3/8

$

$

Not available

14

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

14

Simplicity 2816621

NUT, #10 NC

$

$

Not available
