312 D (1600047) - AGCO Lawn Tractor, 12hp Clutch & Brake Group - Hydrostatic Transmission (1505I24) Parts Diagram

Lawn Tractor, 12hp

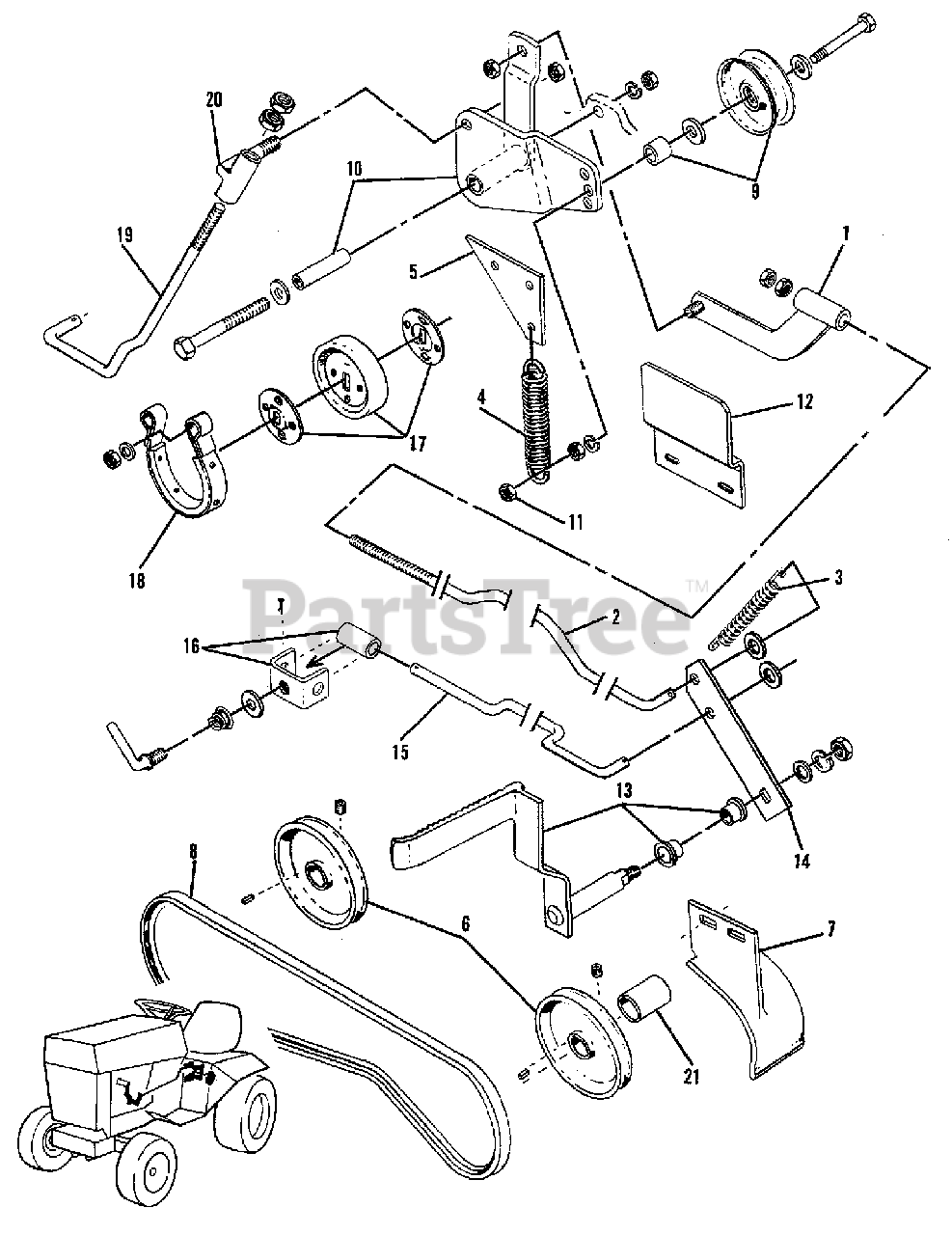

Clutch & Brake Group - Hydrostatic Transmission (1505I24) Parts Diagram

  • Title

1

Simplicity 1602958

GUIDE ASSEMBLY, Rod

$

$

Not available

1

Simplicity 2823362

NUT, Lock, 5/16NC

$

$

Not available

2

Simplicity 1602959

ROD, Clutch and Brake

$

$

Not available

2

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 2817642

WASHER, 5/16

$

$

Not available

3

Simplicity 2026529

TENSION SPRING, Clutch

$

$

Not available

4

Simplicity 2025686

SPRING, Idler Pulley

$

$

Not available

5

Simplicity 1603000

BRACKET, Spring

$

$

Not available

5

Simplicity 2819318

CAPSCREW, 5/16 NC x 5/8

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

*PULLEY, Half

$

$

Not available

6

*KEY

$

$

Not available

6

*SETSCREW

$

$

Not available

7

Simplicity 1603792

GUARD, Belt

$

$

Not available

7

Simplicity 2821158

BOLT, 5/16NC x 1

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2817642

WASHER, 5/16

$

$

Not available

7

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

8

*

$

$

Not available

9

Simplicity 2027377

PULLEY, Idler

$

$

Not available

9

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 2026002

SPACER

$

$

Not available

9

Simplicity 2819362

CAPSCREW, 3/8NC x 2-1/4

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 1604295

LEVER ASSEMBLY, Idler

$

$

Not available

10

Simplicity 1604290

SPACER

$

$

Not available

10

Simplicity 2818430

WASHER, 7/16

$

$

Not available

10

Simplicity 2026893

CAPSCREW, 7/16NC x 3-3/4

$

$

Not available

10

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

10

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

11

Simplicity 2823428

NUT, Lock, 3/8 NC

$

$

Not available

12

Simplicity 1604288

PLATE, Guide

$

$

Not available

13

Simplicity 1602458

PEDAL ASSEMBLY, Foot

$

$

Not available

13

Simplicity 1663114SM

BUSHING, Flange

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

14

Simplicity 1602480

ARM, Foot Pedal

$

$

Not available

15

Simplicity 1602929

ROD, Parking Brake

$

$

Not available

15

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

15

Simplicity 2817642

WASHER, 5/16

$

$

Not available

15

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

16

Simplicity 2027035

BRACKET ASSEMBLY, Parking Brake

$

$

Not available

16

Simplicity 2026533

SPACER

$

$

Not available

16

Simplicity 2027036

LOCK, Parking brake

$

$

Not available

16

Simplicity 2818430

WASHER, 7/16

$

$

Not available

16

Simplicity 2026027

SPRING, Idler Pulley

$

$

Not available

17

Simplicity 2027575

DRUM, Brake

$

$

Not available

17

Simplicity 2026535

WASHER, Special

$

$

Not available

17

Simplicity 2818430

WASHER, 7/16

$

$

Not available

17

Simplicity 2818007

NUT, Lock, 7/16NC

$

$

Not available

18

Simplicity 2027456

BAND ASSEMBLY, Brake

$

$

Not available

18

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 2819361

CAPSCREW, 3/8NC x 1-3/4

$

$

Not available

19

Simplicity 2027459

ROD, Brake

$

$

Not available

19

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 2818447

PIN, Cotter, 3/32 x 3/4

$

$

Not available

20

Simplicity 2027460

GUIDE ASSEMBLY, Rod

$

$

Not available

20

Simplicity 2818005

NUT, Lock, 5/16NC

$

$

Not available

21

*

$

$

Not available

22

Simplicity 2818212

CAPSCREW, 7/16NC x 1

$

$

Not available

22

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available
