312 D (1600047) - AGCO Lawn Tractor, 12hp 42" Snow Plow & Dozer Blade Group (1505I59) Parts Diagram

Lawn Tractor, 12hp

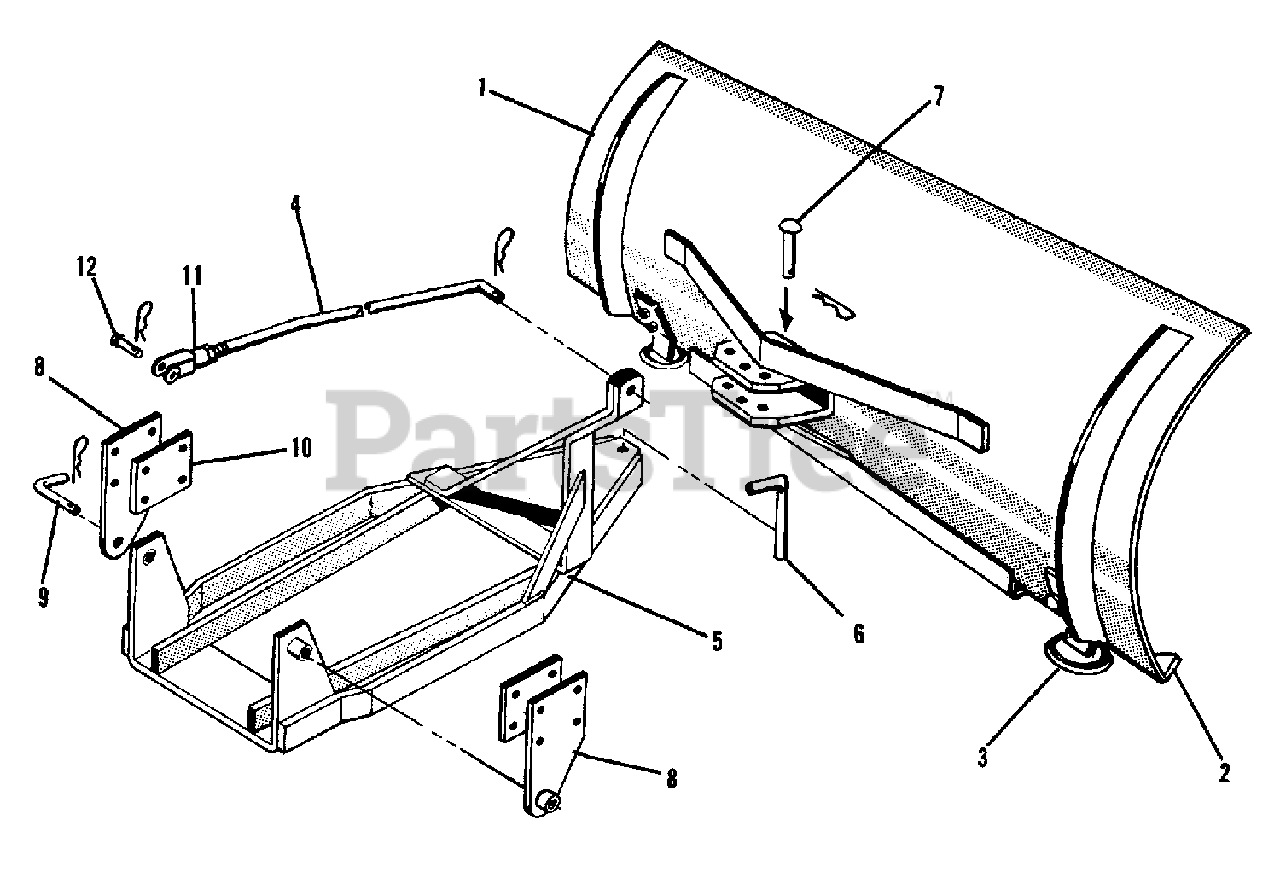

42" Snow Plow & Dozer Blade Group (1505I59) Parts Diagram

  • Title

1

Simplicity 2025334

BLADE ASSEMBLY, 42"

$

$

Not available

2

Simplicity 2025332

PLATE, Wear

$

$

Not available

2

Simplicity 2822110

BOLT, 3/8NC x 3/4

$

$

Not available

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

2

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 2025330

SHOE ASSEMBLY, Blade

$

$

Not available

3

Simplicity 2823232

BOLT, 3/8NC x 1

$

$

Not available

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

3

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1604659

ROD, Lift

$

$

Not available

4

Simplicity 2026902

PIN, Quick

$

$

Not available

4

Simplicity 2819262

NUT, 1/2NF, Jam

$

$

Not available

5

Simplicity 1604626

FRAME ASSEMBLY, Push Bar

$

$

Not available

6

Simplicity 1678549SM

PIN, Pivot

$13.99

$

Usually ships in 2-12 days

0

7

Simplicity 1603602SM

PIN, King

$9.99

$

Usually ships in 2-12 days

0

7

Simplicity 2026902

PIN, Quick

$

$

Not available

8

Simplicity 1604661

HITCH ASSEMBLY, L.H.

$

$

Not available

8

Simplicity 1604662

HITCH ASSEMBLY, R.H.

$

$

Not available

9

Simplicity 1604689

PIN, Hitch

$

$

Not available

9

Simplicity 2026902

PIN, Quick

$

$

Not available

10

Simplicity 1604665

PLATE, Nut

$

$

Not available

10

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Simplicity 2027227

YOKE, Rod

$

$

Not available

12

Simplicity 2025661

PIN, Yoke

$

$

Not available

12

Simplicity 2026902

PIN, Quick

$

$

Not available
