312-980I000 - MTD Snow Thrower (1992) Gearbox Parts Diagram

Snow Thrower

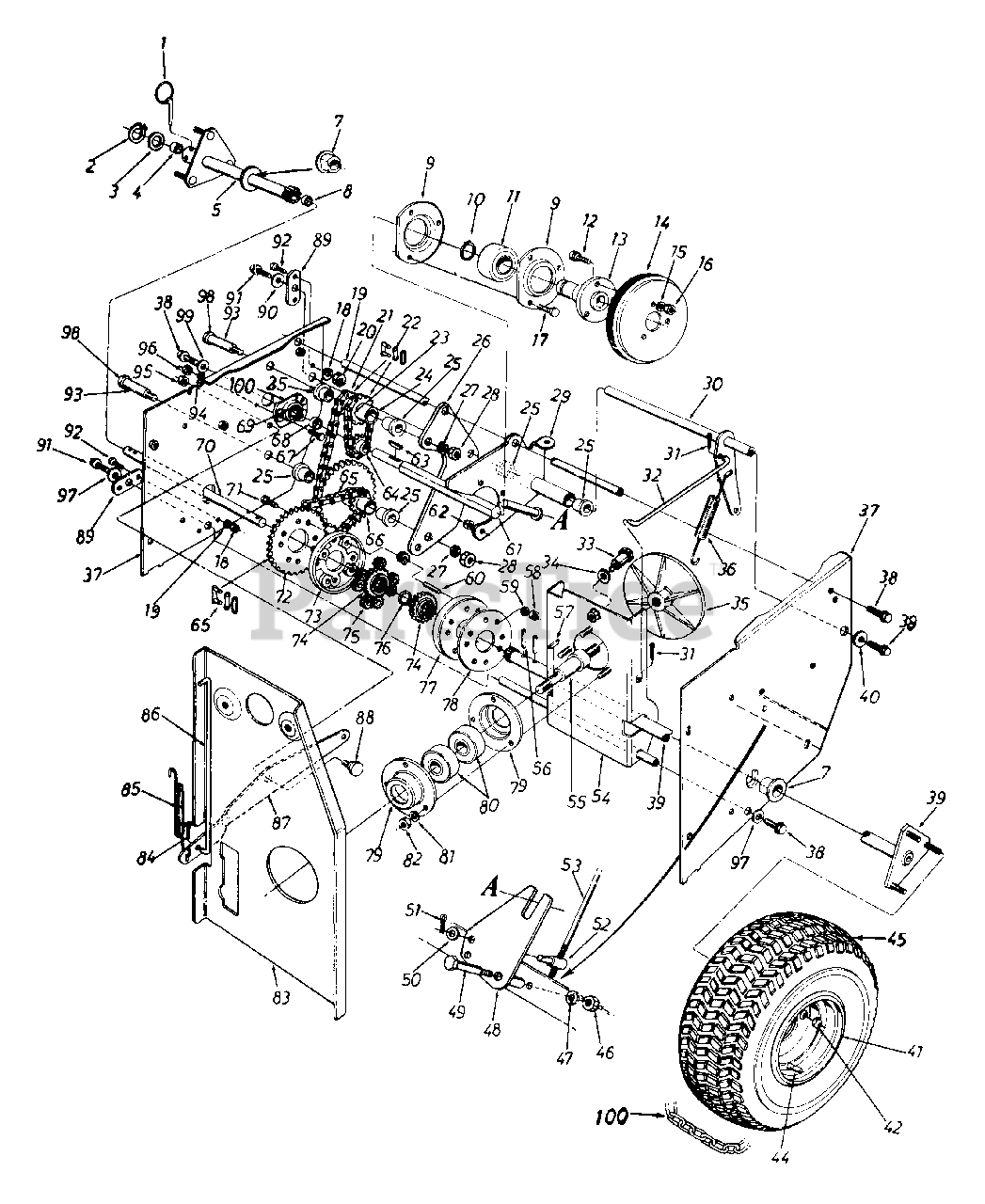

Gearbox Parts Diagram

  • Title

1

MTD 714-0143

Klick Pin 1/4" Dia. x 1.75"
(Superseded to 714-0143A)

$6.49

$

In Stock, only 4 left!

0

2

MTD 716-0115

Snap Ring .625" Shaft
(Superseded to 916-0115)

$

$

Not available

3

MTD 736-0187

Fl-Wash. .62" I.D. x 1.25"

$4.49

$

In Stock, Qty 20+

0

4

MTD 741-0305

Sleeve Brg.

Note: (Must Be Drilled After Press Fit)

$

$

Not available

5

MTD 05637

Differential Tubing Ass'y.- R.H.

$

$

Currently unavailable

7

MTD 741-0192

Flange Brg. w/Flats 1" I.D.
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

8

MTD 741-0305

Sleeve Brg.

$

$

Not available

9

MTD 05794

Bearing Housing

$

$

Not available

10

MTD 716-0102

Snap Ring - 1.00" Dia.

$5.49

$

In Stock, Qty 20+

0

11

MTD 741-0301

Ball Brg. .25MM x 52MM x 15MM Thk.
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

12

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

13

MTD 748-0281

Friction Wheel Adapter

$

$

Not available

14

MTD 050804

Friction Wheel Ass'y.

$

$

Currently unavailable

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

18

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

19

MTD 738-0278

Sliding Support Axle

$

$

Not available

20

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

21

MTD 713-0270

#41 Chain - 1/2" Pitch x 43 Links

$

$

Not available

22

MTD 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

23

MTD 713-0199

#41 Chain - 1/2" Pitch x 19 Links

$

$

Not available

MTD 713-0723

Master Link
(Superseded to 913-0723)

$

$

Not available

24

MTD 713-0193

9 and 14 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0193)

$81.99

$

Usually ships in 3-6 days

0

25

MTD 748-0184

Flange Brg. .630" I.D.

$7.49

$

Usually ships in 3-6 days

0

26

MTD 05520

Chain Support Brkt.

Variations

MTD 05520-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 6

0

28

MTD 712-0116

Hex L-Jam Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

29

MTD 784-5137

Sliding Brkt. Ass'y.

$

$

Not available

30

MTD 05500

Drive Clutch Brkt. Ass'y.

$

$

Currently unavailable

31

MTD 714-0104

Inter. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

32

MTD 747-0150

Drive Clutch Rod 7.38" Lg.

$

$

Not available

33

MTD 738-0144

Shld. Bolt
(Superseded to 938-0144)

$

$

Not available

34

MTD 736-0105

Bell-Wash. .44" I.D. x.88"

$4.49

$

In Stock, Qty 20+

0

35

MTD 717-0302

Aluminum Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

36

MTD 732-0121

Extension Spring 4.31" Lg.
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

37

MTD 784-5129B

Frame Ass'y.

$

$

Currently unavailable

38

MTD 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 7

0

39

MTD 05820B

Differential Shaft Ass'y.

$

$

Not available

40

MTD 736-0264

Fl-Wash. .345" I.D. x .75"

$6.99

$

In Stock, only 2 left!

0

41

MTD 09262

Rim Only - 16"

$

$

Not available

42

MTD 712-0193

Cone Nut 3/8-24 Thd.

$

$

Not available

44

MTD 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

45

MTD 734-1526

Wheel Ass'y. Comp. 16 x 6.5

$

$

Not available

MTD 734-1525

Tire Only 16 x 6.5

$162.99

$

In Stock, only 2 left!

0

46

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

47

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

48

MTD 784-5133

Shift Linkage Brkt. Ass'y.

Variations

MTD 784-5133-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 738-0129

Shld. Bolt .498" Dia. x 2.005" Lg.

$11.99

$

In Stock, only 1 left!

0

50

MTD 736-0264

Fl-Wash. .344" I.D. x.62"

$6.99

$

In Stock, only 2 left!

0

51

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

52

MTD 711-0628A

Adjustment Ferrule

$

$

Not available

53

MTD 747-0356

Shifting Rod

$

$

Not available

54

MTD 05497

Drive Plate Mtg. Brkt. Ass'y.

Variations

MTD 05497-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

56

MTD 715-0136

H-Spring Pin Spiral 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0136)

$

$

Not available

57

MTD 714-0388

#61 Hi-Pro Key 3/16 x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

58

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

59

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

60

MTD 738-0304

Differential Pin

$

$

Not available

61

MTD 738-0280

Hex Shaft

$

$

Not available

62

MTD 712-0896

Hex L-Nut 1/4-28 Thd.

$4.99

$

In Stock, Qty 6

0

63

MTD 714-0129

#9 Hi-Pro Key 3/32 x 5/8" Dia.
(Superseded to 914-0129)

$

$

Not available

64

MTD 748-0204

8 Teeth Sprocket

$

$

Not available

65

MTD 713-0269

#420 Chain - .50 Pitch x 37 Link
(Superseded to 913-0269)

$

$

Not available

MTD 713-0154

Master Link
(Superseded to 913-0154)

$

$

Not available

66

MTD 713-0194

9 and 32 Teeth Sprocket Hub Ass'y.
(Superseded to 913-0194)

$153.99

$

In Stock, only 1 left!

0

67

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

68

MTD 750-0277

Spacer .51" I.D. x .69" O.D.

$

$

Not available

69

MTD 741-0133

Ball Bearing

$35.99

$

Usually ships in 3-6 days

0

70

MTD 738-0284

Differential Connecting Shaft

$

$

Not available

71

MTD 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

72

MTD 713-0198

28 Teeth Sprocket

$

$

Currently unavailable

73

MTD 748-0222

Differential Housing

$

$

Not available

74

MTD 748-0224

20 Tooth Spur Gear

$

$

Not available

75

MTD 748-0223

9 Tooth Spur Gear

$

$

Not available

76

MTD 736-0187

Fl-Wash. .62" I.D. x 1.25"

$4.49

$

In Stock, Qty 20+

0

77

MTD 748-0222

Differential Housing

$

$

Not available

78

MTD 05484

Differential Hsg. Support Plate

$

$

Not available

79

MTD 082538

Bearing Housing

$

$

Currently unavailable

80

MTD 741-0919

Ball Brg. .787" I.D. x 1.85"
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

81

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

82

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

83

MTD 05491A

Engine Brkt. Ass'y.

$

$

Not available

84

MTD 714-0104

Inter. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

85

MTD 732-0303

Extension Spring 3.18" Lg.
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

86

MTD 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

$

$

Currently unavailable

87

MTD 05518B

Auger Clutch Brkt.

$

$

Not available

88

MTD 738-0281

Shld. Bolt .625" Dia. x .170"

$10.99

$

In Stock, only 2 left!

0

89

MTD 05523

Pivot Axle Brkt.

$

$

Not available

90

MTD 736-0264

Fl-Wash. .345" I.D. x.75"

$6.99

$

In Stock, only 2 left!

0

91

MTD 710-0538

Hex L-Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 7

0

92

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

93

MTD 750-0275

Sprocket Hub Tubing 1.88"

$

$

Not available

94

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

95

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

96

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

97

MTD 736-0159

Fl-Wash. .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

98

MTD 710-0629

Hex Bolt 3/8-24 x 2.75" Lg.

$

$

Not available

99

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

100

MTD 390-0146

Tire Chain

Note: (Optional)

$

$

Currently unavailable
