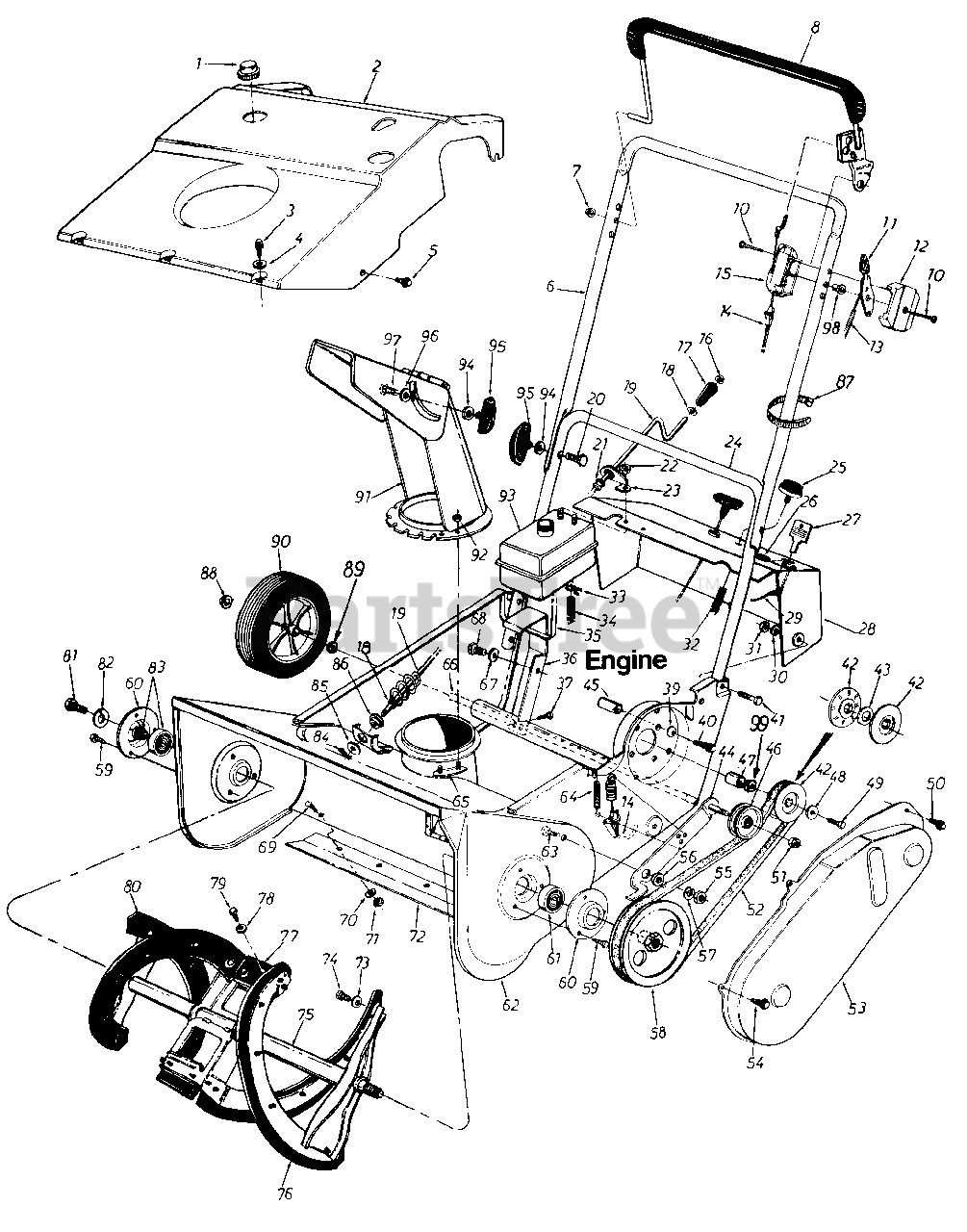

31180C - MTD Snow Thrower (1986) 21" Parts Diagram

Snow Thrower

21" Parts Diagram

  • Title
1

MTD 751-0353

Gas Tank Cap
(Superseded to TC-410240)

Note: (180 & 181)

$9.49

$

Usually ships in 3-12 days

0

MTD 751-0363

Gas Tank Cap

Note: (190)

$

$

Currently unavailable

2

MTD 731-0702

21" Shroud

Note: (180 and 181)

$

$

Not available

MTD 731-0703

21" Shroud

Note: (190)

$

$

Not available

3

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

4

MTD 736-0370

Spr.-Wash. .206" I.D. x .448" 0. D.

$

$

Not available

5

MTD 710-0892

Hex L-Wash. Hd. AB-Tap 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

6

MTD 749-0536

Upper Handle Chrome
(Superseded to 749-0538E-0637)

$

$

Not available

7

MTD 726-0135

Cap Speed Nut

$6.99

$

In Stock, only 1 left!

0

8

MTD 731-0791

Control Handle Ass'y. L.H.

$

$

Not available

10

MTD 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

11

MTD 731-0528

Throttle Lever
(Superseded to 931-0972)

Note: (190 Only)

$9.99

$

In Stock, Qty 13

0

12

MTD 731-0525

Control Panel Half

Note: (180 & 181)

$

$

Not available

MTD 731-0523

Control Panel Half

Note: (190)

$

$

Not available

13

MTD 746-0544

Throttle Wire 35"

Note: (190 Only)

$

$

Not available

14

MTD 746-0506

Clutch Cable 35" Lg.
(Superseded to 946-0506)

$37.99

$

Usually ships in 3-6 days

0

15

MTD 731-0526

Clutch Panel Half

$

$

Not available

16

MTD 726-0100

Push Cap 3/8" Rod

$4.49

$

In Stock, Qty 20+

0

17

MTD 720-0171

Knob 3/8" Dia. Hole
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

18

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

19

MTD 784-5179

Chute Crank Ass'y.

$

$

Not available

20

MTD 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

21

MTD 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

23

MTD 784-5178

Upper Chute Crank Brkt.
(Superseded to 784-5178A)

$

$

Not available

24

MTD 749-0691

Lower Handle Chrome

$

$

Not available

25

MTD 751-0354

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

26

MTD 731-0496

Plastic Plug 11/4"

$

$

Not available

27

MTD 725-0954

Plastic Key
(Superseded to TC-35062)

Note: (Tech. Eng.)

$3.99

$

Usually ships in 3-12 days

0

28

MTD 784-5168

Dash Panel Ass'y.

$

$

Currently unavailable

29

MTD 725-0958

Ignition Wire

$

$

Currently unavailable

30

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD 723-0354

Primer Hose 11" Lg.
(Superseded to TC-32180C)

$6.99

$

In Stock, only 4 left!

0

33

MTD 726-0207

Hose Clamp .406" Dia.

$

$

Not available

34

MTD 751-0173

Gas Line 9" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

35

MTD 726-0225

Cable Tie 17.75" Lg.

$

$

Not available

36

MTD 784-5341

Engine Support Brkt.

$

$

Not available

37

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

39

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

Note: (180 & 181)

$4.49

$

In Stock, Qty 20+

0

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

Note: (190)

$4.49

$

In Stock, only 1 left!

0

41

MTD 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

42

MTD 756-0416

3/8" "V"-Pulley Half .625" I.D. x 6.0" O.D.
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

43

MTD 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

Note: (180 & 181)

$6.99

$

In Stock, only 1 left!

0

MTD 736-0256

Fl-Wash. .625" I.D. x 1.0" O.D.
(Superseded to 936-0256)

Note: (190)

$7.49

$

Usually ships in 3-6 days

0

44

MTD 784-5180

Idler Brake Brkt. Ass'y.
(Superseded to 753-05156)

$

$

Not available

45

MTD 750-0589

Spacer .325" I.D. x .625" O.D. x .875"
(Superseded to 950-0589)

Note: (180 & 181 Only)

$6.49

$

Usually ships in 3-6 days

0

46

MTD 756-0313

Fl-Idler w/Flanges 2.12" O.D.

$26.99

$

In Stock, Qty 5

0

47

MTD 748-0201

Spacer .635" I.D. x .89" O.D. x .57"
(Superseded to 948-0201)

Note: (180 & 181 Only)

$

$

Not available

48

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

50

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

51

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

52

MTD 754-0101

"V"-Belt 1/2" X 35" Lg.
(Superseded to 954-0101A)

Note: (180 & 181)

$28.99

$

In Stock, Qty 20+

0

MTD 754-0235

"V"-Belt 1/2" X 35" Lg.

Note: (190)

$

$

Not available

53

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

54

MTD 710-0352

Hex B-Tap Scr. 1/4" X .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 748-0234

Shld Spacer .50" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

57

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

58

MTD 756-0475

1/2 " "V"-Puiley 1/2-20 L.H. x 6" O.D.

$79.99

$

Usually ships in 3-6 days

0

59

MTD 710-0352

Hex B-Tap Scr. 1/4" X .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

60

MTD 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

MTD 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

61

MTD 741-0124

Ball Brg. .669" I.D. x 1.574" O.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

62

MTD 784-5325

21" Blower Hsg. Ass'y.

$

$

Not available

63

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

64

MTD 732-0357

Extension Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

65

MTD 05783

Chute Flange Keeper Ass'y.

$

$

Not available

66

MTD 749-0605

Wheel Axle Tubing

$

$

Not available

67

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

68

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-0134

Carriage Bolt 1/4-20 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

71

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

72

MTD 731-0778

Shave Plate
(Superseded to 731-1033)

$47.99

$

In Stock, Qty 14

0

73

MTD 736-0142

Fl-Wash. .281" I.D. x .50" O.D.

$4.99

$

In Stock, Qty 20+

0

74

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 X .62"

Note: (Spec.)

$4.49

$

In Stock, Qty 20+

0

75

MTD 784-5335

Auger Ass'y. 21"
(Superseded to 984-04027A)

$196.99

$

In Stock, Qty 10

0

76

MTD 731-0781

Rubber Spiral L.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

77

MTD 731-0782

Rubber Paddle
(Superseded to 931-0782A)

$6.99

$

In Stock, Qty 10

0

78

MTD 736-0400

Fl-Wash. .218" I.D. x .62" O.D.

$5.49

$

In Stock, Qty 12

0

79

MTD 710-0962

Hex Wash. B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

80

MTD 731-0780

Rubber Spiral R.H.
(Superseded to 931-0780A)

$27.99

$

In Stock, Qty 14

0

81

MTD 710-0875

Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

82

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

83

MTD 753-0374

Kit Bearing and Collar

$

$

Not available

84

MTD 714-0507

Cotter Pin 3132" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

85

MTD 736-0234

Fl-Wash. .390" I.D. x 1.50" O.D.

$6.49

$

Usually ships in 3-6 days

0

86

MTD 741-0403

Hex Bushing .385" I.D.

$

$

Not available

87

MTD 726-0188

Cable Tie

$

$

Not available

88

MTD 726-0221

Push Cap 1/2" Dia.

$6.49

$

In Stock, only 2 left!

0

89

MTD 736-0108

Fl-Wash. .510" I.D. x .75" O.D.

$6.99

$

Usually ships in 3-6 days

0

90

MTD 734-0831

Wheel & Tire Ass'y. 6 x 1.5

$

$

Not available

91

MTD 784-5332

5" Dia. Chute Ass'y.

$

$

Currently unavailable

92

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

93

MTD 751-0435

Fuel Tank Two Qt.
(Superseded to TC-32660A)

$

$

Not available

94

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

95

MTD 09966

Knob Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

96

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

97

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

98

MTD 731-0524

Control Disc Pin

$

$

Not available

MTD 751-0355

3 HP 110V Electric Start

$

$

Currently unavailable

MTD 751-0356

5 HP 110V Electric Start

$

$

Currently unavailable

99

MTD 736-0162

FL. Wash. .635 I.D. x 1.04 O.D.

$4.49

$

In Stock, Qty 14

0
