311707-0125-E1 - Briggs & Stratton Vertical Engine Carburetor, Overhaul Set Parts Diagram

Vertical Engine

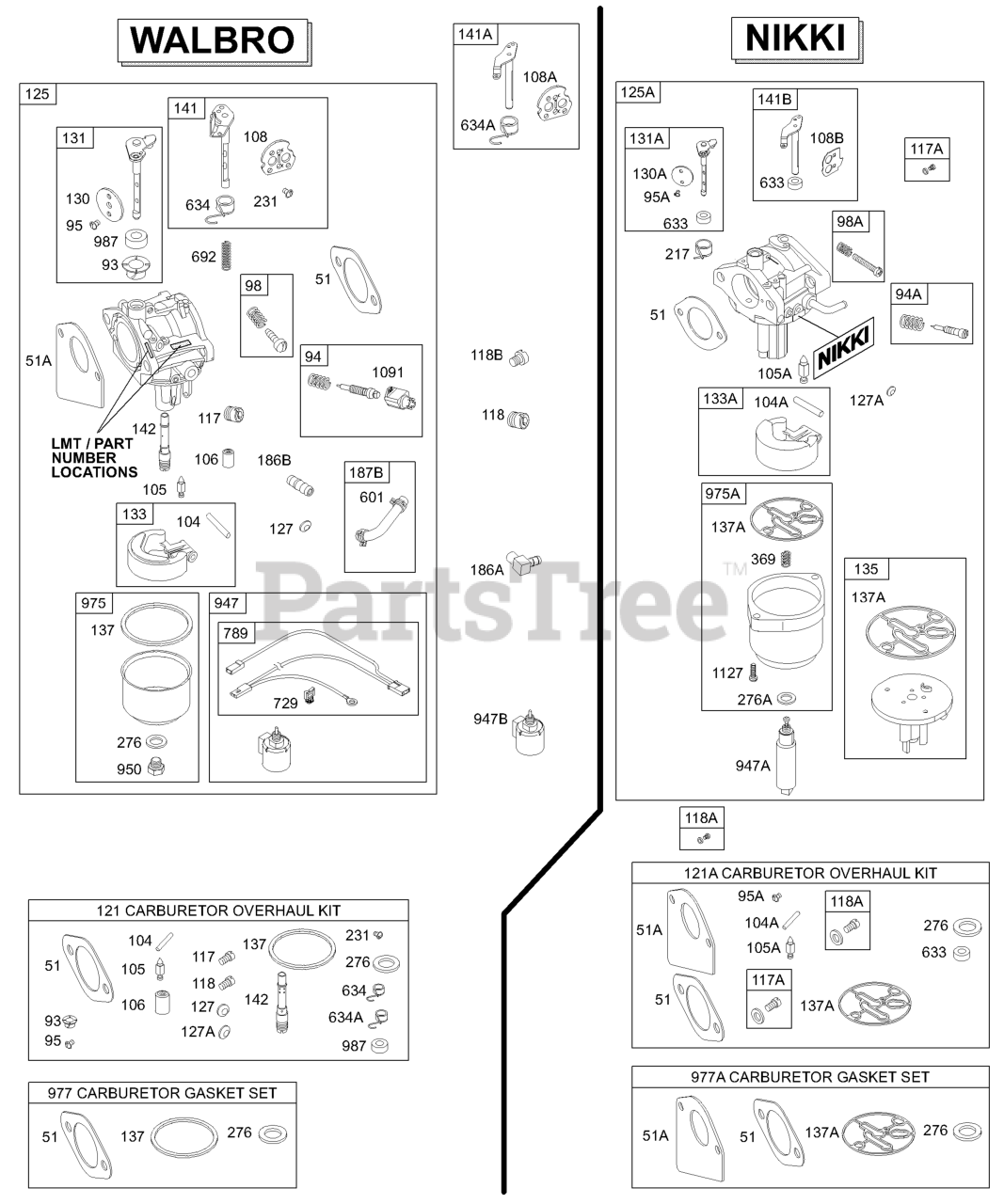

Carburetor, Overhaul Set Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692284

Gasket-Intake

$4.99

$

In Stock, only 3 left!

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Kit-Idle Mixture
(Superseded to 794176)

$21.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 695425

Kit-Idle Mixture
(Superseded to 793610)

$20.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$4.99

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

$6.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 694922

Valve-Float Needle
(Superseded to 696136)

$15.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: (LMT 154, 155 and Carburetors 697481 And 697482)

$7.99

$

In Stock, Qty 6

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (LMT 153, 156, 697480, 697483)

$10.99

$

In Stock, only 2 left!

0

108

Briggs & Stratton 690464

Valve-Choke

Note: (LMT 153, 156, 697480, 697483)

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 692344

Valve-Choke

Note: (LMT 154, 155 and Carburetors 697481 And 697482)

$8.49

$

Usually ships in 2-12 days

0

108B

Briggs & Stratton 695419

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 692408

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 695415

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 692411

Jet-Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 695416

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 690191

Kit-Carburetor Overhaul

$69.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 695427

Kit-Carburetor Overhaul

$67.99

$

In Stock, Qty 8

0

125

Briggs & Stratton 698782

Carburetor
(Superseded to 791889)

Note: (LMT 153, 156, 697480, 697483)

$

$

Not available

125

Briggs & Stratton 698620

Carburetor
(Superseded to 799727)

Note: (LMT 154, 155 and Carburetors 697481 And 697482)

$

$

Not available

125A

Carburetor

Note: (Nikki Carburetor, Service With Walbro Carburetor)

$

$

Not available

127

Briggs & Stratton 695005

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

130

Briggs & Stratton 691750

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

130A

Briggs & Stratton 695418

Valve-Throttle

$8.99

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Kit-Throttle Shaft
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

131A

Briggs & Stratton 695421

Kit-Throttle Shaft

$39.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, Qty 8

0

135

Briggs & Stratton 696142

Tube-Fuel Transfer

$41.99

$

In Stock, Qty 7

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

Usually ships in 2-12 days

0

137A

Briggs & Stratton 695426

Gasket-Float Bowl

$9.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 495097

Kit-Choke Shaft
(Superseded to 790905)

Note: (LMT 154, 155 and Carburetors 697481 And 697482)

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Kit-Choke Shaft
(Superseded to 790902)

Note: (LMT 153, 156, 697480, 697483)

$33.99

$

In Stock, only 1 left!

0

141B

Briggs & Stratton 695420

Kit-Choke Shaft
(Superseded to 792777)

$32.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 692412

Nozzle-Carburetor

Note: (Standard)

$30.99

$

In Stock, only 3 left!

0

186A

Briggs & Stratton 692317

Connector-Hose

Note: (Carburetor)

$6.49

$

In Stock, Qty 20+

0

186B

Briggs & Stratton 698174

Connector-Hose

Note: (Carburetor)

$3.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$8.99

$

In Stock, only 1 left!

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$3.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$6.99

$

In Stock, Qty 15

0

369

Briggs & Stratton 695422

Spring-Float Bowl

$8.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 695414

Seal-Choke/Throttle Shaft
(Superseded to 806131)

$5.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690801

Spring/Seal Assembly

Note: (LMT 153, 156, 697480, 697483)

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (LMT 154, 155 and Carburetors 697481 And 697482)

$9.49

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

729

Briggs & Stratton 691335

Clip-Wire

$4.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 692734

Solenoid-Fuel

$102.99

$

In Stock, Qty 7

0

947A

Briggs & Stratton 695423

Solenoid-Fuel
(Superseded to 596038)

$79.99

$

In Stock, Qty 18

0

950

Briggs & Stratton 691657

Screw-Float Bowl

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

975A

Briggs & Stratton 695417

Bowl-Float

$

$

Not available

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

977A

Briggs & Stratton 695428

Gasket Set-Carburetor
(Superseded to 695427)

$67.99

$

In Stock, Qty 8

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl)

$4.49

$

In Stock, Qty 20+

0
