31160S - MTD Snow Thrower (1985) Snow Parts Diagram

Snow Thrower

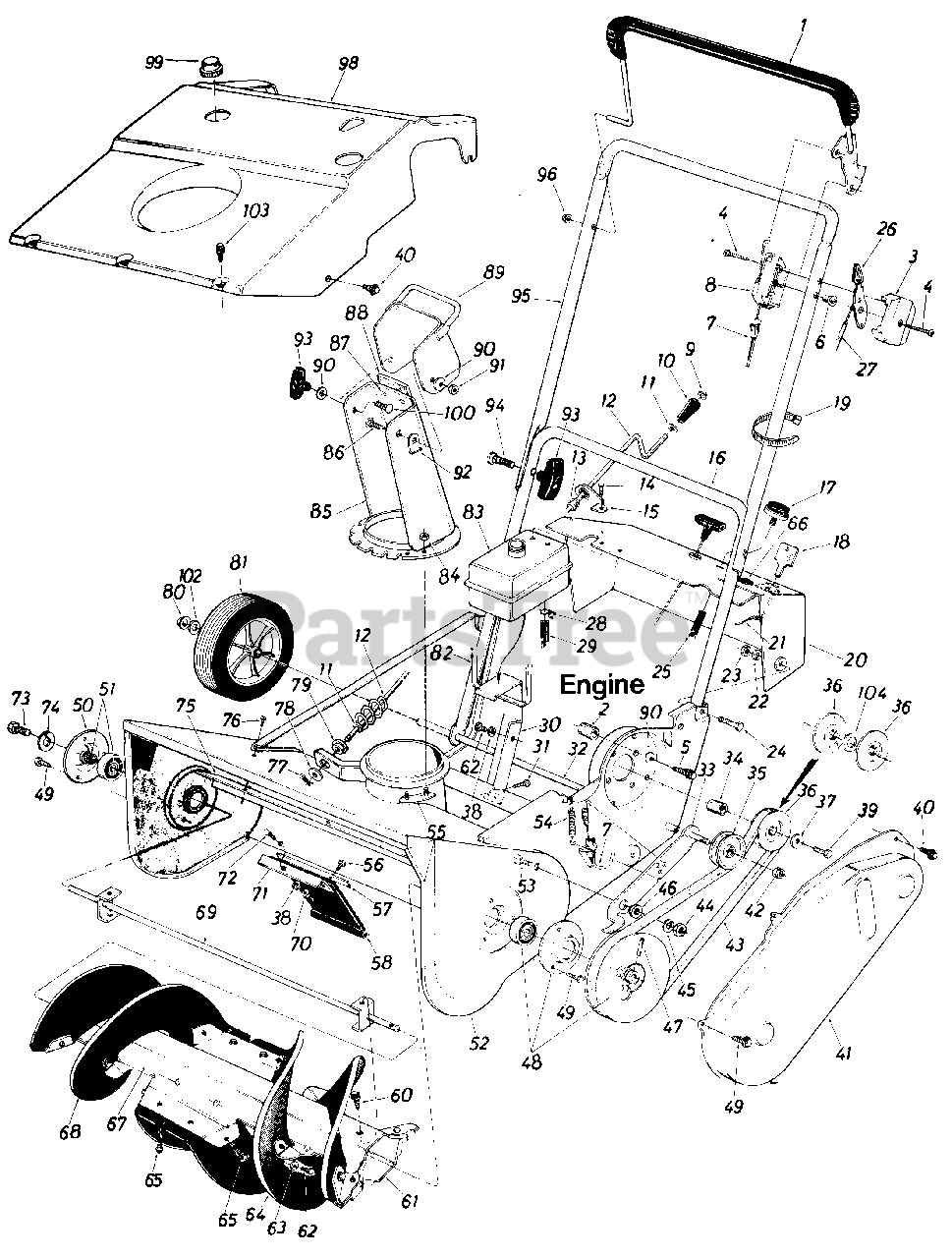

Snow Parts Diagram

  • Title

1

MTD 731-0609

Clutch Control Handle Ass'y.

$

$

Not available

2

MTD 750-0589

Spacer.325" I.D. x .625" O.D.
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

3

MTD 731-0525

Control Panel Half

Note: (3 H.P.)

$

$

Not available

MTD 731-0523

Control Panel Half

Note: (5 H.P.)

$

$

Not available

4

MTD 710-0796

Truss Mach. Hi-B Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

6

MTD 731-0524

Control Disc Pin

$

$

Not available

7

MTD 746-0506

Clutch Cable 35" Lg. Black
(Superseded to 946-0506)

$37.99

$

Usually ships in 3-6 days

0

8

MTD 731-0526

Clutch Panel Half

$

$

Not available

9

MTD 726-0100

Push Nut 3/8 Rod

$4.49

$

In Stock, only 1 left!

0

10

MTD 720-0171

Knob Black 3/8" Dia. Hole
(Superseded to 920-0171)

$15.99

$

In Stock, only 1 left!

0

11

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

12

MTD 784-5179

Chute Crank Ass'y.

$

$

Not available

13

MTD 735-0218

Chute Crank Grommet
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0895

Hex Tap Scr. 1/4" x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

15

MTD 784-5178

Upper Chute Crank Brk't.
(Superseded to 784-5178A)

$

$

Not available

16

MTD 749-0604

Lower Handle

$

$

Currently unavailable

17

MTD 751-0354

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 7

0

18

MTD 725-0954

Starter Key
(Superseded to TC-35062)

$3.99

$

In Stock, only 1 left!

0

19

MTD 726-0188

Cable Tie

$

$

Not available

20

MTD 784-5168

Dash Panel Ass'y.

$

$

Currently unavailable

21

MTD 725-0958

Ignition Wire

Note: (5 H.P. Only)

$

$

Currently unavailable

22

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

25

MTD 723-0354

Primer Hose 118" I.D. x 11"
(Superseded to TC-32180C)

$6.99

$

In Stock, Qty 9

0

26

MTD 731-0528

Throttle Lever
(Superseded to 931-0972)

Note: (5 H.P. Only)

$9.99

$

In Stock, Qty 13

0

27

MTD 746-0544

Throttle Wire

Note: (5 H.P. Only)

$

$

Not available

28

MTD 726-0207

Hose Clamp .406" Dia.

$

$

Not available

29

MTD 751-0173

Gas Line 9" Long
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

30

MTD 784-5177

Engine Support Brk't.

Variations

MTD 784-5177-0637

No Longer Available BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

31

MTD 710-0892

Hex L-Wash. Hd. AB Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

32

MTD 749-0605

Wheel Axle

$

$

Not available

33

MTD 784-5180

Idler Brake Brk't. Ass'y.
(Superseded to 753-05156)

$

$

Not available

34

MTD 748-0192

Spacer

$7.99

$

Usually ships in 3-6 days

0

35

MTD 756-0313

Fl-Idler 2.00" x 1" w/Flange

$26.99

$

In Stock, Qty 6

0

36

MTD 756-0416

3/8" V-Pulley .625" I.D. x 2.25
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

37

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

39

MTD 710-0157

Hex Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

40

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62"
(Superseded to 910-0892)

$

$

Not available

41

MTD 784-5176

Belt Cover
(Superseded to 790-00045C-0637)

Variations

MTD 784-5176-0483

Belt Cover, Black - CHARCOAL GRAY (0483)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0629

Belt Cover, Black - SILVER FLAKE (0629)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0637

Belt Cover, Black - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0716

Belt Cover, Black - CUB YELLOW-99 (0716)

$57.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0498

USE 790-00045A COVER-BELT - OLD CUB YELLOW (0498)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0650

COVER-BELT - RED METALLIC (0650)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0662

COVER-BELT - OYSTER GRAY (0662)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0674

COVER-BELT - YARDMAN YELLOW (0674)

$46.99

$

Usually ships in 3-6 days

0

MTD 784-5176-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 784-5176-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

$57.99

$

Usually ships in 3-6 days

0

42

MTD 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

43

MTD 754-0285

V-Belt 1/2" x 34" Lg.
(Superseded to 954-0285)

$

$

Not available

44

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

MTD 748-0234

Shld. Spacer 1.0" O.D. x .315 I.D.

$4.49

$

In Stock, Qty 20+

0

47

MTD 715-0151

Spring Pin Spir. 114" Dia. x 1.00" Lg.

$

$

Not available

48

MTD 753-0398

Kit-Bearing, Cup and Pulley

$

$

Not available

49

MTD 710-0352

Hex "B"-Tap Scr. 1/4-20 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

50

MTD 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

MTD 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 753-0374

Kit-Bearing and Collar

$

$

Not available

52

MTD 784-5150

Blower Housing Ass'y.

$

$

Not available

53

MTD 710-0323

Truss. Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

54

MTD 732-0357

Extension Spring .33" O.D.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

55

MTD 05783

Chute Flange Keeper Ass'y.

$

$

Not available

56

MTD 710-0776

Hex Wash. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

57

MTD 14531

Retaining Strip 19.0" Lg.

$

$

Currently unavailable

58

MTD 731-0587

Rear Flap 4.69" x 18.2"

$

$

Not available

60

MTD 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

61

MTD 784-5171

Auger Half 21.0" Lg.

$

$

Currently unavailable

62

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0173

Fl-Wash. .28" I.D. x .74" O.D.

$4.49

$

In Stock, Qty 20+

0

64

MTD 731-0700

8.5" Dia. Rubber Spiral

$

$

Not available

65

MTD 710-0896

Hex B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

66

MTD 731-0496

Plastic Plug

$

$

Not available

67

MTD 784-5171

Auger Half 21.0" Lg.

$

$

Currently unavailable

68

MTD 731-0700

8.5" Dia. Rubber Spiral

$

$

Not available

69

MTD 784-5172

Auger Axle Ass'y.

$

$

Currently unavailable

70

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

71

MTD 784-5166

Shave Plate
(Superseded to 753-0451)

$67.99

$

In Stock, only 1 left!

0

72

MTD 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

73

MTD 710-0875

Hex Wash. TT-Tap Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

74

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

75

MTD 784-5159

Thrower Housing Angle

$

$

Currently unavailable

76

MTD 710-0352

Hex "B"-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

77

MTD 714-0507

Cotter Pln 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

78

MTD 736-0234

Fl-Wash. .385" I.D. x 1.5" O.D.

$6.49

$

Usually ships in 3-6 days

0

79

MTD 741-0403

Hex Bushing .385" I.D.

$

$

Not available

80

MTD 726-0221

Cap Speed Nut 1/2" Rod

$6.49

$

In Stock, only 1 left!

0

81

MTD 734-0831

Wheel Ass'y. 6 x 1.50

$

$

Not available

82

MTD 726-0225

Cable Tie x 17.75" Lg.

$

$

Not available

83

MTD 751-0352

Gas Tank
(Superseded to TC-32660A)

$

$

Not available

84

MTD 712-0107

Hex Nylon L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

85

MTD 784-5160

5.0" Dia. Chute Ass'y.

$

$

Not available

86

MTD 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

87

MTD 728-0481

Rivet .250" x .44" Lg.

$

$

Currently unavailable

88

MTD 721-0198

Chute Seal

$

$

Currently unavailable

89

MTD 784-5163

Top Chute Ass'y.

$

$

Not available

90

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

91

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

92

MTD 784-5170

Top Chute Stop

$

$

Currently unavailable

93

MTD 09966

Knob-Handle Ass'y.
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

94

MTD 710-0405

Curved Hd. Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

95

MTD 749-0538

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

96

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

98

MTD 731-0702

Shroud

Note: (3 H.P.)

$

$

Not available

MTD 731-0703

Shroud

Note: (5 H.P.)

$

$

Not available

99

MTD 751-0353

Gas Tank Cap
(Superseded to TC-410240)

$9.49

$

Usually ships in 3-12 days

0

100

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00"

$3.99

$

In Stock, Qty 11

0

102

MTD 736-0108

Fl-Wash. .75" O.D. x .50" I.D.

$6.99

$

Usually ships in 3-6 days

0

103

MTD 710-0351

Hex AB-Tap Scr. #10 x .50"

$4.49

$

Usually ships in 3-6 days

0

104

MTD 736-0116

Fl-Wash. .635" I.D. x .93" O.D.
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

MTD 751-0355

3 H.P. 110V Electric Start

$

$

Currently unavailable

MTD 751-0356

5 H.P. 110V Electric Start

$

$

Currently unavailable
