3112 V (990494) - Simplicity Sovereign Garden Tractor VARIABLE SPEED PULLEY Parts Diagram

Sovereign Garden Tractor

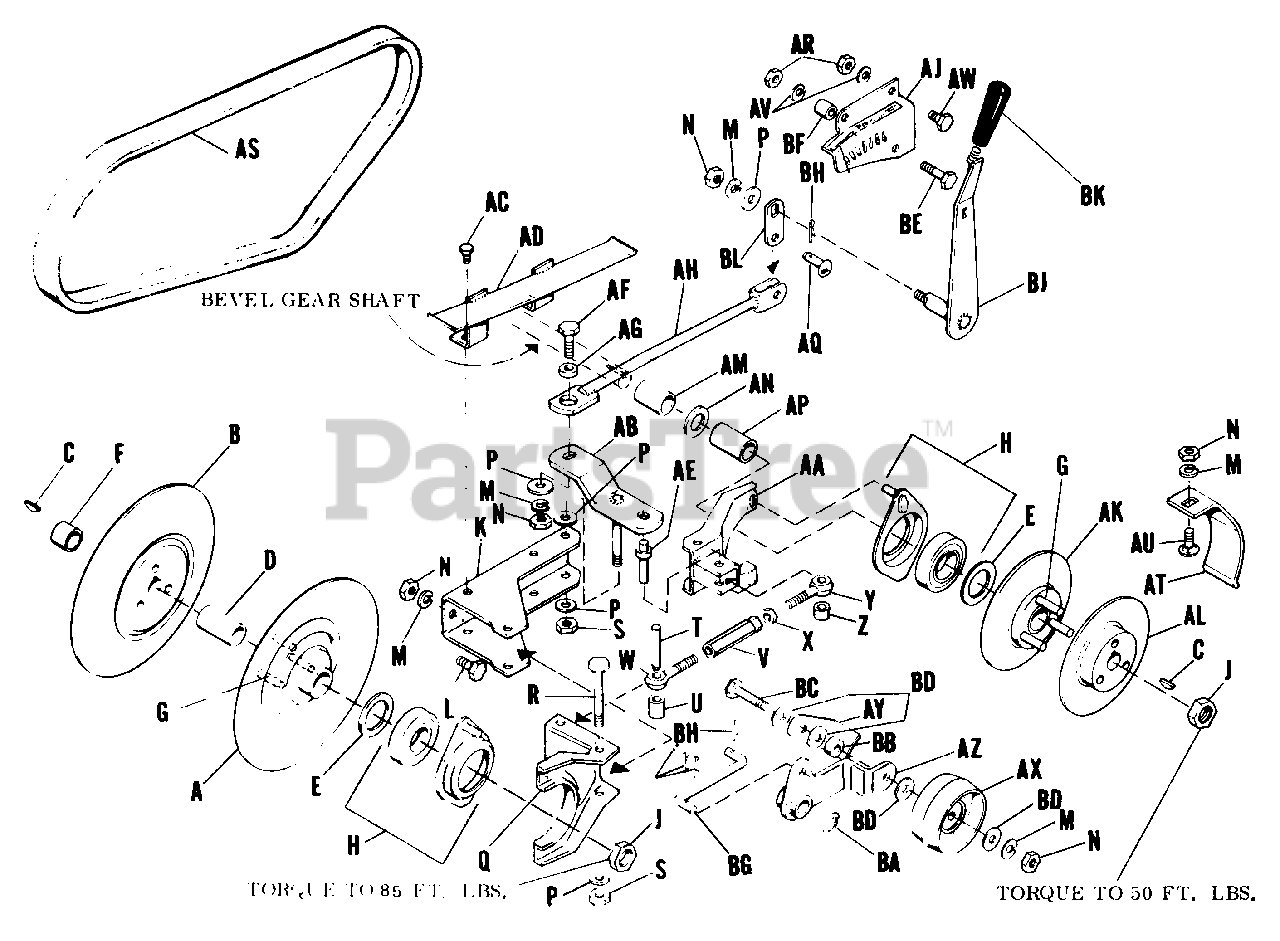

VARIABLE SPEED PULLEY Parts Diagram

  • Title

A

Simplicity 164166

Pulley-Half Assembly

$

$

Not available

B

Simplicity 164162

Pulley-Half

$

$

Not available

C

Simplicity 2725504

Key

$

$

Not available

D

Simplicity 164067

Driver Slide Spacer Teflon Coated

$

$

Not available

E

Simplicity 2164181

Washer

$

$

Not available

F

Simplicity 164068

Spacer

$

$

Not available

G

Simplicity 164066

Pins

$

$

Not available

H

Simplicity 2164211SM

Retainer Ring/Bearing Assembly

$100.99

$

Usually ships in 2-12 days

0

J

Simplicity 2717517

Hex Jam Nut, Lock

$

$

Not available

K

Simplicity 164157

Variable Speed Bracket

$

$

Not available

L

Simplicity 2705031

Hex Capscrew, 3/8"-16 x 7/8" lg.

$

$

Not available

M

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

N

Simplicity 2717003

Hex. Nut, 3/8"-16

$

$

Not available

P

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

Q

Simplicity 164035

Transmission Fork Assembly

$

$

Not available

R

Simplicity 2164069

Special Screw

$

$

Not available

S

Simplicity 2717510

Hex Nut, 3/8"-16 Lock

$

$

Not available

T

Simplicity 164070

Pivot Pin

$

$

Not available

U

Simplicity 164071

Spacer

$

$

Not available

V

Simplicity 164072

Turnbuckle Body

$

$

Not available

W

Simplicity 164073

Eyebolt, R.H.

$

$

Not available

X

Simplicity 717010

Hex Nut, 3/8"-21

$

$

Not available

Y

Simplicity 164074

Eyebolt, L.H.

$

$

Not available

Z

Simplicity 164176

Spacer

$

$

Not available

AA

Simplicity 164033

Bevel Gear Housing Fork Assy.

$

$

Not available

AB

Simplicity 164075

Fork, Rocker Assy.

$

$

Not available

AC

Simplicity 2715077

Screw, Taptite, 1/4"-20 x 5/8" lg.

$

$

Not available

AD

Simplicity 164106

Belt Guard Assembly

$

$

Not available

AE

Simplicity 164078

Rod

$

$

Not available

AF

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

AG

Simplicity 2164105

Spacer

$

$

Not available

AJ

Simplicity 164124

Quadrant

$

$

Not available

AH

Simplicity 164010

Arm Assembly

$

$

Not available

AK

Simplicity 164171

Pulley-Half Assembly

$

$

Not available

AL

Simplicity 2164300SM

Pulley-Half

$

$

Not available

AM

Simplicity 164174

Slide Spacer

$

$

Not available

AN

Simplicity 2164175

Stop Washer

$

$

Not available

AP

Simplicity 2164173SM

Slide Spacer (Teflon Coated)

$

$

Not available

AQ

Simplicity 1708298SM

Pin

$

$

Not available

AR

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available

AS

Simplicity 2164080SM

BELT, HI, 54"

$107.99

$

In Stock, Qty 5

0

AT

Simplicity 164082

Belt Guard

$

$

Not available

AU

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 5/8" lg.

$

$

Not available

AV

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AW

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

AX

Simplicity 2164083

Idler Pulley

$

$

Not available

AY

Simplicity 164790

Idler Belt Stop

$

$

Not available

AZ

Simplicity 2164084

Idler Lever Assembly

$

$

Not available

BA

Simplicity 2118240

Retaining Ring

$

$

Not available

BB

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 1 left!

0

BC

Simplicity 2705006

Hex Capscrew, 3/8"-16 x 2" lg.

$

$

Not available

BD

Simplicity 2719002

Plain washer, 5/16"

$

$

Not available

BE

Simplicity 2705018

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

BF

Simplicity 164125

Spacer

$

$

Not available

BG

Simplicity 2164088SM

Clutch Link

$

$

Not available

BH

Simplicity 2722001

Cotter Pin

$

$

Not available

BJ

Simplicity 164097

Lever Assembly

$

$

Not available

BK

Simplicity 2164180

Handle

$

$

Not available

BL

Simplicity 1640123

Link

$

$

Not available

BM

Simplicity 164128

Film Quardrant

$

$

Not available

BN

Simplicity 164130

Film Instruction

$

$

Not available
