3110 E (1691110) - Simplicity 30" Rear-Engine Riding Mower Body & Steering Column Group Parts Diagram

30" Rear-Engine Riding Mower

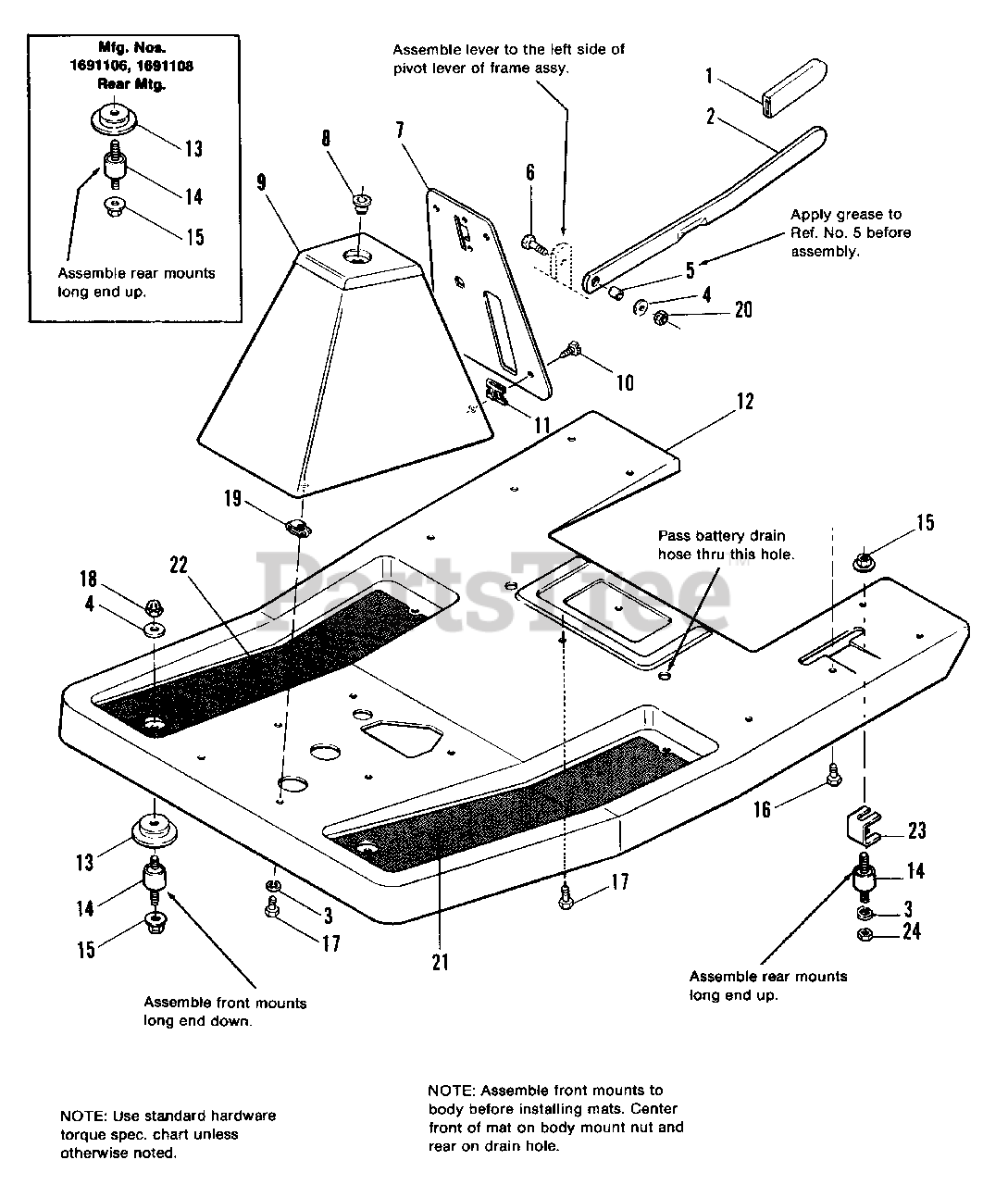

Body & Steering Column Group Parts Diagram

  • Title

1

Simplicity 1665835

GRIP, Lever
(Superseded to 1665835YP)

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 1665792SM

LEVER, Lift
(Superseded to 1665792ASM)

$11.99

$

Usually ships in 2-12 days

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

5

Simplicity 1703900SM

SPACER

$7.99

$

Usually ships in 2-12 days

0

6

Simplicity 1921333SM

CAPSCREW, Hex, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1707391

PANEL, Steering Column

Note: Order Instrument Panel Decal, P/N 1707401 with new Steering Column Panel, P/N 1707391.

$

$

Not available

8

Simplicity 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

9

Simplicity 1665725

STEERING COLUMN ASSY.

$

$

Not available

10

Simplicity 1960720SM

SCREW, Hex, Thd. Forming, #10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

11

Simplicity 1920299

U-NUT, #10 x 1/2

$

$

Not available

12

Simplicity 1611930

BODY, Front

$

$

Not available

13

Simplicity 1666622

RESTRAINER (Qty. 4 on Mfg. No.1691106 & 1691108)

$

$

Not available

14

Simplicity 2157094SM

CONNECTOR, Cushion

$

$

Not available

15

Simplicity 1927557SM

LOCKNUT, Flange, Whiz, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 1925205SM

CAPSCREW, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

17

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

18

Simplicity 1933707SM

NUT, Acorn, 5/16-18

$1.99

$

Usually ships in 2-12 days

0

19

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 2 left!

0

20

Simplicity 1923362SM

LOCKNUT, Hex, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

21

Simplicity 1666695

MAT, Foot, L.H.

$

$

Not available

22

Simplicity 1666694

MAT, Foot, R.H.

$

$

Not available

23

Simplicity 1611776

CLIP, Up-Stop (Not used on Mfg. No. 1691106, 1691108)

$

$

Not available

24

Simplicity 1917372SM

NUT, Hex, 5/16-18 (Not used on Mfg. No. 1691106, 1691108)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
