3108 (1690526) - Simplicity Rear-Engine Riding Mower Engine Drive Group - Engine Section Parts Diagram

Rear-Engine Riding Mower

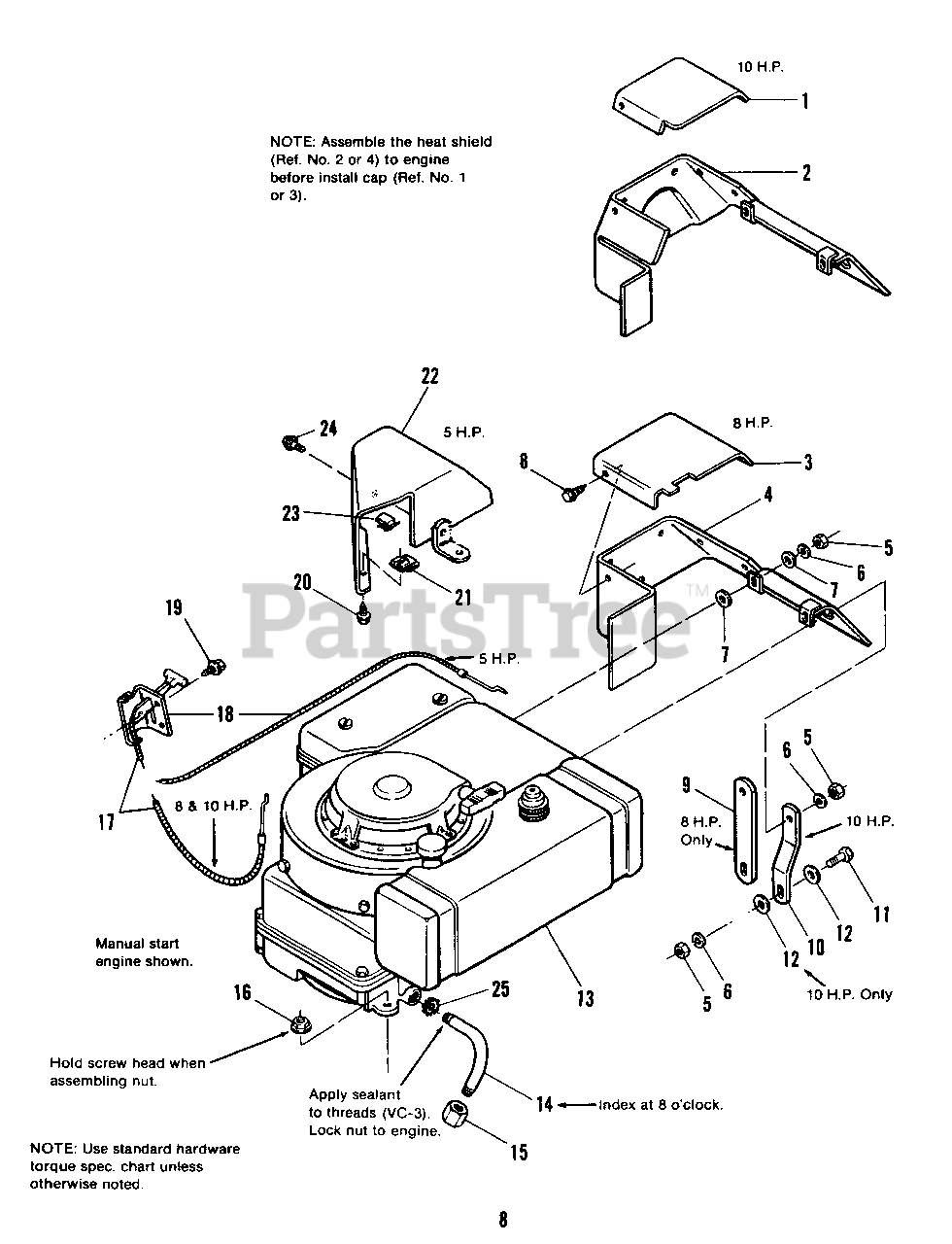

Engine Drive Group - Engine Section Parts Diagram

  • Title

1

Simplicity 1666171

CAP, Heat Shield (10 HP Only)

$

$

Not available

2

Simplicity 1668498

SHIELD ASSY., Heat (10 HP Only)

$

$

Not available

3

Simplicity 1666016

CAP, Heat Shield (8 HP Only)

$

$

Not available

4

Simplicity 1668499

SHIELD ASSY., Heat (8 HP Only)

$

$

Not available

5

Simplicity 1917372SM

NUT, Hex, 5/16-18 (8 & 10 HP Only)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16-18 (8 & 10 HP Only)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2817642

WASHER, Plain, 5/16 (8 & 10 HP Only)

$

$

Not available

8

Simplicity 2823735

SCREW, Hex,Thd. Forming, #10 x 3/8 (8 & 10 HP Only)

$

$

Not available

9

Simplicity 1665855

STRAP, Cylinder Head (8 HP Only)

$

$

Not available

10

Simplicity 1665842

STRAP, Cylinder Head (10 HP Only)

$

$

Not available

11

Simplicity 2821221

CAPSCREW, Hex, 5/16-18 x 1-1/2 (8 & 10 HP Only)

$

$

Not available

12

Simplicity 2817642

WASHER, Plain, 5/16 (8 HP- qty. 1)

$

$

Not available

13

ENGINE, 5 HP Man. Start

$

$

Not available

13

ENGINE, 8 HP Man. Start

$

$

Not available

13

ENGINE, 8 HP Elec. Start

$

$

Not available

13

ENGINE, 10 HP Elec. Start

$

$

Not available

14

Simplicity 1664989

DRAIN, Oil

$

$

Not available

15

Simplicity 1667346SM

CAP, 3/8

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 2831211SM

LOCKNUT, Whiz, 3/8-16 (5 HP Only)
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

17

Simplicity 1663795SM

CONTROL, Throttle (8 & 10 HP Only)

$61.99

$

Usually ships in 2-12 days

0

18

Simplicity 1663794SM

CONTROL, Throttle (5 HP Only)

$

$

Not available

19

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

20

Simplicity 2829477

SCREW, Hex, Taptite, #10 x 1/2

$

$

Not available

21

Simplicity 920299

U-NUT, #10 (5 HP Only)

$

$

Not available

22

Simplicity 1668436

SHIELD, Heat (5 HP Only)

$

$

Not available

23

Simplicity 2830222

CLIP (5 HP Only)

$

$

Not available

24

Simplicity 2828729

CAPSCREW, Hex Hd., Taptite, 5/16-18 x 3/8

$

$

Not available

25

Simplicity 2832849

LOCKNUT, Conduit, 3/8

$

$

Not available
