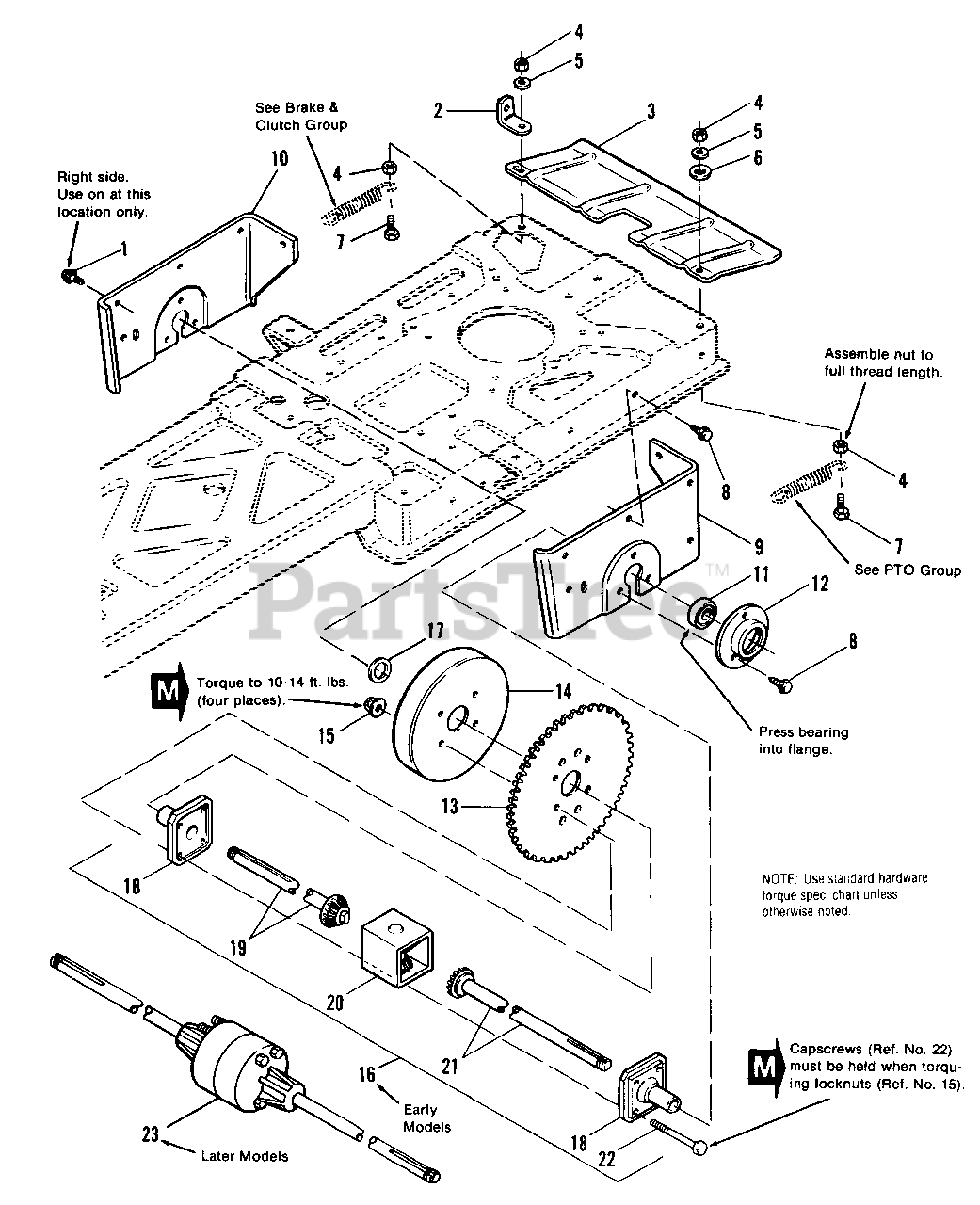

3108 (1690369) - Simplicity 30" Rear-Engine Riding Mower Engine & Drive Group - Differential Section Parts Diagram

30" Rear-Engine Riding Mower

Engine & Drive Group - Differential Section Parts Diagram

  • Title

1

Simplicity 2828729

SCREW, Hex, Wash. Hd., Taptite, 5/16-18 x 3/8

$

$

Not available

2

Simplicity 1668501

CLIP

$

$

Not available

3

Simplicity 1668493

DEFLECTOR, Heat

$

$

Not available

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

7

Simplicity 2821221

CAPSCREW, Hex, 5/16-18 x 1-1/2

$

$

Not available

8

Simplicity 2824856

SCREW, Taptite, Washer Hd., 5/16-18 x 1/2

$

$

Not available

9

Simplicity 1665711

AXLE SUPPORT, L.H.

$

$

Not available

10

Simplicity 1667510

AXLE SUPPORT, R.H.

$

$

Not available

11

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

12

Simplicity 1665696SM

FLANGE, Bearing
(Superseded to 1725764SM)

$29.99

$

Usually ships in 2-12 days

0

13

Simplicity 1668296SM

SPROCKET

$170.99

$

Usually ships in 2-12 days

0

14

Simplicity 1668295SM

DRUM, Brake

$22.99

$

Usually ships in 2-12 days

0

15

Simplicity 2835048

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

16

Simplicity 1685190SM

**DIFFERENTIAL SERVICE KIT (Includes Ref. Nos. 13, 14, 15, 17 & 23)

$249.99

$

Usually ships in 2-12 days

0

17

Simplicity 2108181

WASHER, Plain

$

$

Not available

18

Simplicity 1685190SM

*END CAP & BEARING ASSY.*

$249.99

$

Usually ships in 2-12 days

0

19

Simplicity 1685190SM

*AXLE GEAR ASSY., R.H.*

$249.99

$

Usually ships in 2-12 days

0

20

Simplicity 1667112

*TRANSMISSION GEAR CASE ASSY.*

$

$

Not available

21

Simplicity 1685190SM

*AXLE GEAR ASSY., L.H.*

$249.99

$

Usually ships in 2-12 days

0

22

Simplicity 2825690

*CAPSCREW, Hex, 5/16-18 x 3-1/2*

$

$

Not available

23

***DIFFERENTIAL AXLE ASSY., Peerless, Model 100-009 (See note below.)

$

$

Not available
