3108 (1690369) - Simplicity 30" Rear-Engine Riding Mower Brake & Clutch Group - Later Models Parts Diagram

30" Rear-Engine Riding Mower

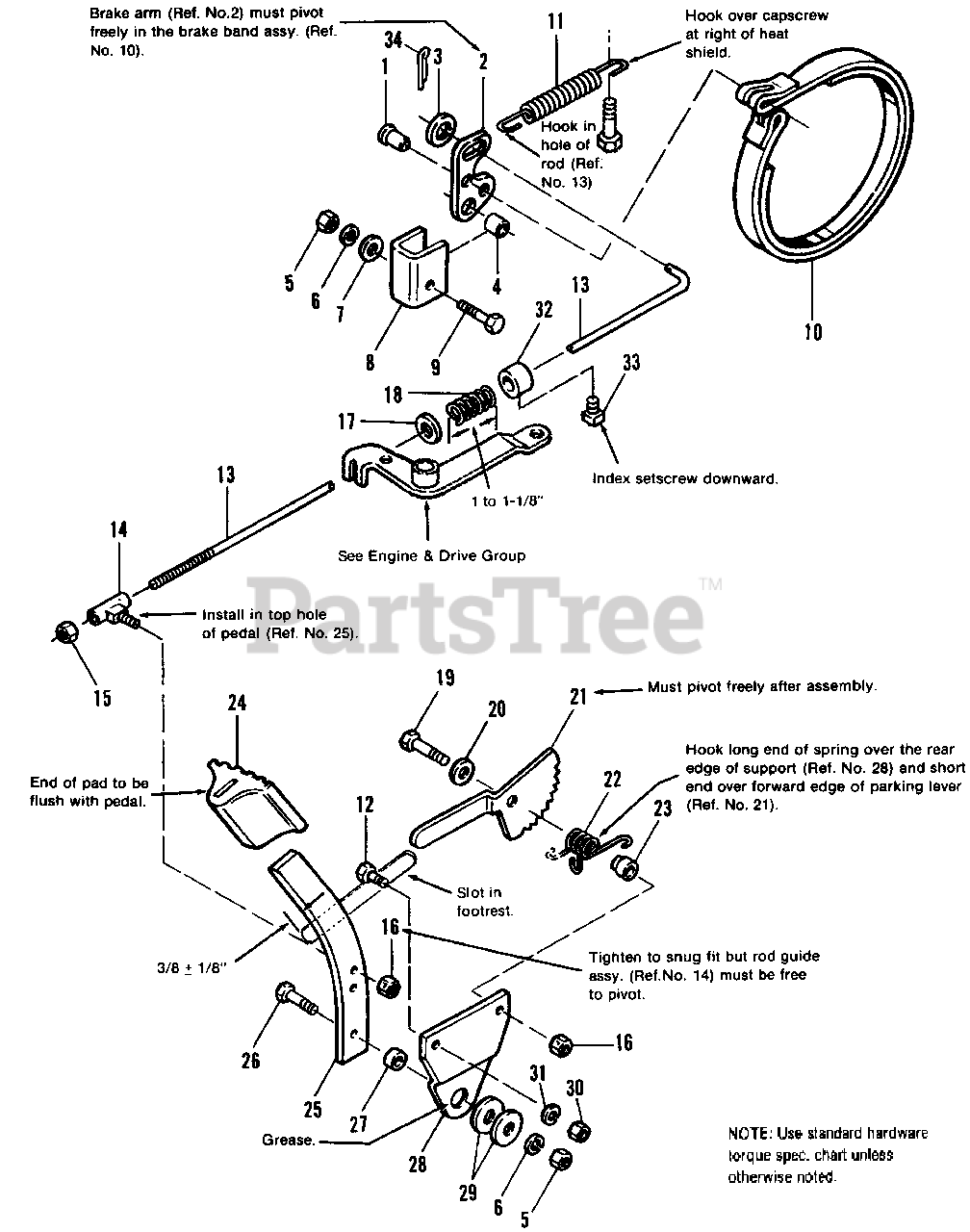

Brake & Clutch Group - Later Models Parts Diagram

  • Title

$3.49

$

Usually ships in 2-12 days

0

2

Simplicity 1669115

ARM, Brake

$

$

Not available

3

Simplicity 2819326

WASHER, Plain

$

$

Not available

$

$

Not available

5

Simplicity 2816950SM

NUT, Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

7

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

8

Simplicity 1667138

BRACKET, Brake

$

$

Not available

9

Simplicity 2821971

CAPSCREW, Hex Hd., 3/8-16 x 1-3/4

$

$

Not available

10

Simplicity 1679357SM

BRAKE BAND ASSY.

$110.99

$

Usually ships in 2-12 days

0

$9.99

$

Usually ships in 2-12 days

0

12

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

13

Simplicity 1667213

ROD, Brake

$

$

Not available

14

Simplicity 2164094SM

ROD GUIDE ASSY.

$45.99

$

Usually ships in 2-12 days

0

15

Simplicity 2824433

LOCKNUT, Esna, 5/16-18

$

$

Not available

16

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

17

Simplicity 2822755

WASHER, Plain, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

$8.49

$

Usually ships in 2-12 days

0

19

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

20

Simplicity 2819381

WASHER, Plain, 11/32

$

$

Not available

21

Simplicity 1665735

LEVER, Parking Brake

$

$

Not available

22

Simplicity 1665822

SPRING Torsion

$

$

Not available

23

$

$

Not available

24

$

$

Not available

25

Simplicity 1665736

PEDAL, Brake

$

$

Not available

26

Simplicity 1920415SM

CAPSCREW, Hex, 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

$17.99

$

In Stock, only 2 left!

0

28

Simplicity 1665744

SUPPORT, Pedal

$

$

Not available

29

$

$

Not available

30

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

32

Simplicity 1669597SM

COLLAR, Set

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 2828804

SCREW, Set, Sq. Hd., Cup Pt., 1/4-20 x 3/8

$

$

Not available

34

Simplicity 2818447

PIN, Cotter

$

$

Not available
