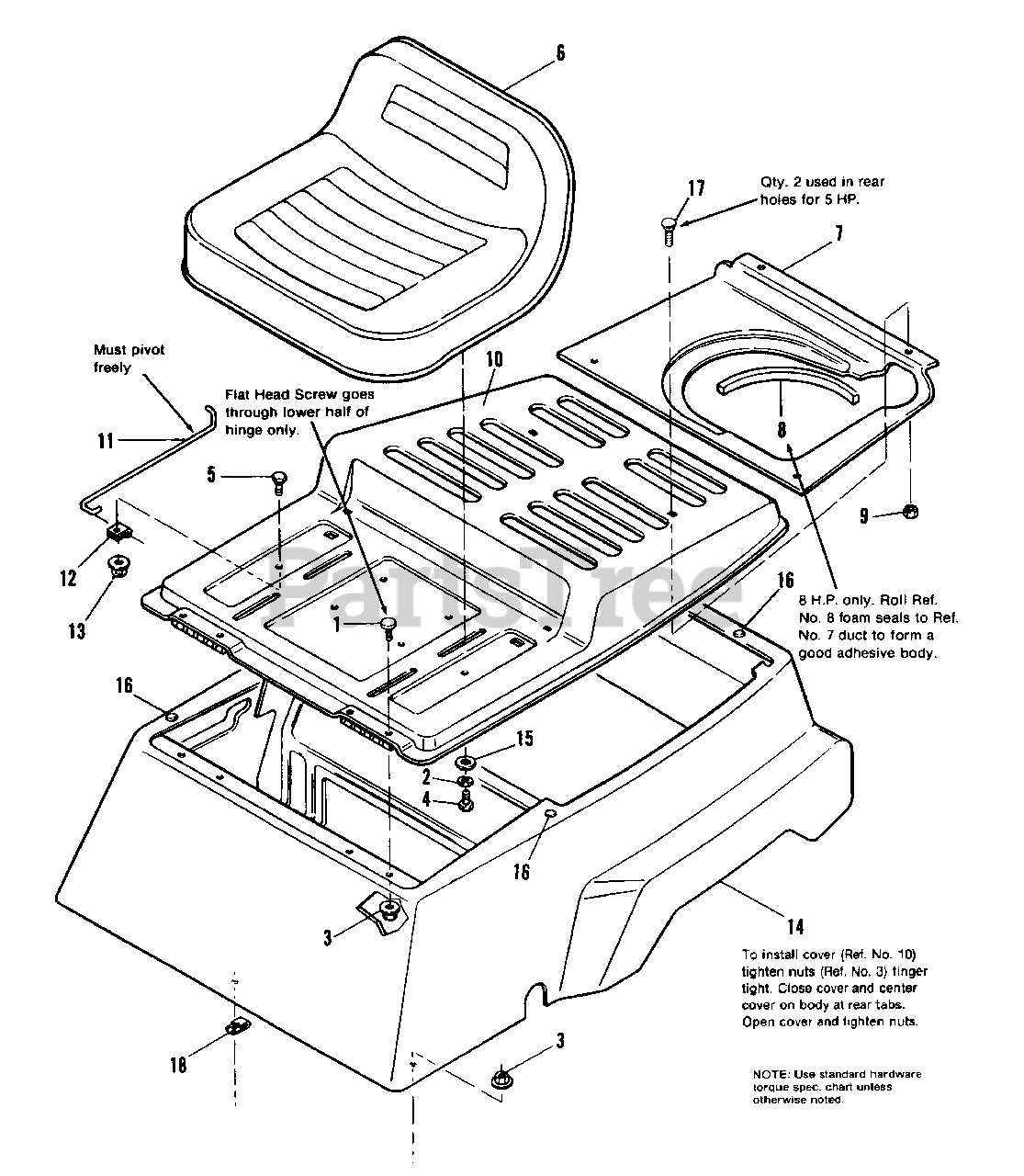

3108 (1690369) - Simplicity 30" Rear-Engine Riding Mower Body & Seat Group Parts Diagram

30" Rear-Engine Riding Mower

Body & Seat Group Parts Diagram

  • Title

1

Simplicity 936357

SCREW, Flat Hd., 5/16-18 x 7/16

$

$

Not available

2

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2827557

LOCKNUT, Flange, Whiz, 5/16-16

$

$

Not available

4

Simplicity 2825205

CAPSCREW, 5/16-18 x 5/8

$

$

Not available

5

Simplicity 2821958

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

6

Simplicity 1717294SM

SEAT, (5 HP)

$289.99

$

Usually ships in 2-12 days

0

Simplicity 1717294SM

SEAT (8 & 10 HP)

$289.99

$

Usually ships in 2-12 days

0

7

Simplicity 1668279

DUCT, Inlet (8 & 10 HP Only)

$

$

Not available

8

Simplicity 1666926

SEAL, Foam (8 HP Only)

$

$

Not available

9

Simplicity 1960517SM

PALNUT, #10-24 (Qty. 2 on 5 HP)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1670595

COVER ASSY.

$

$

Not available

11

Simplicity 1666973

ROD, Cover Support

$

$

Not available

12

Simplicity 934833

CLAMP

$

$

Not available

13

Simplicity 2830642

LOCKNUT, Flange, 1/4-20

$

$

Not available

14

Simplicity 1665613

BODY ASSY.

$

$

Not available

15

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity 1670675SM

PLUG, Bumper

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 936363

BOLT, Carriage, #10-24 x 1/2 (Qty. 2 on 5 HP)

$

$

Not available

18

Simplicity 2835255

NUT, Speed, 5/16-18 (Oty. 2 on 5 HP)

$

$

Not available
