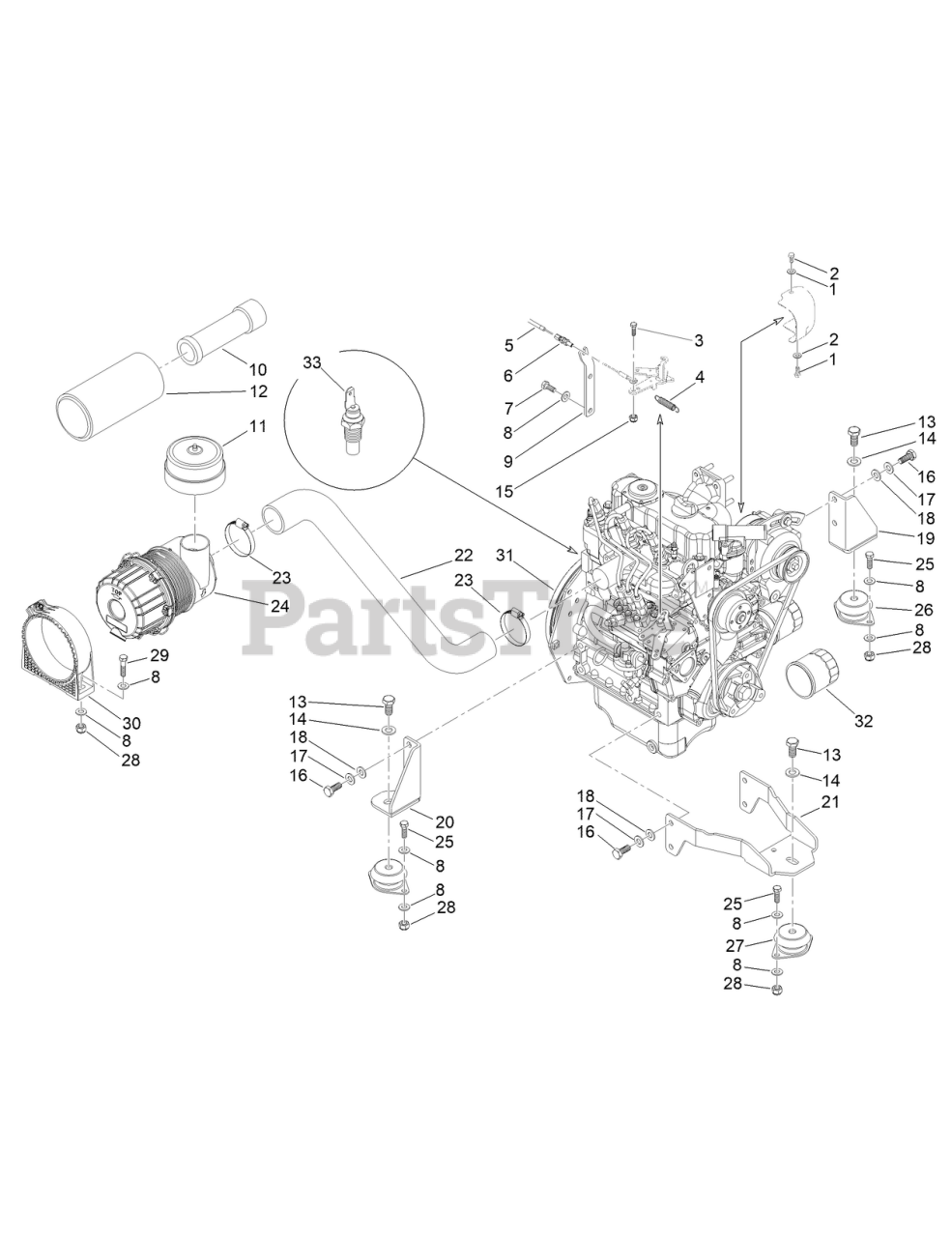

31040 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324000166) (2024) Engine and Air Filter Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

Engine and Air Filter Assembly Parts Diagram

  • Title
1

Toro 134-9104

SCREW-HH, CAP

$

$

Currently unavailable

2

Toro 134-1044

WASHER

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Toro 134-9110

SPRING

$

$

Currently unavailable

5

Toro 134-9163

CABLE, THROTTLE

$

$

Currently unavailable

6

Toro 134-9111

SCREW HH

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Toro 134-1045

WASHER

$

$

Currently unavailable

9

Toro 134-9113

BRACKET, THROTTLE CABLE

$

$

Currently unavailable

10

Toro 134-0576

ELEMENT-AIR FILTER, INNER

$

$

Currently unavailable

11

Toro 134-0567

PREFILTER-AIR

$

$

Currently unavailable

12

Toro 134-0574

CARTRIDGE-FILTER

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Toro 134-1047

WASHER

$

$

Currently unavailable

15

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Toro 134-1051

WASHER

$

$

Currently unavailable

18

Toro 134-1046

WASHER

$

$

Currently unavailable

19

Toro 134-9105

SUPPORT-FRONT, ENGINE RH

$

$

Currently unavailable

20

Toro 134-9108

SUPPORT-FRONT, ENGINE LH

$

$

Currently unavailable

21

Toro 134-9112

ENGINE SUPPORT, REAR

$

$

Currently unavailable

22

Toro 134-9109

HOSE, ENGINE INTAKE

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Toro 134-0575

FILTER-AIR

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Toro 134-9103

SHOCK ABSORBER

$

$

Currently unavailable

27

Toro 134-1157

SHOCK ABSORBER

$

$

Currently unavailable

28

$

$

Currently unavailable

29

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Toro 134-9482

ENGINE

$

$

Currently unavailable

32

Toro 134-9483

OIL-FILTER

$

$

Currently unavailable

33

Toro 134-9849

SENSOR, COOLANT-TEMP

$

$

Currently unavailable
