31040 (H 600) - Toro ProLine Rear-Engine Riding Mower (SN: 324000001 - 324000166) (2024) Cooling Water System Assembly Parts Diagram

ProLine Rear-Engine Riding Mower

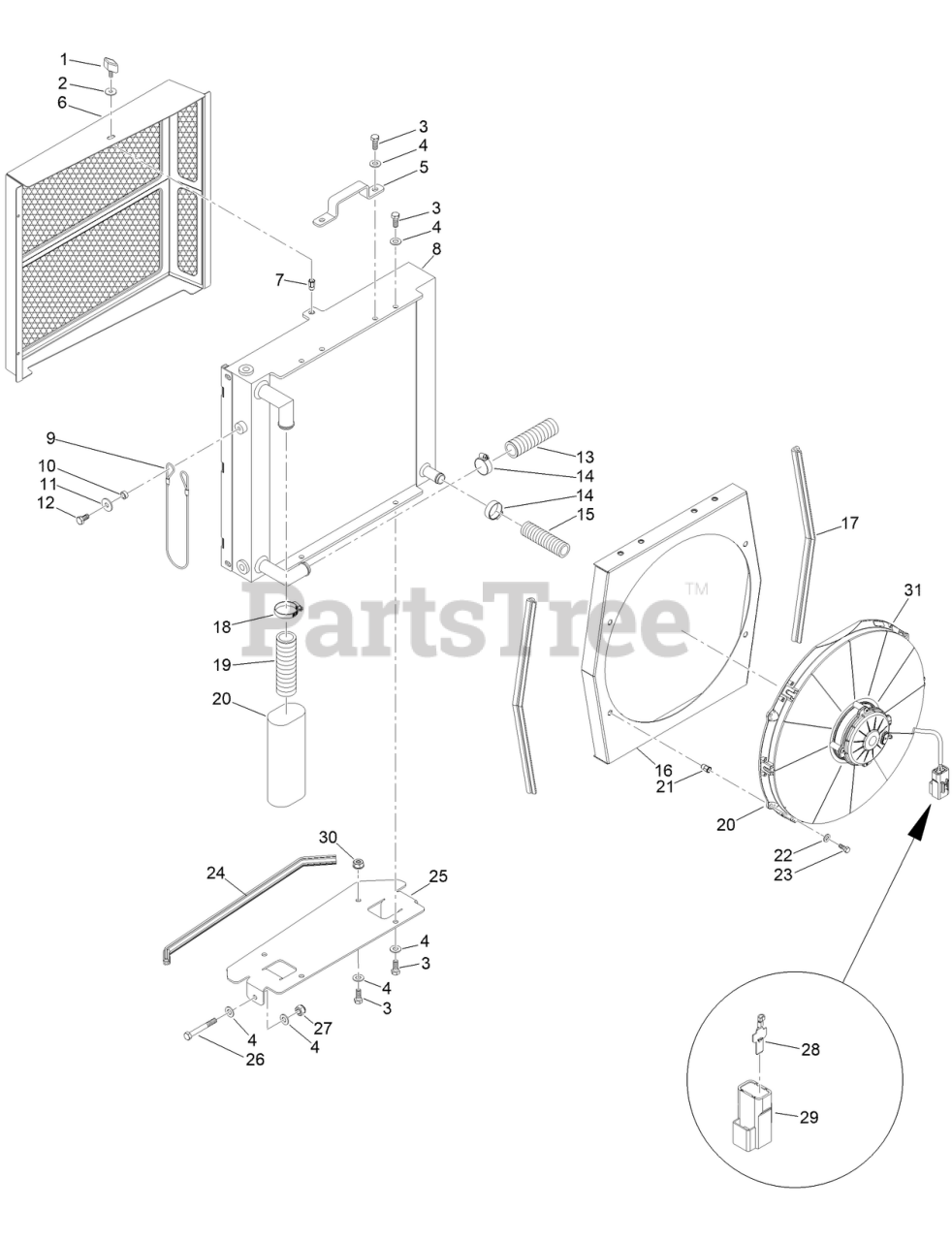

Cooling Water System Assembly Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro 134-1234

WASHER

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Toro 134-1045

WASHER

$

$

Currently unavailable

5

Toro 134-9260

BRACKET, RADIATOR HANDLE

$

$

Currently unavailable

6

Toro 134-9262

GRID, RADIATOR

$

$

Currently unavailable

7

Toro 134-1194

INSERT-THREADED

$

$

Currently unavailable

8

Toro 134-9261

RADIATOR

$

$

Currently unavailable

9

Toro 134-9264

CABLE, RADIATOR

$

$

Currently unavailable

10

Toro 134-9263

SPACER

$

$

Currently unavailable

11

Toro 134-3126

WASHER

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 134-9267

HOSE, RADIATOR

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Toro 134-9268

HOSE, RADIATOR

$

$

Currently unavailable

16

Toro 134-9270

CONVEYOR, RADIATOR

$

$

Currently unavailable

17

Toro 134-9269

GASKET, MM 410

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Toro 134-9265

HOSE, RADIATOR 25X1240

$

$

Currently unavailable

20

Toro 134-9266

HOSE GUARD

$

$

Currently unavailable

21

Toro 134-1257

INSERT-THREADED

$

$

Currently unavailable

22

Toro 134-1044

WASHER

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Toro 134-9272

GASKET, MM 440

$

$

Currently unavailable

25

Toro 134-9273

SUPPORT, RADIATOR

$

$

Currently unavailable

26

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Toro 134-8133

CONNECTOR-TERMINAL

$

$

Currently unavailable

29

Toro 134-8132

CONNECTOR-2WAY

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Toro 134-9271

FAN, RADIATOR

$

$

Currently unavailable
