3100Z/72 (5900510) - Ferris 72" Side-Discharge iCD Mower Deck 72" iCD Mower Deck - Pulleys, Belts & Idler Parts Diagram

72" Side-Discharge iCD Mower Deck

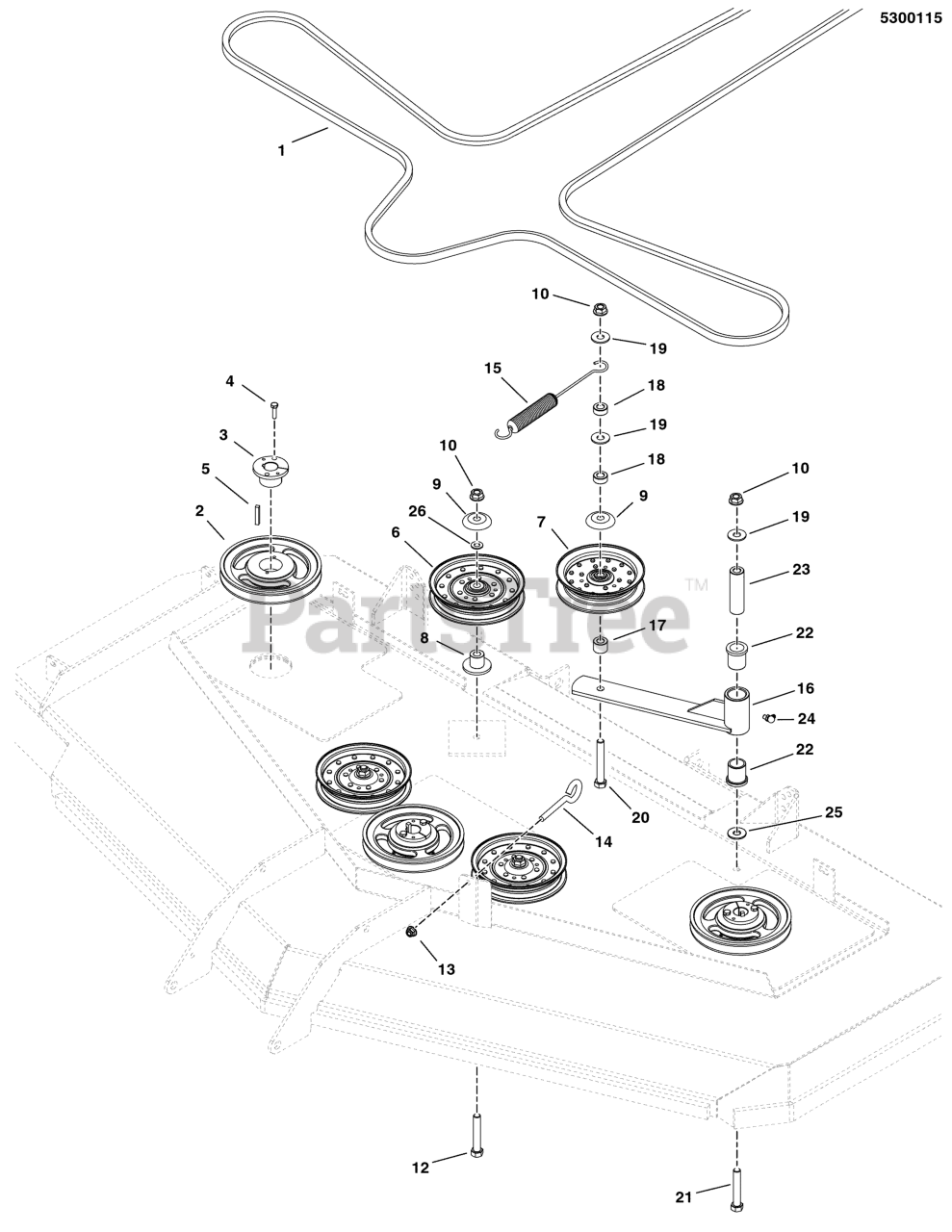

72" iCD Mower Deck - Pulleys, Belts & Idler Parts Diagram

  • Title

1

Ferris 5104059

BELT, SPB/XPB 193.9" EL, LRG ARAMID, 2T
(Superseded to 5104059YP)

$154.99

$

In Stock, only 1 left!

0

2

Ferris 5022794

PULLEY, SPINDLE, BH72
(Superseded to 5022794FS)

$97.99

$

In Stock, only 1 left!

0

3

Ferris 5020819

BUSHING, TAPERED HUB
(Superseded to 5020819SM)

$26.99

$

In Stock, only 2 left!

0

4

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

5

Ferris 5022726

KEY 1/4 SQ X 1 1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 1 left!

0

6

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

7

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

8

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

9

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

10

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

11

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

Note: (Secure Front Two Idler Pulleys)

$5.99

$

In Stock, Qty 11

0

12

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

13

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

15

Ferris 5023340

SPRING-EXT, 1.04 ODX10.535LGX.148WR, BLK
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

16

Ferris 5060001

IDLER ARM ASSEMBLY

$85.99

$

Usually ships in 2-12 days

0

17

Ferris 5101161

SPACER, .52 X 1.00 X .63, CZ
(Superseded to 5101161YP)

$8.99

$

In Stock, only 1 left!

0

18

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

19

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

20

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

21

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 2 left!

0

22

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

23

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

24

Ferris 5025447

GREASE FITTING, 1/4-28, 90 DEGREE
(Superseded to 5025447FS)

$3.99

$

Usually ships in 2-12 days

0

25

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

$3.99

$

In Stock, only 1 left!

0

26

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0
