310 - Husqvarna Automower Robotic Lawn Mower (Original) WHEELS & TIRES Parts Diagram

Automower Robotic Lawn Mower

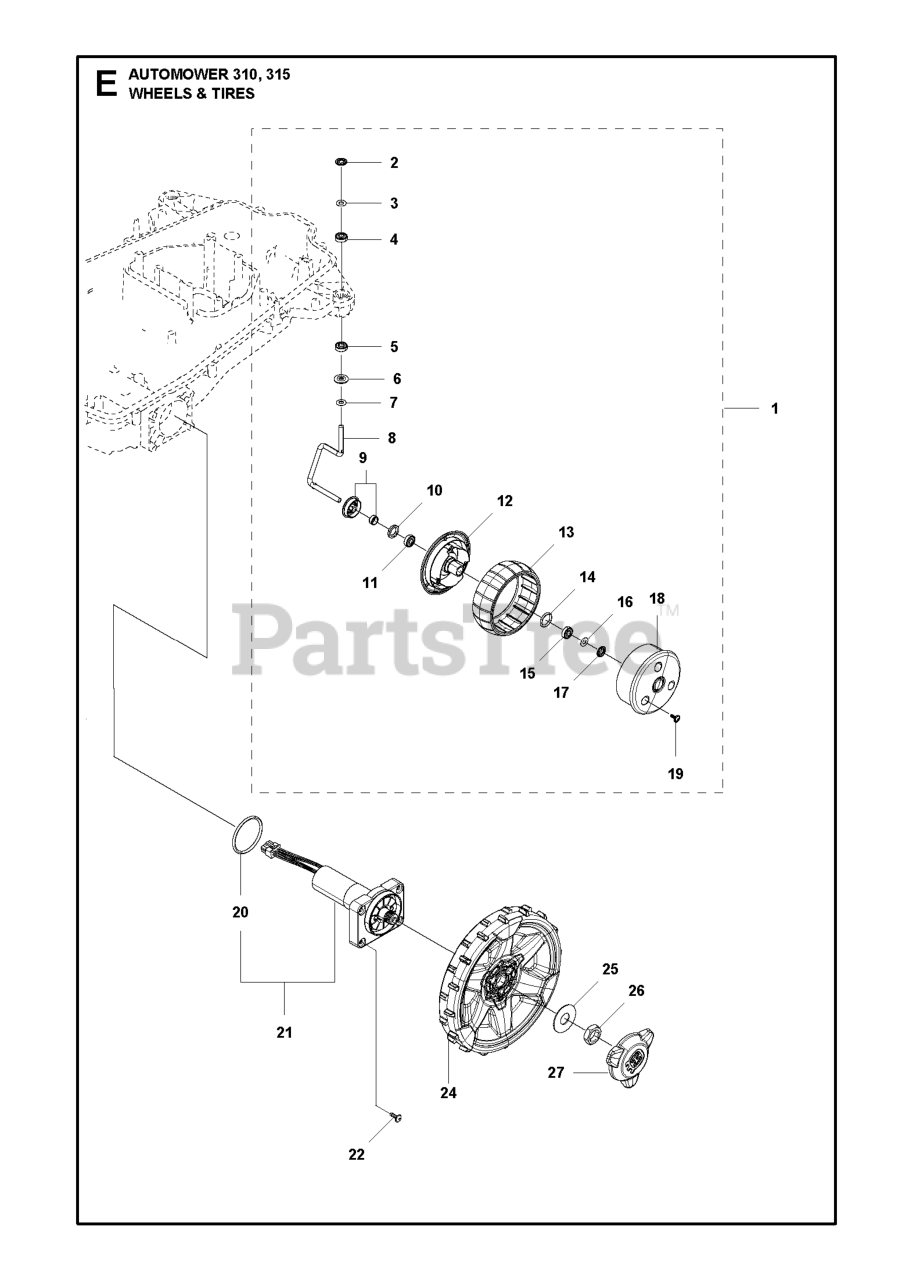

WHEELS & TIRES Parts Diagram

  • Title

1

Husqvarna 587651901

WHEEL KIT FRONT

Note: Front Wheel Assy

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576019402

LOCKWASHER STARLOCK SS 6MM GEO

Note: Lock Washer

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$7.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$7.99

$

Usually ships in 3-10 days

0

6

Husqvarna 535087802

WASHER

Note: Washer

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 585187201

SPINDLE FRONT WHEEL 6 MM

Note: Spindle

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587449301

SHIELD KIT

Note: Shield KIT

$5.99

$

In Stock, only 1 left!

0

10

Husqvarna 580487101

SEALING 12X18X3

Note: Sealing

$5.99

$

In Stock, only 3 left!

0

11

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 579457101

WHEEL FRONT WHEEL INSIDE

Note: Wheel Inside

$5.99

$

In Stock, only 1 left!

0

13

Husqvarna 574449801

WHEEL RUBBER TYRE

Note: Wheel Tyre

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 580445101

O-RING 2,62X15,54

Note: O-ring

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 585214201

BALL BEARING SINGLE ROW S696

Note: Ball Bearing

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585196801

WASHER FRONT WHEEL 6MM

Note: Washer

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 576019402

LOCKWASHER STARLOCK SS 6MM GEO

Note: Lock Washer

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579457201

WHEEL FRONT WHEEL OUTSIDE

Note: Wheel Outside

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 575543314

SCREW 14MM

Note: Screw

$4.99

$

In Stock, Qty 17

0

20

Husqvarna 580443902

O-RING LIGHT GREY

Note: O-ring

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 598587301

NEEDS DESCRIPTION

Note: From Serial number 2028XXXX

$460.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587449404

NEEDS DESCRIPTION

Note: Up to Serial number 2027XXXXX

$170.99

$

In Stock, only 1 left!

0

22

Husqvarna 574450101

SCREW ITXPANT

Note: Screw

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 590217301

NEEDS DESCRIPTION

Note: Rear Wheel

$39.99

$

Usually ships in 3-10 days

0

25

Husqvarna 586210601

WASHER WASHER REAR WHEEL 16X40

Note: Washer

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 731432401

HEXAGON THIN NUT

Note: Thin Nut

$7.99

$

Usually ships in 3-10 days

0

27

Husqvarna 579505502

HUB CAP REAR WHEEL NO CENTER P

Note: Hub Cap

$5.99

$

Usually ships in 3-10 days

0
