310 - Husqvarna Automower Robotic Lawn Mower (Original) CHASSIS UPPER Parts Diagram

Automower Robotic Lawn Mower

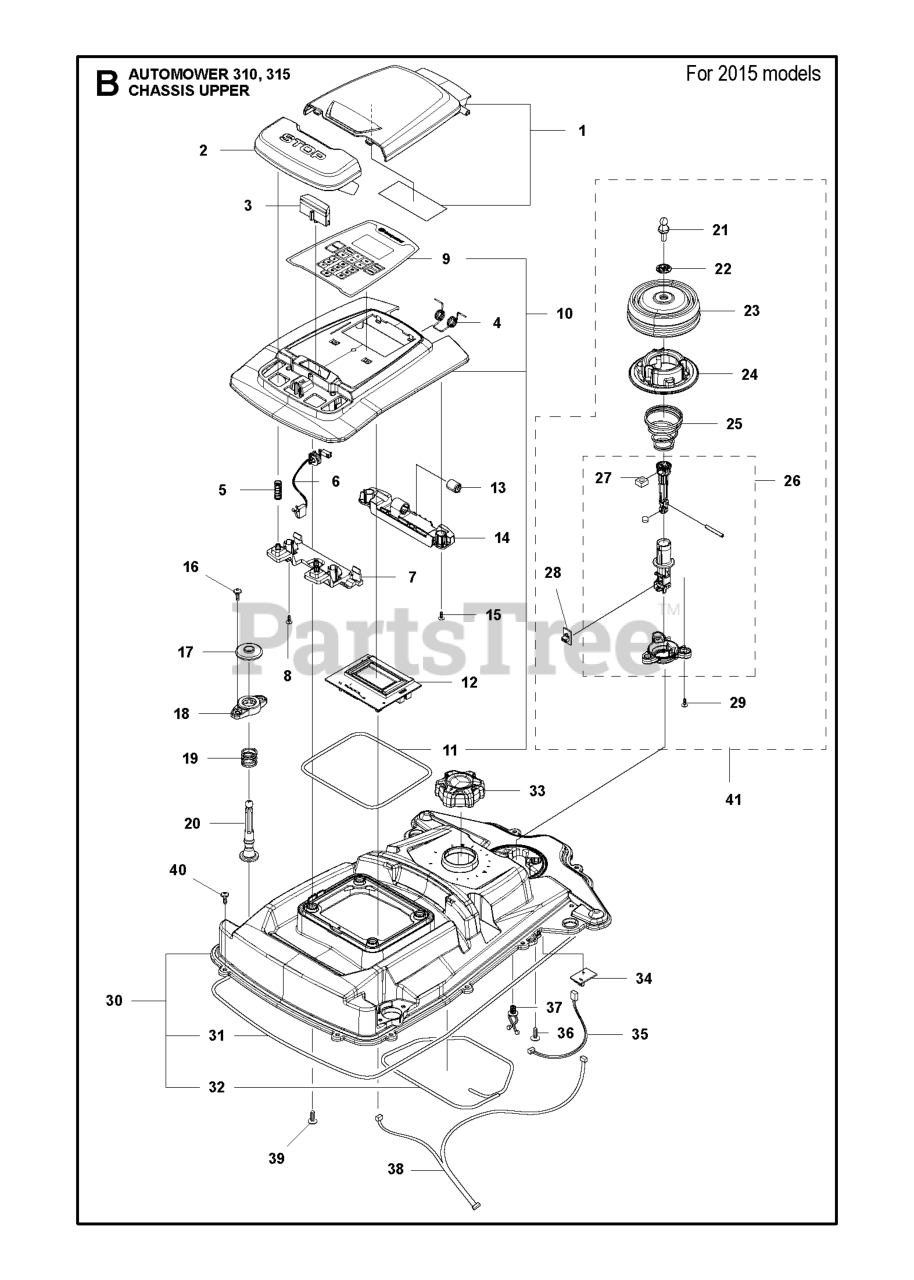

CHASSIS UPPER Parts Diagram

  • Title

1

Husqvarna 587651301

HATCH KIT

$31.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585275601

BUTTON STOP

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 585275901

LOCK

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585255401

TORSION SPRING DT=1,3MM

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 576242201

SPRING LOCK STOP BUTTON

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 574480302

SWITCH STOP BUTTON NO ANCHOR

$31.99

$

Usually ships in 3-10 days

0

7

Husqvarna 585275701

SUPPORT REAR

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 584974501

KEYBOARD 2.1" DISPLAY

Note: 310

$

$

Not available

10

Husqvarna 587449001

COVER KIT 2.1" DISPLAY

Note: 310

$85.99

$

Usually ships in 3-10 days

0

11

Husqvarna 574874708

SEALING STRIP P15 UPPER
(Superseded to 588616101)

$7.99

$

Usually ships in 3-10 days

0

12

Husqvarna 584389701

PRINTED CIRCUIT ASSY PCBA MMI

Note: 310

$

$

Not available

13

Husqvarna 580352302

DAMPER TORSION FA 1100

$

$

Not available

14

Husqvarna 585275401

SUPPORT FRONT

$

$

Not available

15

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

16

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585298201

GASKET COLUMN

$

$

Not available

18

Husqvarna 585298301

HOLDER COLUMN

$

$

Not available

19

Husqvarna 585298101

SPRING 1.8X17.2X20

$

$

Not available

20

Husqvarna 585298001

COLUMN

$

$

Not available

21

Husqvarna 580526701

STUD SNAPLOC

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna 579525701

WASHER JOYSTICK

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 579474601

BELLOWS LIFT-COLLISION

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 579484801

RETAINER COLLISION SPRING

$

$

Not available

25

Husqvarna 580672501

SPRING COLLISION JOYSTICK

$

$

Not available

26

Husqvarna 587448802

JOYSTICK KIT

$22.99

$

Usually ships in 3-10 days

0

27

Husqvarna 503226601

NUT

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 579669001

PRINTED CIRCUIT ASSY PCBA LIFT
(Superseded to 592852301)

$22.99

$

Usually ships in 3-10 days

0

29

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

30

Husqvarna 587448901

CHASSIS KIT UPPER

$

$

Not available

31

Husqvarna 574874709

SEALING STRIP P 15 CHASSI LOW

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 574874708

SEALING STRIP P15 UPPER
(Superseded to 588616101)

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 585281401

KNOB HEIGHT ADJUSTMENT

$9.49

$

Usually ships in 3-10 days

0

34

Husqvarna 592909501

PRINTED CIRCUIT ASSY COLLISION

$26.99

$

Usually ships in 3-10 days

0

35

Husqvarna 585208501

LOOM LIFT, COLLISION

$11.99

$

Usually ships in 3-10 days

0

36

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 580682901

HOLDER TWIST LOCK

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 585208601

LOOM MMI

$

$

Not available

39

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 574450101

SCREW ITXPANT

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 581620903

JOYSTICK KIT

$68.99

$

Usually ships in 3-10 days

0
