310 - Husqvarna Automower Robotic Lawn Mower (2016-01) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

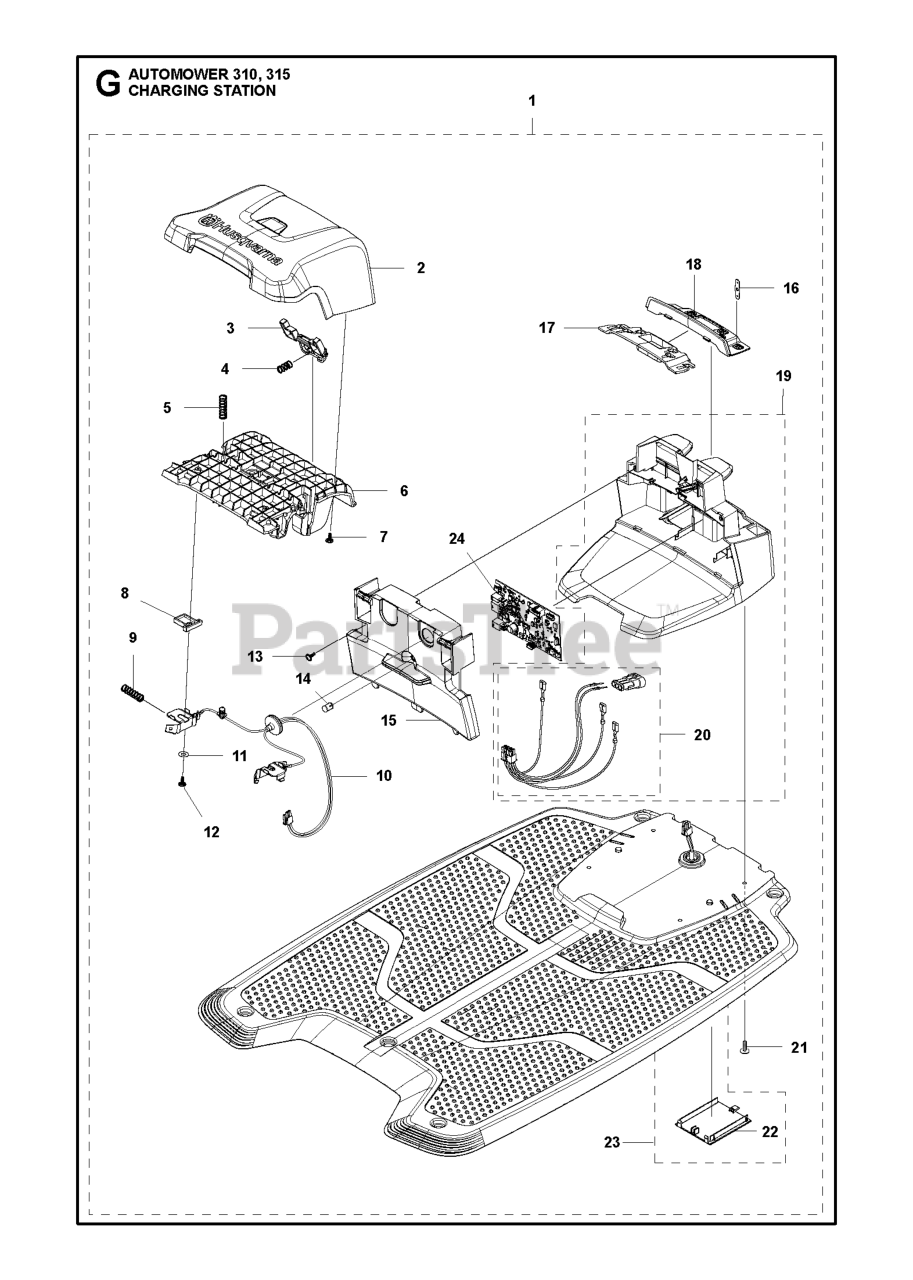

CHARGING STATION Parts Diagram

  • Title

20

Husqvarna 587651501

LOOM KIT GENERATOR BOARD

$22.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585071401

LID CHARGING STATION

$28.99

$

Usually ships in 3-10 days

0

4

Husqvarna 574487001

SPRING STOP BUTTON

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 580511401

SPRING SPRING CAP

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 580511401

SPRING SPRING CAP

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588416101

HOUSING ASSY CHARGING STATION

$91.99

$

Usually ships in 3-10 days

0

14

Husqvarna 535128702

LENS
(Superseded to 590217201)

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 587651602

CHARGING PLATE KIT

$102.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

10

Husqvarna 585539501

LOOM CHARGING CONTACTS

$136.99

$

Usually ships in 3-10 days

0

24

Husqvarna 584926401

PRINTED CIRCUIT ASSY PCBA CS B
(Superseded to 592909302)

$159.99

$

Usually ships in 3-10 days

0

22

Husqvarna 585919301

COVER CHARGING PLATE

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 579459801

PAN CHARGING STATION 320, ONE

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

2

Husqvarna 585071102

CAP CHARGING STATION

$34.99

$

Usually ships in 3-10 days

0

18

Husqvarna 579459901

HOLDER CHARGING STATION

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 580504101

TERMINAL TERMINAL CHARGING STA

$9.49

$

In Stock, only 4 left!

0

3

Husqvarna 579462402

BUTTON CHARGING STATION, RELEA

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

6

Husqvarna 579458004

FRAME CHARGING STATION

$20.99

$

In Stock, only 1 left!

0

8

Husqvarna 579460501

DISTANCE CHARGING STATION
(Superseded to 579460502)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 734113741

WASHER

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

1

Husqvarna 585164001

CHARGING STATION AUTOMOWER P15

$341.99

$

Usually ships in 3-10 days

0
