310 D (1600045) - AGCO Lawn Tractor, 10hp Steering System Group - Front Axle & Wheels (1505I20) Parts Diagram

Lawn Tractor, 10hp

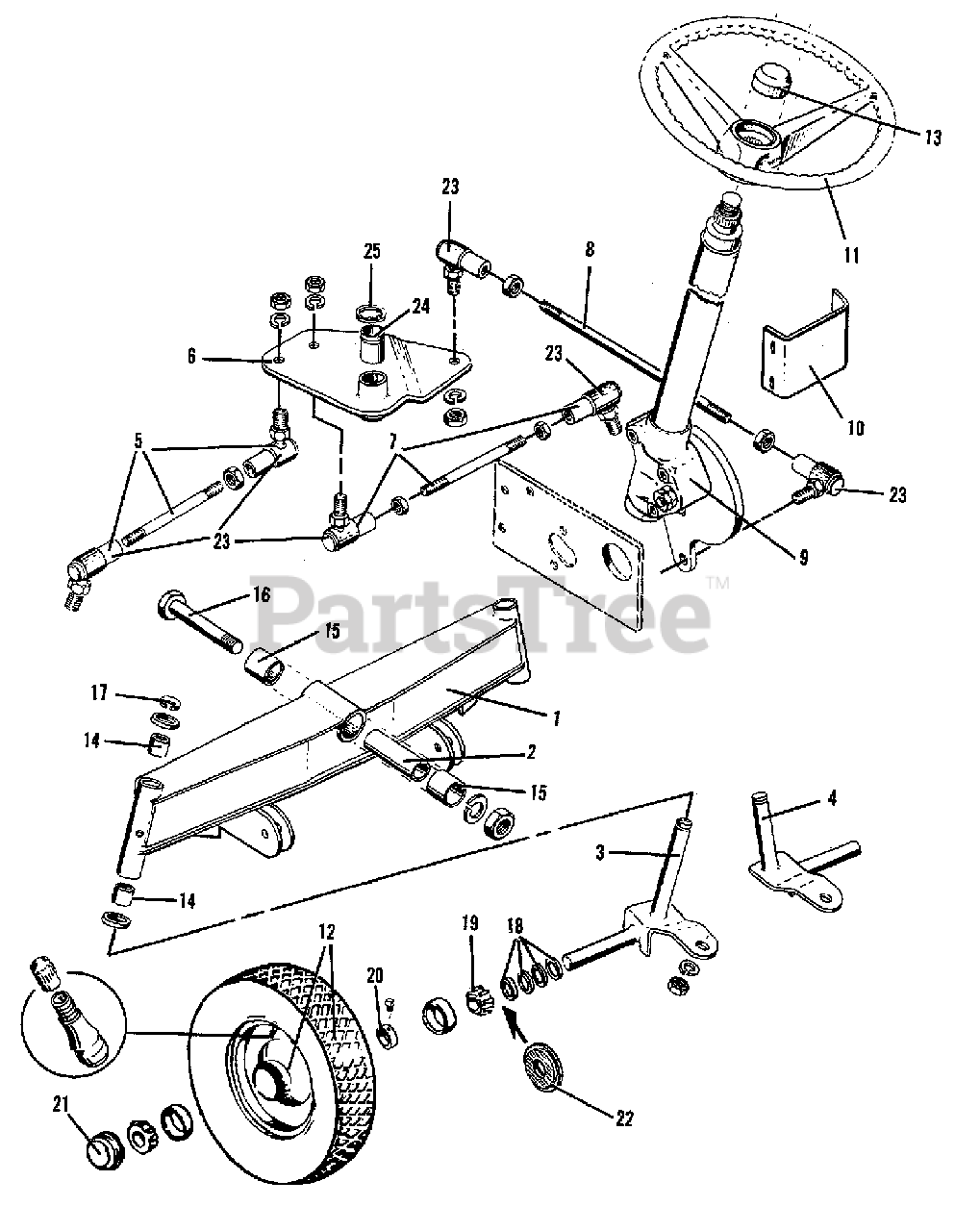

Steering System Group - Front Axle & Wheels (1505I20) Parts Diagram

  • Title

1

Simplicity 1607592

AXLE ASSEMBLY, Front (Includes Item 15)

$

$

Not available

1

Simplicity 9002040

FITTING, Lube (Packaging Of 10)

$

$

Not available

2

Simplicity 1601849

SLEEVE, Axle

$

$

Not available

2

Simplicity 2819332

LOCKWASHER, 3/4

$

$

Not available

2

Simplicity 2813160

NUT, 3/4 NC

$

$

Not available

3

Simplicity 1601864

SPINDLE ASSEMBLY, L.H.

$

$

Not available

3

Simplicity 919389

WASHER, Plain, 49/64 x 1-3/8 x 23 Ga.

$

$

Not available

4

Simplicity 1601865

SPINDLE ASSEMBLY, R.H.

$

$

Not available

4

Simplicity 919389

WASHER, Plain, 49/64 x 1-3/8 x 23 Ga.

$

$

Not available

5

Simplicity 1601891

LINK ASSEMBLY, Drag (L.H.) (Includes 2 of Item 31)

$

$

Not available

5

Simplicity 2819262

NUT, Jam, 1/2NF

$

$

Not available

5

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

5

Simplicity 919423

NUT, 1/2

$

$

Not available

6

Simplicity 1606152

CRANK ASSEMBLY, Bell

$

$

Not available

6

Simplicity 919393

WASHER, Plain 1-1/64 x 1-5/8 x 12 Ga.

$

$

Not available

7

Simplicity 1603462

LINK ASSEMBLY, Drag (R.H.) (Includes 2 of Item 31)

$

$

Not available

7

Simplicity 2819262

NUT, Jam, 1/2NF

$

$

Not available

7

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

7

Simplicity 919423

NUT, 1/2 NF

$

$

Not available

8

Simplicity 1601862

ROD, Tie

$

$

Not available

8

Simplicity 2819262

NUT, Jam, 1/2NF

$

$

Not available

8

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

8

Simplicity 919423

NUT, 1/2 NF

$

$

Not available

9

*

$

$

Not available

9

Simplicity 2808127

CAPSCREW, 3/8 NC x 3/4

$

$

Not available

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 1603396

BRACE, Steering Gear

$

$

Not available

10

Simplicity 2807731

CAPSCREW, 3/8 NC x 1

$

$

Not available

10

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

10

Simplicity 2816950SM

NUT, 3/8 NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 924607

WASHER, Plain, 13/32 x 21/32 x 1/16

$

$

Not available

11

Simplicity 1601842

WHEEL, Steering

$

$

Not available

12

Simplicity 1602316

WHEEL ASSEMBLY, (F/16 x 6.50-8 Tubeless Type Tire)

$

$

Not available

12

Simplicity 1602320

WHEEL ASSEMBLY, (F/4.80.4.00=8 Tube Type Tire)

$

$

Not available

12

Simplicity 328002

CUP, Bearing

$

$

Not available

12

Simplicity 2172353SM

VALVE ASSEMBLY, Stem & Cap (Tubeless Tire)
(Superseded to 024373MA)

$

$

Not available

12

Simplicity 2164247SM

TUBE, Tire (F/16 x 6.50-8 Tubeless Type Repair)

$40.99

$

Usually ships in 2-12 days

0

12

Simplicity 2153038SM

TUBE, Tire (F/4.80.4.00=8 Tube Type Tire)

$35.99

$

Usually ships in 2-12 days

0

13

Simplicity 1602384

CAP, Steering Wheel

$

$

Not available

14

Simplicity 2025649

BUSHING

$

$

Not available

15

Simplicity 1601850

BEARING, Sleeve

$

$

Not available

16

Simplicity 1604413

CAPSCREW, 3/4NC x 4-1/2 (Special Thread Length

$

$

Not available

17

Simplicity 2026524

RING, Retaining

$

$

Not available

18

Simplicity 2025353

WASHER

$

$

Not available

19

Simplicity 327527

BEARING ASSEMBLY, Cone Roller

$

$

Not available

20

Simplicity 2025717

COLLAR ASSEMBLY, Set (Includes SETSCREW)

$

$

Not available

20

Simplicity 2811712

SETSCREW, 5/16NC x 5/16 Socket Head)

$

$

Not available

21

Simplicity 2025872

CAP, Hub

$

$

Not available

22

Simplicity 2170168SM

SEAL

$38.99

$

Usually ships in 2-12 days

0

23

Simplicity 1677206SM

JOIN ASSEMBLY, Ball

$49.99

$

Usually ships in 2-12 days

0

24

Simplicity 1601831SM

BEARING, Sleeve

$

$

Not available

25

Simplicity 1605187

RING, Retaining (External)

$

$

Not available
