310 BVr (41ES310G034) - Ryobi Blower Vacuum Blower Vac Parts Parts Diagram

Blower Vacuum

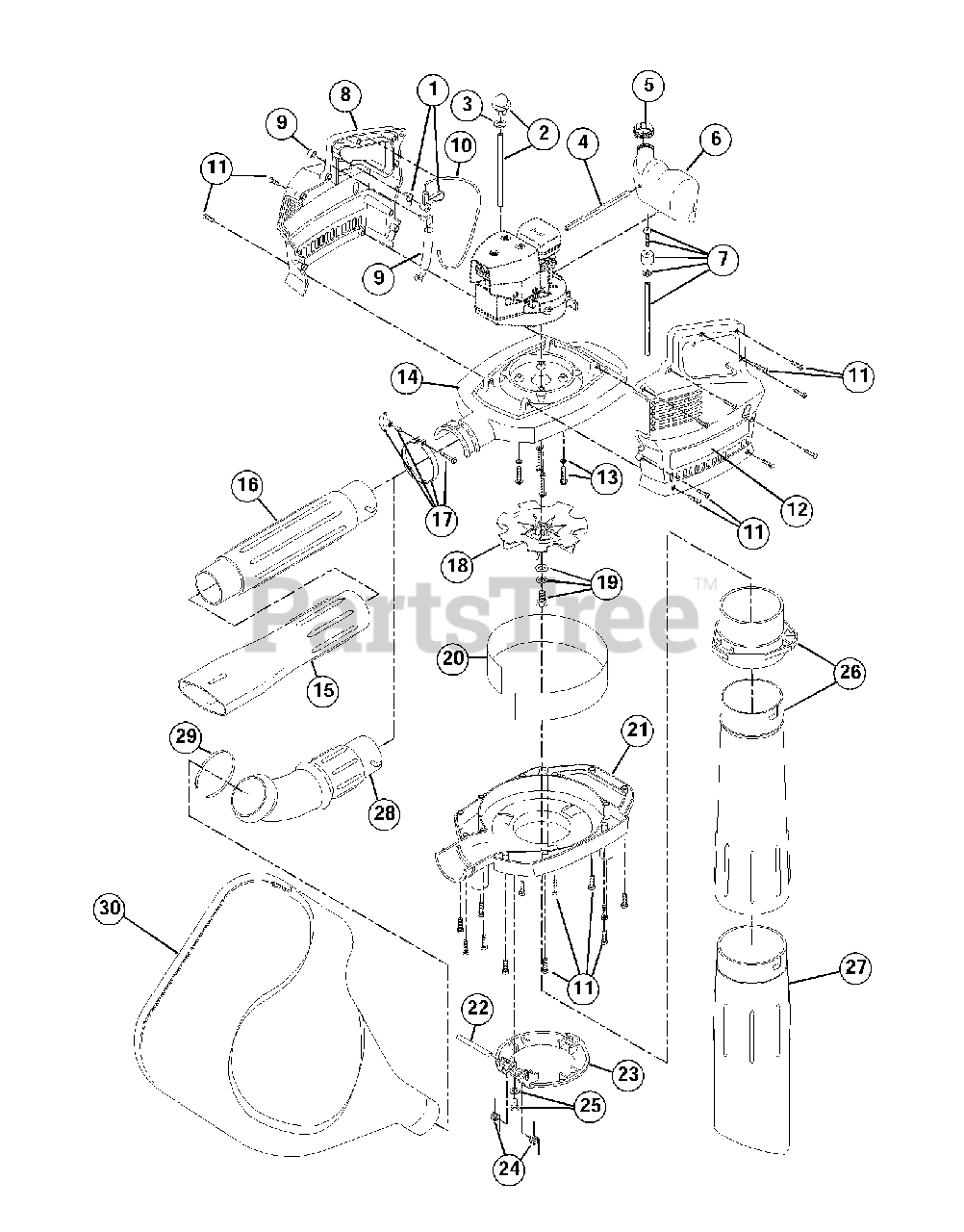

Blower Vac Parts Parts Diagram

  • Title

1

MTD 791-00036

Trigger Assembly

$

$

Not available

2

MTD 791-147351

Primer Bulb and Hose Assembly

$

$

Not available

3

MTD 791-181671

Primer Washer

$

$

Not available

4

MTD 791-181168

Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

5

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

6

MTD 791-147350

Complete Fuel Tank Assembly

Note: (includes 4, 5 & 7)

$

$

Not available

7

MTD 791-147036

Fuel Line Assembly

$

$

Not available

8

MTD 791-180484

R.H. Engine Cover

$

$

Not available

9

MTD 791-180450

Switch and Lead Assembly

$

$

Not available

10

MTD 791-00029

Throttle Wire

$

$

Not available

11

MTD 791-181345

Screws

$4.49

$

In Stock, only 4 left!

0

12

MTD 791-180485

L.H. Engine Cover

$

$

Not available

13

MTD 791-180058

Mounting Screw Assembly

$

$

Not available

14

MTD 791-180478

Upper Blower Housing

$

$

Not available

15

MTD 791-180469

Blower Tube W/Nozzle

$

$

Not available

16

MTD 791-180480

Blower Tube

$

$

Not available

17

MTD 791-180481

Clamp Assembly

$

$

Not available

18

MTD 791-147353

Impeller

$

$

Not available

19

MTD 791-181514

Mounting Bolt Assembly

$

$

Not available

20

MTD 791-181586

Impact Shield

$

$

Not available

21

MTD 791-180487

Lower Blower Housing

$

$

Not available

22

MTD 791-181516

Hinge Shaft

$

$

Not available

23

MTD 791-181523

Intake Cover

$

$

Not available

24

MTD 791-147051

Spring Set

$

$

Not available

25

MTD 791-181515

Mounting Screw Assembly

$

$

Not available

MTD 791-682075

Shoulder Strap
(Superseded to 791-682075B)

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147543

2-Cycle Oil

Note: Optional Accessory; Not Shown

$

$

Not available

26

MTD 791-180712

Upper Vacuum Tube and Adapter

Note: Vacuum Parts

$

$

Not available

27

MTD 791-180467

Lower Vacuum Tube

Note: Vacuum Parts

$38.99

$

In Stock, only 4 left!

0

28

MTD 791-180489

Elbow

Note: Vacuum Parts

$

$

Not available

29

MTD 791-612930

Clamp

Note: Vacuum Parts

$10.99

$

Usually ships in 3-6 days

0

30

MTD 791-180490

Vacuum Bag Assembly

Note: (includes 28 & 29); Vacuum Parts

$65.99

$

Usually ships in 3-6 days

0
