310 BVr (41DS310G034) - Ryobi Blower Vacuum Blower/Vacuum Parts Parts Diagram

Blower Vacuum

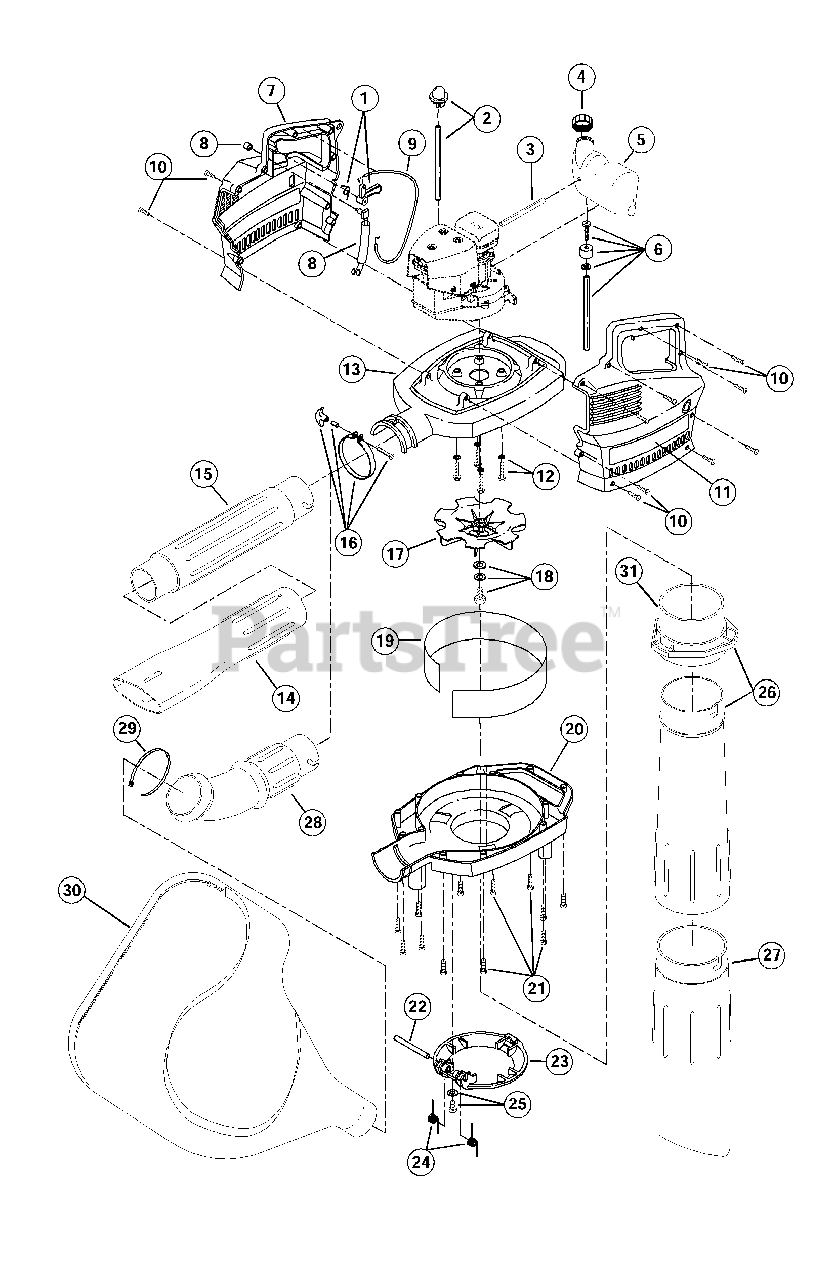

Blower/Vacuum Parts Parts Diagram

  • Title
1

MTD 791-00036

Trigger Assembly

$

$

Not available

2

MTD 791-683974B

Primer Bulb and Hose Assembly

$22.99

$

In Stock, Qty 17

0

3

MTD 791-181168

Return Line Assembly
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 19

0

4

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 10

0

5

MTD 791-147350

Complete Fuel Tank Assembly

Note: (includes 6)

$

$

Not available

6

MTD 791-147036

Fuel Line Assembly

$

$

Not available

7

MTD 791-180484

R.H. Engine Cover

$

$

Not available

8

MTD 791-180450

Switch and Lead Assembly

$

$

Not available

9

MTD 791-00029

Throttle Wire and Housing Assembly

$

$

Not available

10

MTD 791-147049

Mounting Screw Assembly

$16.99

$

Usually ships in 3-6 days

0

11

MTD 791-180485

L.H. Engine Cover

$

$

Not available

12

MTD 791-180058

Mounting Screw Assembly

$

$

Not available

13

MTD 791-180478

Upper Blower Housing

$

$

Not available

14

MTD 791-180469

Blower Tube/w Nozzle

$

$

Not available

15

MTD 791-180480

Blower Tube

$

$

Not available

16

MTD 791-180481

Clamp Assembly

$

$

Not available

17

MTD 791-147353

Impeller

$

$

Not available

18

MTD 791-181514

Mounting Bolt Assembly

$

$

Not available

19

MTD 791-181586

Impact Shield

$

$

Not available

20

MTD 791-180487

Lower Blower Housing

$

$

Not available

21

MTD 791-147049

Mounting Bolt Assembly

$16.99

$

Usually ships in 3-6 days

0

22

MTD 791-181516

Hinge Shaft

$

$

Not available

23

MTD 791-181543

Intake Cover

$

$

Currently unavailable

24

MTD 791-147051

Spring Set

$

$

Not available

25

MTD 791-181515

Mounting Screw Assembly

$

$

Not available

26

MTD 791-180712

Upper Vacuum Tube and Adapter

Note: Vacuum Parts

$

$

Not available

27

MTD 791-180467

Lower Vacuum Tube

Note: Vacuum Parts

$38.99

$

In Stock, only 4 left!

0

28

MTD 791-180489

Elbow

Note: Vacuum Parts

$

$

Not available

29

MTD 791-612930

Clamp

Note: Vacuum Parts

$10.99

$

Usually ships in 3-6 days

0

30

MTD 791-180490

Vacuum Bag Assembly

Note: (includes 28 & 29); Vacuum Parts

$

$

Not available

31

MTD 791-181553

Adapter-Upper Vacuum Tube

Note: Vacuum Parts

$

$

Not available

MTD 791-682075B

Shoulder Strap

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147543

Ryobi 2-Cycle Oil

Note: Optional Accessory; Not Shown

$

$

Not available
