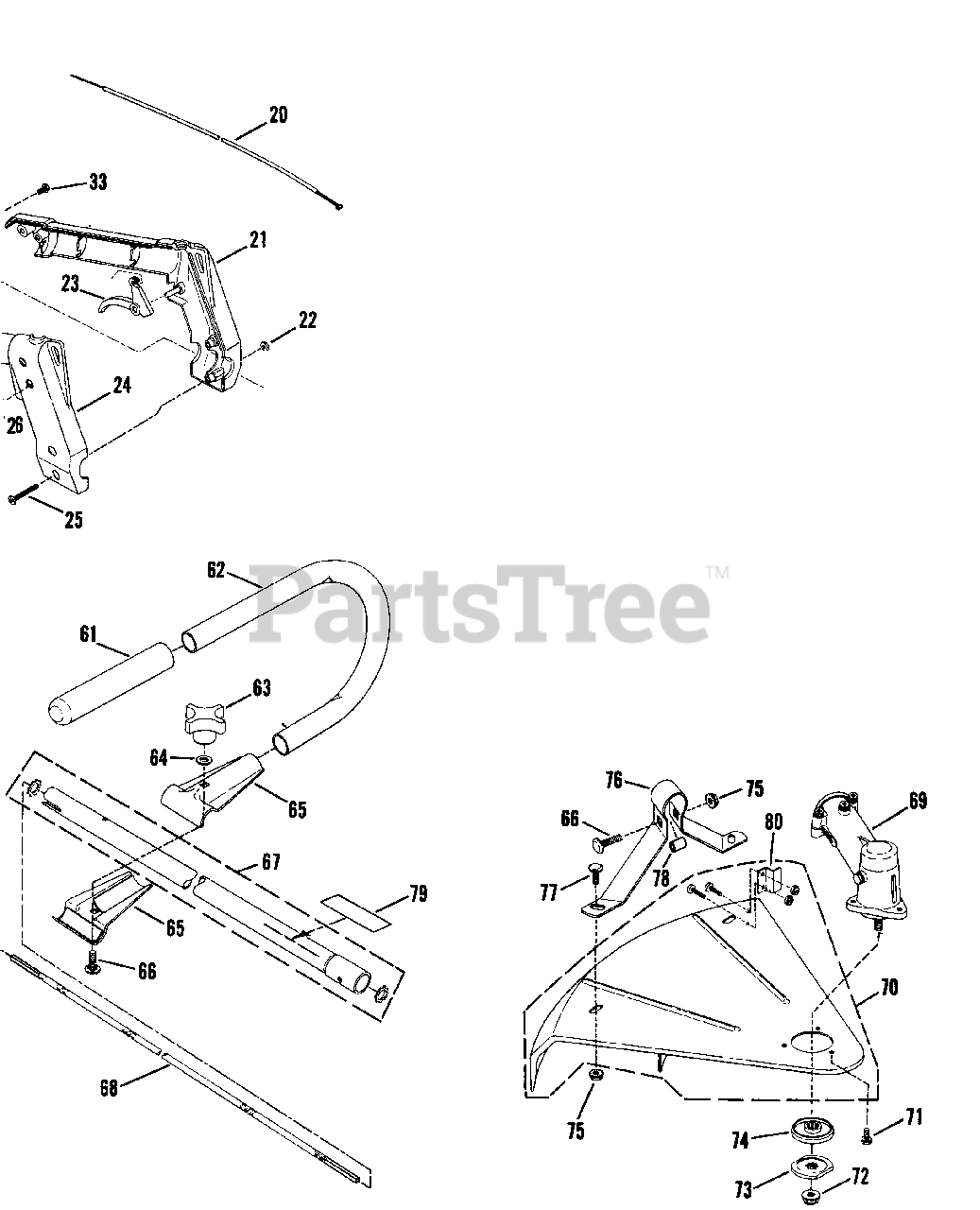

310 (84031) - Snapper String Trimmer 310 General Assembly (Part 2) Parts Diagram

String Trimmer

310 General Assembly (Part 2) Parts Diagram

  • Title

20

Snapper 7015088

CABLE, Throttle

$

$

Not available

21

Snapper 7019761

HANDLE, Left Half

$

$

Not available

22

Snapper 7090885

LOCKNUT, #10-32

$

$

Not available

23

Snapper 7018854

TRIGGER

Note: Was 18726

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7017003

HANDLE, Right Half

Note: Was 19760

$

$

Not available

25

Snapper 7090883

SCREW, #10-32x7/8"

$

$

Currently unavailable

26

Snapper 7090884

SCREW, #10-16x3/4"

$

$

Currently unavailable

33

Snapper 7042017

SCREW, Pully Retainer

$

$

Currently unavailable

61

Snapper 7015070

GRIP, "J" HANDLE

$

$

Currently unavailable

62

Snapper 7036137

HANDLE, "J"

$

$

Currently unavailable

63

Snapper 7015087

KNOB

$

$

Currently unavailable

64

Snapper 7090188

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

65

Snapper 7051554

CLAMP, Half

$

$

Currently unavailable

66

Snapper 7091612

SCREW, 5/16Cx1 1/2"
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, Qty 12

0

67

Snapper 57389

ASSEMBLY, Liner & Tubing

$

$

Currently unavailable

68

Snapper 7015090

SHAFT, Flex (54.375" x .245", .268" Square Ends x 1")

$

$

Not available

69

Snapper 7043005

GEAR HEAD

Note: Was 18713

$

$

Not available

70

Snapper 7068098

SHIELD ASSEMBLY

Note: Was 51553

$

$

Currently unavailable

71

Snapper 7043963

BOLT, Hex Head
(Superseded to 7043963YP)

$3.49

$

Usually ships in 2-12 days

0

72

Snapper 7043911

LOCKNUT

$

$

Not available

73

Snapper 7015682

HOLDER (B)
(Superseded to 7015682YP)

Note: Was 43907

$43.99

$

Usually ships in 2-12 days

0

74

Snapper 7015681

HOLDER (A)
(Superseded to 7015681YP)

Note: Was 43997

$4.99

$

Usually ships in 2-12 days

0

75

Snapper 7091601

LOCKNUT, 5/16-18 Hex
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

76

Snapper 7036154

BRACE, Shield
(Superseded to 7036154YP)

Note: Was 36136

$15.99

$

Usually ships in 2-12 days

0

77

Snapper 7090731

CARRIAGE BOLT, 5/16Cx1/2"
(Superseded to 703798)

Note: Was 90004

$4.49

$

Usually ships in 2-12 days

0

78

Snapper 7015174

SPACER

$

$

Currently unavailable

79

Snapper 7015169

DECAL-WARNING

$

$

Currently unavailable

80

Snapper 68003

LINE CUTTER KIT

Note: (Hardware incl.)

$

$

Currently unavailable

81

Snapper 68029

REPLACEMENT ENGINE

Note: (Not Shown)

$

$

Currently unavailable
