310 (211-310-010) - MasterCut by MTD Tiller (1991) (Skaggs Alpha Beta) Parts02 Parts Diagram

Tiller

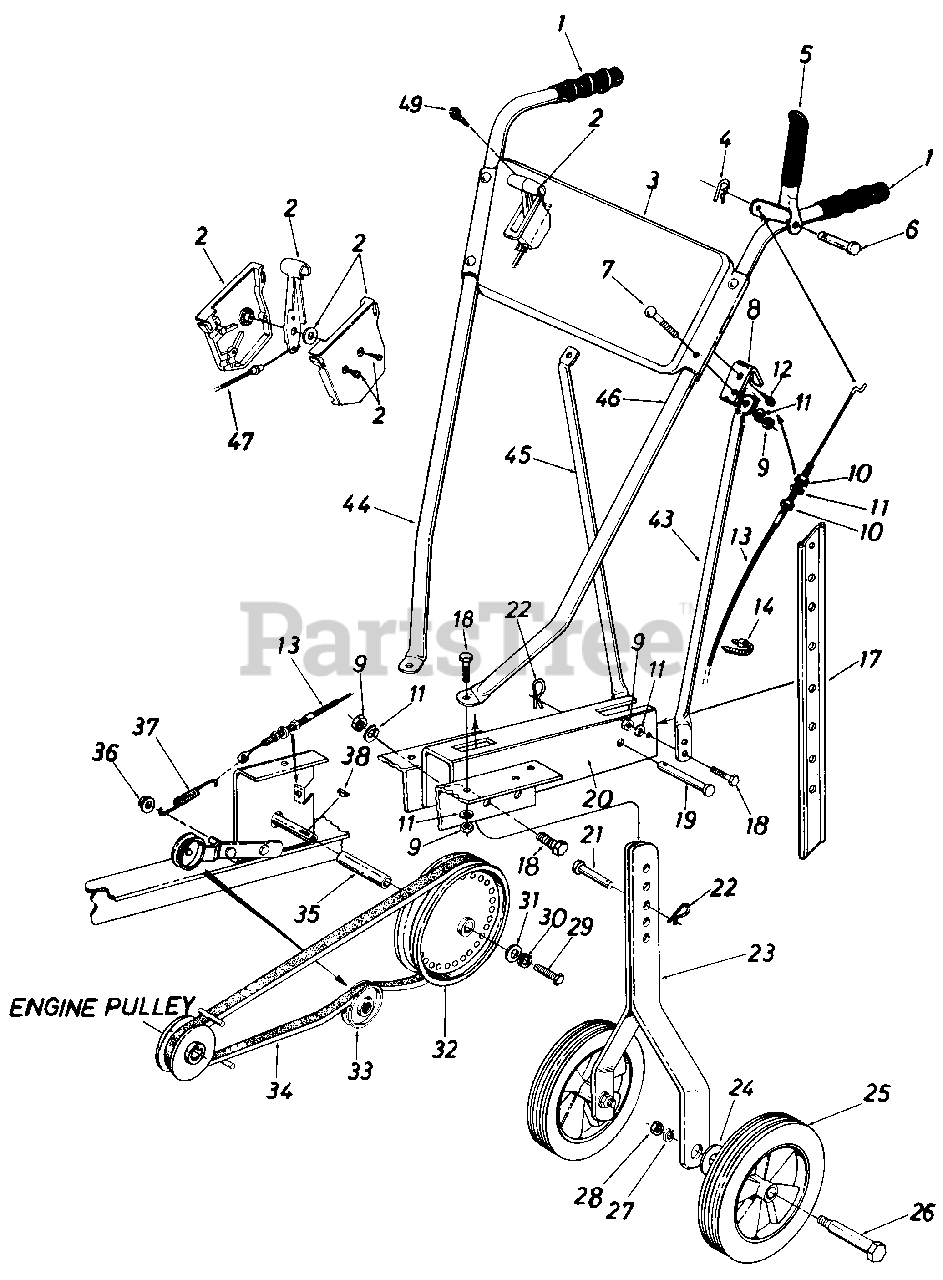

Parts02 Parts Diagram

  • Title

1

MTD 720-0204

Grip

$13.99

$

Usually ships in 3-6 days

0

2

MTD 831-0823A

Throttle Control Box

$32.99

$

In Stock, Qty 20+

0

3

MTD 784-0036A

Handle Panel

$

$

Not available

4

MTD 714-0104

Int. Cotter Pin

$4.49

$

In Stock, Qty 20+

0

5

MTD 784-0008

Clutch Grip Ass'y.

$

$

Not available

6

MTD 711-0415

Clevis Pin

$4.99

$

In Stock, Qty 20+

0

7

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

8

MTD 15093C

Cable Support Brkt.

$

$

Not available

9

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0256

Hex Jam Nut 5/16-24 Thd.

$

$

Not available

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

13

MTD 746-0508

Clutch Control Cable
(Superseded to 946-0508)

$

$

Not available

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

17

MTD 04668

Depth Bar

$

$

Not available

18

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

MTD 711-0761

Clevis Pin 1/2" Dia. x 2.50" Lg.

$19.99

$

In Stock, only 4 left!

0

20

MTD 784-0005

Tailpiece Ass'y.

$

$

Not available

21

MTD 711-0755

Clevis Pin 818n Dia. x 2.50" Lg.
(Superseded to 911-0755)

$

$

Not available

22

MTD 714-0149B

Hairpin Cotter

$4.49

$

In Stock, Qty 18

0

23

MTD 06813

Wheel Bracket Ass'y.

$

$

Not available

24

MTD 736-0253

Belleville Wash. 1/2" I.D.

$3.99

$

In Stock, Qty 20+

0

25

MTD 734-0968

Wheel Ass'y. Comp.-Plastic
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

MTD 734-0585

Wheel Ass'y. Comp.-Steel
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

MTD 741-0116

Wheel Bearing

Note: (Used w/Steel Wheel)

$

$

Not available

26

MTD 738-0318

Shoulder Bolt

$

$

Not available

27

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

28

MTD 712-0200A

Hex Nut 1/2-20 Thd.*

$4.49

$

In Stock, only 1 left!

0

29

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

30

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

MTD 736-0176

Fl-Wash. .25" I.D. x .930n O.D.

$4.99

$

In Stock, only 4 left!

0

32

MTD 756-0389A

Pulley 6.00" O.D.

$

$

Not available

33

MTD 756-0137

Idler Pulley

$

$

Not available

34

MTD 754-0190

"V"-Belt 1/2" Pitch x 39" Lg.
(Superseded to 954-0190)

$32.99

$

In Stock, Qty 5

0

35

MTD 750-0472

Spacer

$

$

Not available

36

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

37

MTD 732-0387

Extension Spring

$

$

Not available

38

MTD 714-0388

Hi-Pro Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

43

MTD 749-0633

Handle Support Bracket-L.H.

$

$

Not available

44

MTD 749-0626

Handle Bar-R.H.

$

$

Currently unavailable

45

MTD 749-0632

Handle Support Bracket-R.H.

$

$

Currently unavailable

46

MTD 749-0627

Handle Bar-L.H.

$

$

Not available

47

MTD 746-0503

Throttle Control Cable-35"
(Superseded to 946-0503)

$

$

Not available

49

MTD 710-0779A

Self-Tap Scr. #10 x 1/2" Lg.

$4.49

$

In Stock, Qty 12

0
