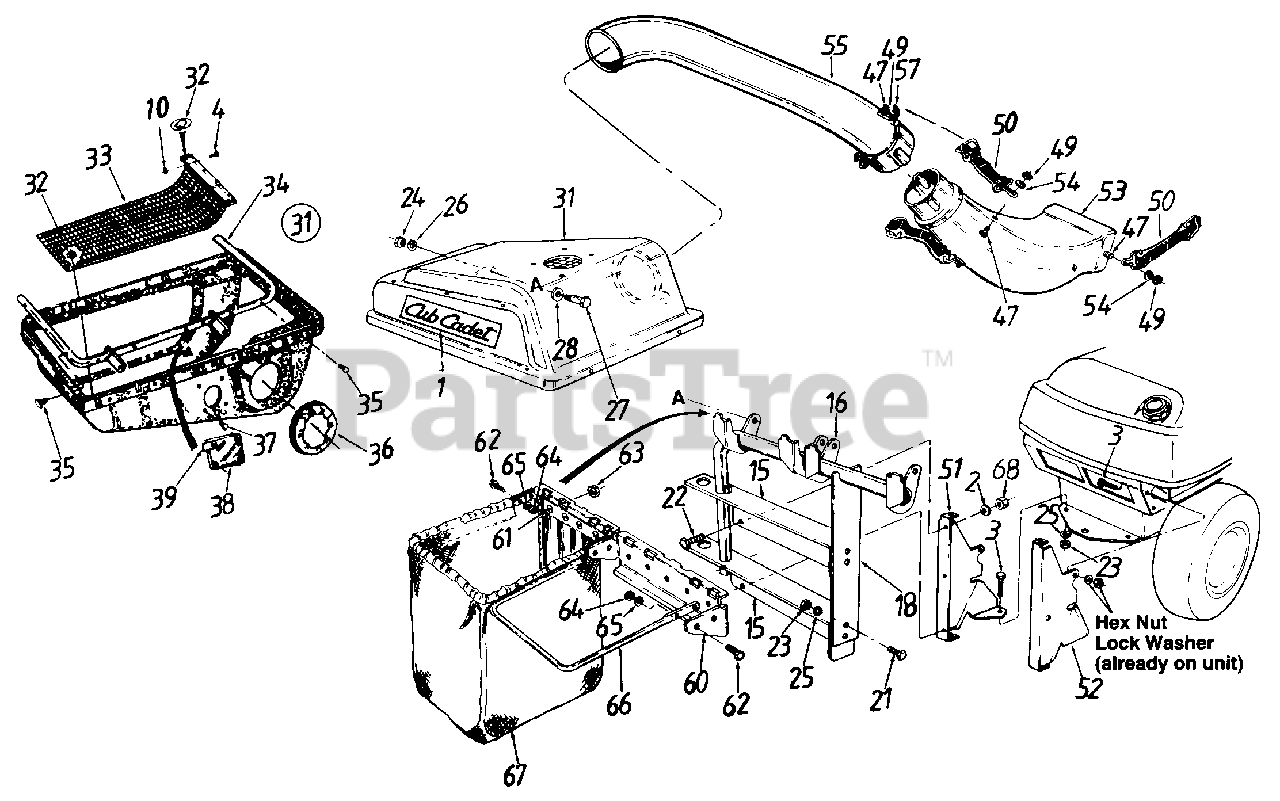

310 (190-310-100) - Cub Cadet Twin Bagger (1993) Grass Collector Parts Diagram

Twin Bagger

Grass Collector Parts Diagram

  • Title
1

Cub Cadet 731-3069

Cub Cadet Name Plate

$

$

Not available

2

Cub Cadet 736-3020

Fl-Wash. 1/4" I.D.

$6.99

$

In Stock, Qty 9

0

3

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, only 4 left!

0

4

Cub Cadet 728-0123

Pop Rivet .188 Dia.
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0400

Flat Wash. 1/4" I.D.

$5.49

$

In Stock, Qty 14

0

15

Cub Cadet 16587B

Catcher Support Tube Mtg. Brkt.
(Superseded to 16587D-0637)

Variations

Cub Cadet 16587B-0637

Mounting Bracket - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 16592

Catcher Support Tube Ass'y.
(Superseded to 16592-0637)

Variations

Cub Cadet 16592-0637

Support Tube Assembly, Black - POWDER BLACK (0637)

$194.99

$

Usually ships in 3-6 days

0

$194.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 16593A

Catcher Latch and Support Brkt.
(Superseded to 783-0601-0637)

Variations

Cub Cadet 16593A-0637

Support Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0751

Hex Bolt 1/4-20 x .62" Lg.-Grade 5

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 738-0380

Shld. Bolt 3/8-16 x .50" Dia.

$7.99

$

In Stock, only 1 left!

0

28

Cub Cadet 736-0253

Bell-Wash. .505" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 16594A

Grass Catcher Cover Ass'y.

$

$

Not available

32

Cub Cadet 726-0258

Twist Fastener

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 16847A

Screen Ass'y.

Variations

Cub Cadet 16847A-0637

SCREEN ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 16596

Hinge Brkt. Ass'y.
(Superseded to 16596-0637)

Variations

Cub Cadet 16596-0637

BRACKET ASSY-HINGE - POWDER BLACK (0637)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

36

$32.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-0351

Truss B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 731-0824A

Plastic Plate

$

$

Not available

39

Cub Cadet 726-0244

Speed Nut
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .625"
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

50

Cub Cadet 723-0383

Retainer Strap Ass'y.
(Superseded to 923-0383)

$15.99

$

In Stock, Qty 5

0

51

Cub Cadet 15971A

Catcher Support Brkt.-L.H.

$

$

Not available

52

Cub Cadet 15970A

Catcher Support Brkt.-R.H.

$

$

Not available

53

Cub Cadet 731-3071

Discharge Chute

$

$

Not available

54

Cub Cadet 736-0175

L-Wash. .27" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

55

Cub Cadet 731-0899

Catcher Tube
(Superseded to 731-0899E)

$108.99

$

In Stock, only 2 left!

0

57

Cub Cadet 16606

Retainer Hook Brkt.
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

60

Cub Cadet 16591

Bag Frame Hanger Brkt.
(Superseded to 16591A-0637)

Variations

Cub Cadet 16591-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0

62

Cub Cadet 710-0281

Hex Bolt 1/4-28 x .88"

$6.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

64

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

66

Cub Cadet 749-0701

Catcher Bag Frame
(Superseded to 749-0701A-0637)

Variations

Cub Cadet 749-0701-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 764-0221

Grass Catcher Bag
(Superseded to 964-0221)

$73.99

$

In Stock, Qty 20+

0

68

Cub Cadet 712-3006

Hex Nut, 1/4-20 Gr

Note: Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, Qty 19

0
