310 (1600044) - AGCO Lawn Tractor, 10hp Air Intake & Exhaust Group - Muffler & Air Cleaner (1505I04) Parts Diagram

Lawn Tractor, 10hp

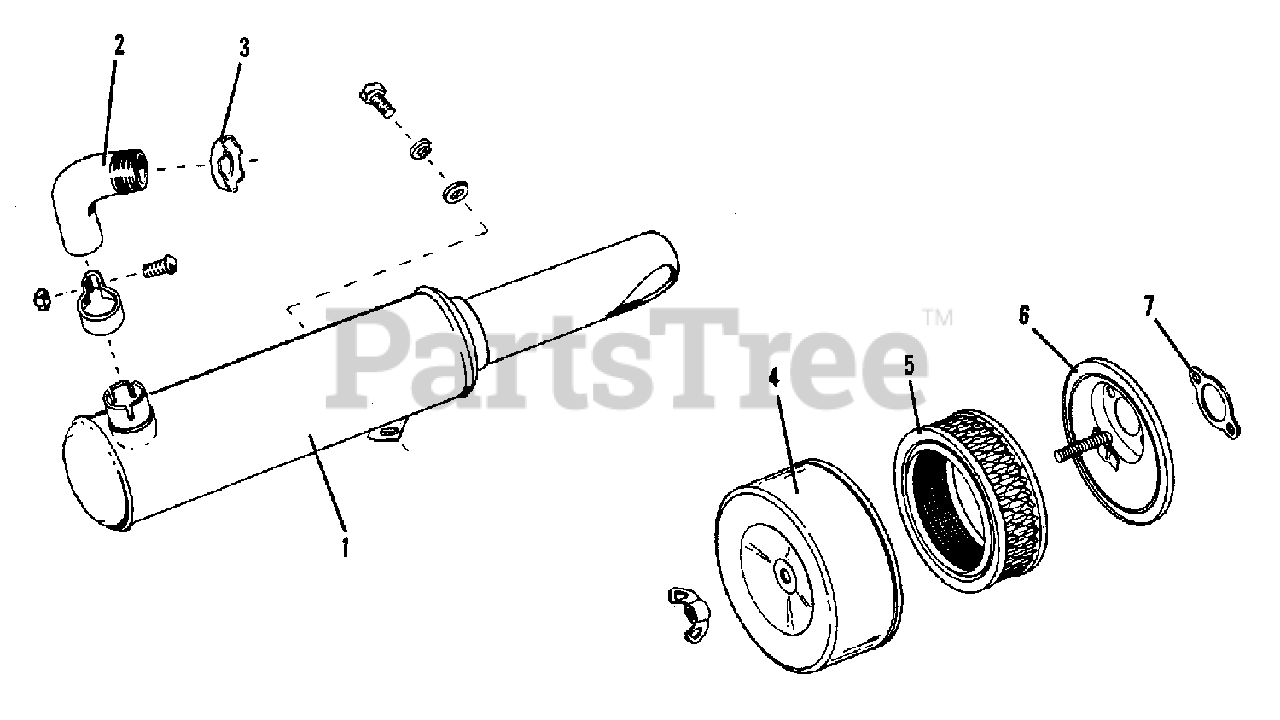

Air Intake & Exhaust Group - Muffler & Air Cleaner (1505I04) Parts Diagram

  • Title

1

Simplicity 1601863

MUFFLER ASSEMBLY

$

$

Not available

1

Simplicity 919760

CAPSCREW, 7/16NC x 7.8

$

$

Not available

1

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

1

Simplicity 2818430

NUT, 7/16NC

$

$

Not available

2

Simplicity 1601885

ELBOW, Exhaust

$

$

Not available

3

Simplicity 2154378SM

NUT, Lock

$6.99

$

Usually ships in 2-12 days

0

4

Simplicity 2066327

COVER, Air Cleaner

$

$

Not available

5

Simplicity 2066436

ELEMENT, Air Cleaner

$

$

Not available

6

Simplicity 2066361

BASE ASSEMBLY, Air Cleaner

$

$

Not available

6

Simplicity 918470

NUT, Wing

$

$

Not available

6

SCREW, #10 NF x 5/16

$

$

Not available

7

Simplicity 2066430

GASKET, Air Cleaner (Included in Engine Gasket Set)

$

$

Not available
