31 WG - Poulan String Trimmer (2006-06) Shaft Parts Diagram

String Trimmer

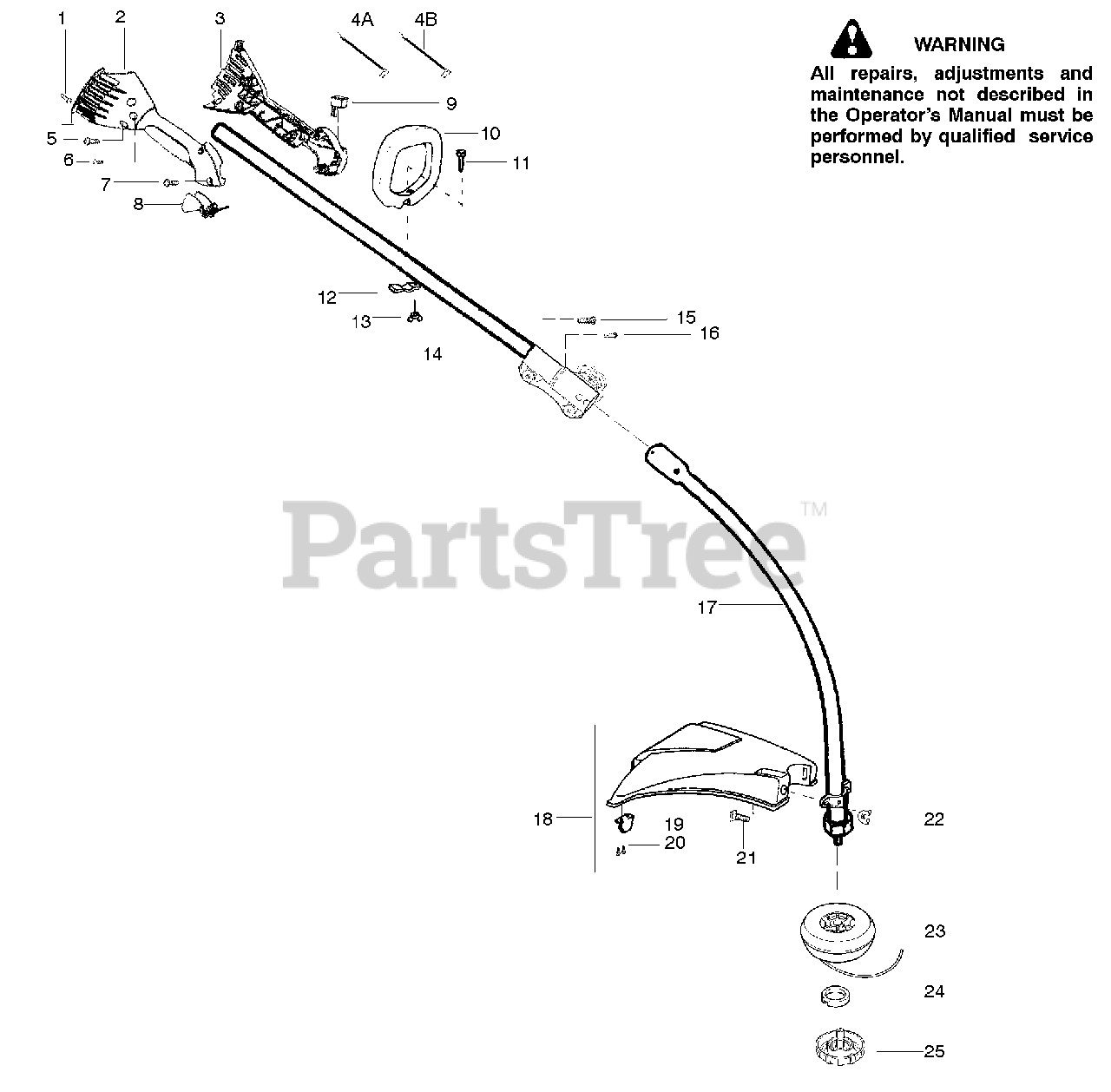

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530015886

Screw-handle/fan hsg

$6.49

$

In Stock, only 4 left!

0

2

Electrolux/AYP 530054837

Throttle Hsg. (Right)

$

$

Not available

3

Electrolux/AYP 530071553

Kit-Left Throttle Hsg.

$9.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530054943

Assy-Front Wire (A) Lower Front Wire

$

$

Not available

4

Electrolux/AYP 530055724

Assy-Front Wire (B) Upper Front Wire

$

$

Not available

5

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

6

Electrolux/AYP 530015805

Screw-Alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

7

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

8

Electrolux/AYP 530054940

Trigger

$3.99

$

In Stock, Qty 8

0

9

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

10

Electrolux/AYP 530055699

Assy-Handle-Assist

$11.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 530088416

Clamp-Assist Handle

$

$

Not available

13

Electrolux/AYP 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530071607

Assy-Upper Shaft

Note: (incl. flex shaft & coupler)

$

$

Not available

15

Electrolux/AYP 530016344

Screw

$6.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530016343

Screw-Alignment

$2.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530071557

Assy-Lower Shaft

Note: (Incl. flex shaft)

$46.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530069779

Kit-Shield Ass'y.

Note: (Incl.18-21)

$

$

Not available

19

Electrolux/AYP 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530015805

Screw-Line Limiter
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

21

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 952711574

Accy-Spool w/.080 line

$

$

Not available

24

Electrolux/AYP 530403949

Guide-Centrex Line

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 530095763

Assy-Cap 3/8 RH

$

$

Not available

25

Electrolux/AYP 530163734

Operator Manual

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530056221

Decal-Upper Shaft

Note: Not Shown

$

$

Not available

25

Electrolux/AYP 530056220

Decal-Shaft
(Superseded to 545209101)

Note: Not Shown

$

$

Not available

25

Electrolux/AYP 530057369

Decal-Starting Instruction

Note: Not Shown

$

$

Not available
