31-20OE01 (520-H) - Toro Garden Tractor (1988) CRANKSHAFT, CAMSHAFT & FLYWHEEL Parts Diagram

Garden Tractor

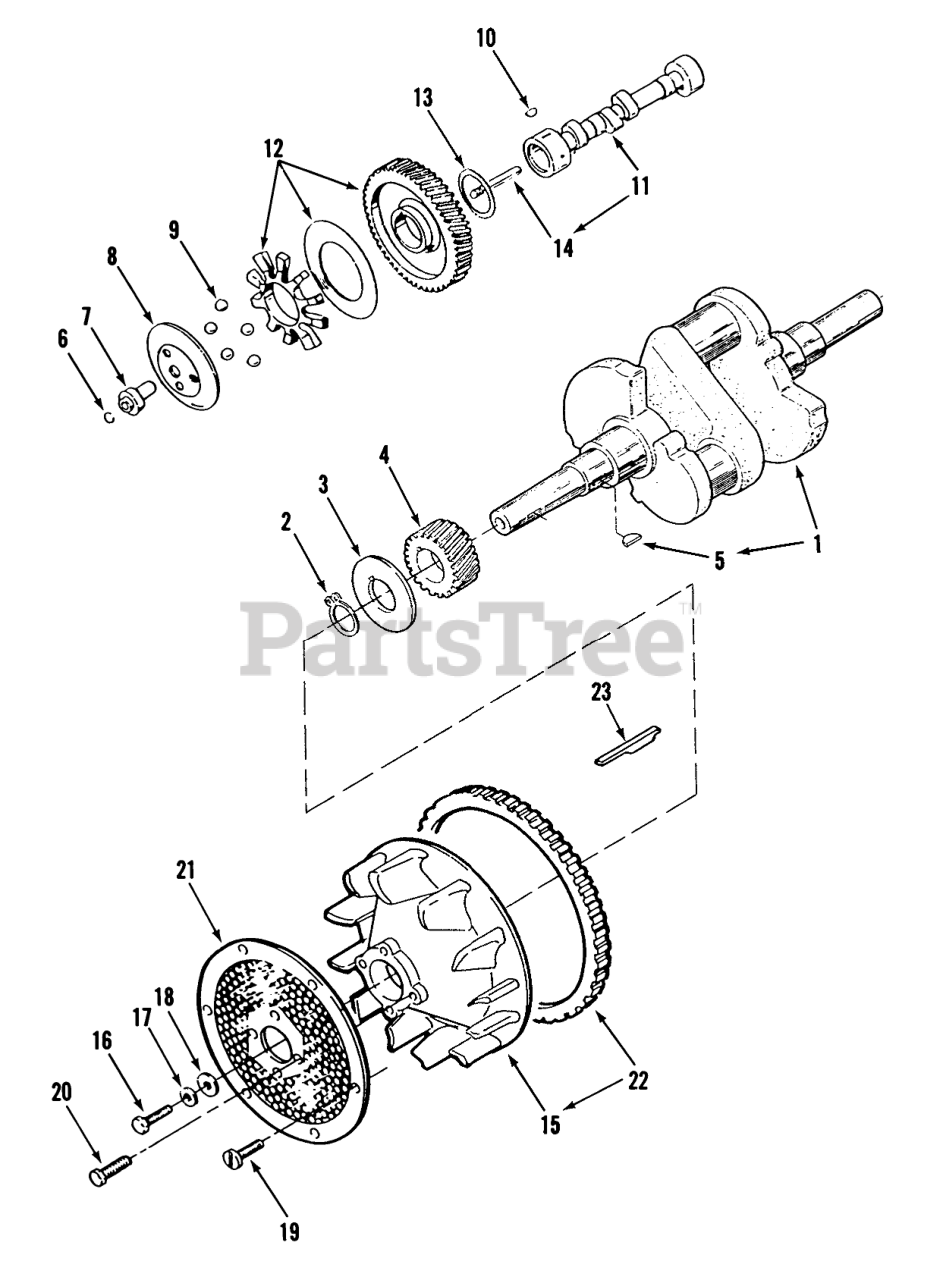

CRANKSHAFT, CAMSHAFT & FLYWHEEL Parts Diagram

  • Title
1

Toro NN10025

Crankshaft
(Superseded to NN10853)

$

$

Not available

1

Toro NN10027

Crankshaft 18 & 20 HP
(Superseded to NN10773)

$

$

Not available

2

Toro NN10343

Retaining Ring
(Superseded to 57-9710)

$

$

Not available

3

Toro NN10439

Washer
(Superseded to 57-8140)

$

$

Not available

4

Toro NN10438

Gear
(Superseded to 57-8130)

$

$

Not available

5

Toro NN10330

Key
(Superseded to 57-9660)

$7.99

$

Usually ships in 3-6 days

0

6

Toro NN10215

Retaining Ring
(Superseded to 57-9090)

$

$

Not available

7

Toro NN10221

Governor Cup Hub
(Superseded to 57-9130)

$

$

Not available

8

Toro NN10222

Cup-Governor
(Superseded to 59-0450)

$

$

Not available

9

Toro NN10328

Ball
(Superseded to 57-9640)

$

$

Not available

10

Toro NN10330

Key
(Superseded to 57-9660)

$7.99

$

Usually ships in 3-6 days

0

11

Toro NN10032

Camshaft 16 & 18HP (includes item 13)

$

$

Not available

11

Toro NN10033

Camshaft 20HP (includes item 13)
(Superseded to 71-6320)

$1016.99

$

Usually ships in 3-6 days

0

12

Toro NN10029

Camshaft Gear (includes Gear, Spacer and Plate)
(Superseded to 57-8210)

$

$

Not available

13

Toro NN10030

Washer
(Superseded to 57-8230)

$

$

Not available

14

Toro NN10214

Pin
(Superseded to 59-0400)

$

$

Not available

15

Toro NN10171

Flywheel (includes Ring Gear)
(Superseded to 71-5920)

$

$

Not available

16

Toro NN10021

Screw
(Superseded to 57-8150)

$

$

Not available

17

Toro NN10422

SPRING LOCKWASHER

$

$

Not available

18

Toro NN10335

Washer
(Superseded to 59-0740)

$6.49

$

In Stock, only 1 left!

0

19

Toro NN10409

Bolt
(Superseded to 71-6340)

$

$

Not available

20

Toro NN10416

Locking Bolt
(Superseded to 59-1120)

$

$

Not available

21

Toro NN10168

Air Inlet Screen
(Superseded to 79-6440)

$166.99

$

Usually ships in 3-6 days

0

22

Toro NN10024

Gear-Ring
(Superseded to 57-8180)

$

$

Not available

23

Toro NN10332

Key
(Superseded to 71-6190)

$

$

Not available
