31-18OE01 (518-H) - Toro Garden Tractor (1988) WHEELS AND TIRES Parts Diagram

Garden Tractor

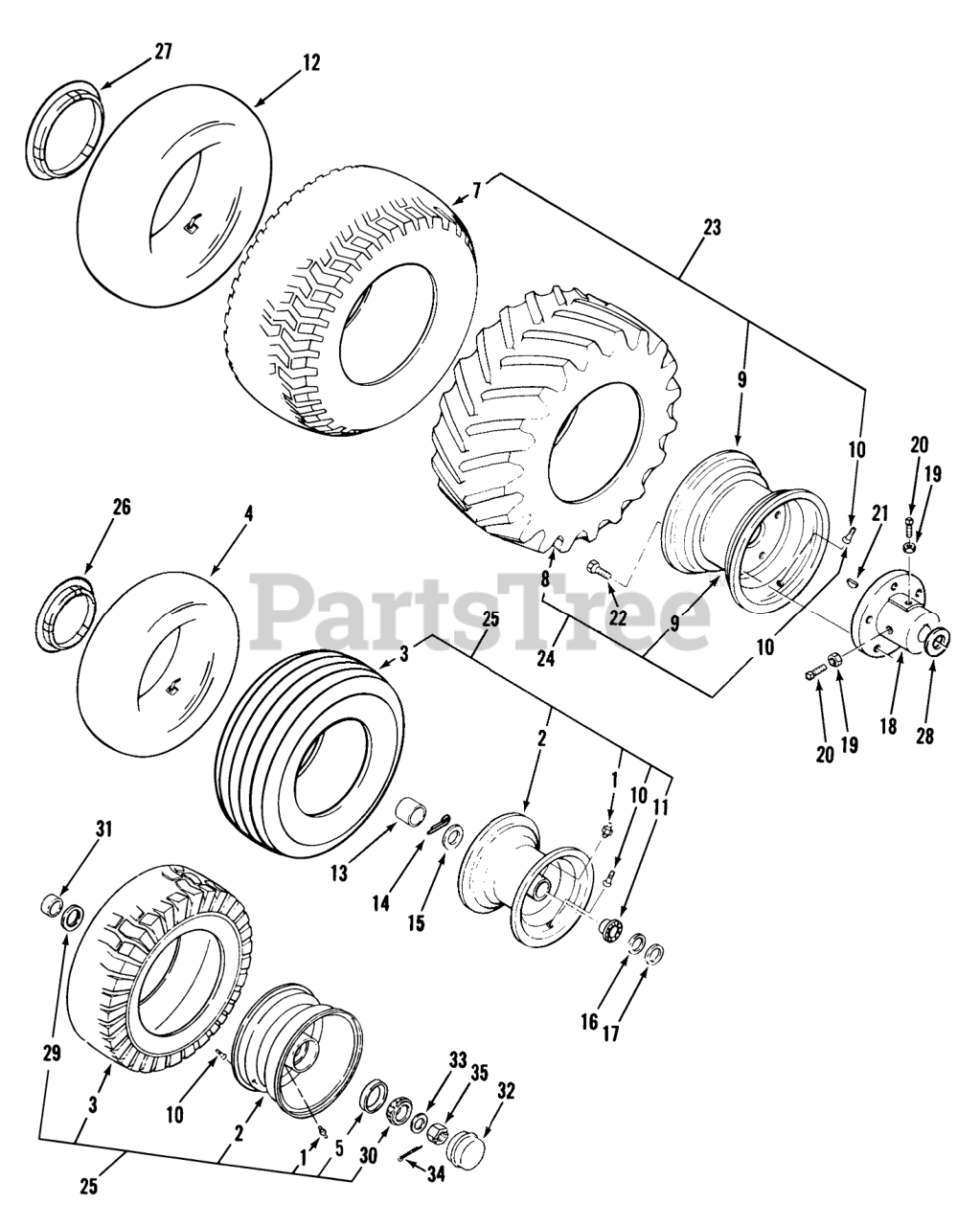

WHEELS AND TIRES Parts Diagram

  • Title
1

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0

2

Toro 112219

Front Wheel (includes items 1, 10 & 11 ) 516, 518 & 520-H

$

$

Not available

2

Toro 112820

Front Wheel (includes item 1 & qty. 1 of item 5) 520-HC

$

$

Not available

3

Toro 9792

TIRE TURF SAVER 16X6.50-8

$

$

Not available

3

Toro 112818

TIRE-TURF SAVER

$

$

Not available

4

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

5

Toro 112821

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 11

0

7

Toro 5434

Tire
(Superseded to 102786)

$

$

Not available

7

Toro 102786

TIRE 9.50 X 12

$

$

Not available

7

Toro 114032

TIRE-TURFSAVER 23X10.5-10

$

$

Not available

8

Toro 7607

Tire-Cleat, Rear
(Superseded to 110934)

$

$

Not available

9

Toro 110677

WHEEL

$

$

Not available

9

Toro 110680

RIM ASM

$

$

Not available

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

11

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 2 left!

0

11

Toro 112823

Bearing
(Superseded to 254-94)

$9.49

$

In Stock, Qty 18

0

12

Toro 7007

TUBE-INNER
(Superseded to 231-90)

$

$

Not available

12

Toro 109546

Rear Tube
(Superseded to 231-90)

$

$

Not available

12

Toro 100291

Tube Cleat Tires
(Superseded to 231-90)

$

$

Not available

13

Toro 111951

HUBCAP

$16.99

$

In Stock, only 2 left!

0

14

Toro 932026

COTTER PIN-4

$0.99

$

In Stock, Qty 13

0

15

Toro 111952

WASHER WHEEL

$7.49

$

In Stock, Qty 5

0

16

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

18

Toro 105763

Hub Rear
(Superseded to 105763-03)

$191.99

$

In Stock, only 1 left!

0

19

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

20

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

21

Toro 937108

KEY-WOODRUFF

$5.99

$

In Stock, only 3 left!

0

22

Toro 1004

Lug Nut

$

$

Not available

23

Toro 110676

Rear Wheel & Tire Assy 414

$

$

Not available

23

Toro 110678

Rear Wheel & Tire Assy 416

$

$

Not available

23

Toro 114038

Rear Wheel & Tire Assy 520-HC

$

$

Not available

24

Toro 110934

ASSY WHEEL & TIRE

$

$

Not available

24

Toro 110933

ASSY WHEEL & TIRE

$

$

Not available

25

Toro 112218

Front Wheel & Tire Assy 414, 416
(Superseded to 99-5376)

$

$

Not available

25

Toro 112817

Front Wheel & Tire Assy (includes only qty. 1 of items 30, 29 & 5) 520-HC

$

$

Not available

26

Toro 114427

8"-HUB CAP LOGO

$

$

Not available

27

Toro 114428

12"-HUB CAP LOGO

$

$

Not available

28

Toro 106826

WASHER-THRUST

$14.99

$

In Stock, only 1 left!

0

29

Toro 112822

Seal
(Superseded to 93-9807)

$27.99

$

In Stock, only 3 left!

0

30

Toro 112823

Bearing
(Superseded to 254-94)

$9.49

$

In Stock, Qty 18

0

31

Toro 112824

SPACER

$

$

Not available

32

Toro 112825

DUST CAP

$

$

Not available

33

Toro 920225

Washer
(Superseded to 9202254)

$3.99

$

In Stock, only 2 left!

0

34

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

35

Toro 915035

Nut-Slotted 3/4-16
(Superseded to 32136-5)

$7.99

$

Usually ships in 3-6 days

0
