31-18KE01 (418-A) - Toro Garden Tractor (1987) HYDRAULIC LIFT LINKAGE-400 SERIES Parts Diagram

Garden Tractor

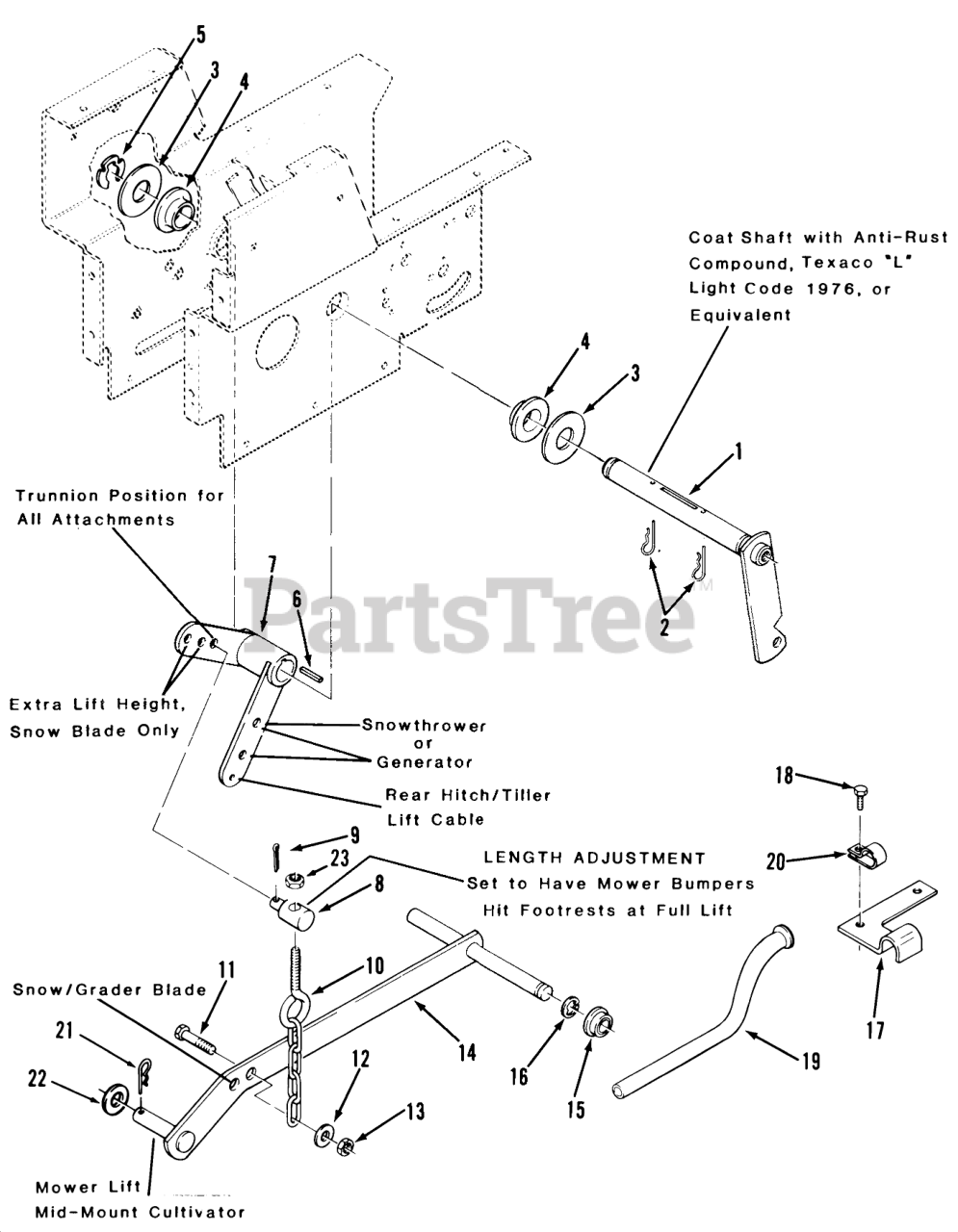

HYDRAULIC LIFT LINKAGE-400 SERIES Parts Diagram

  • Title

1

Toro 109320

Lift lever

$

$

Not available

2

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.49

$

In Stock, Qty 5

0

3

Toro 920017

WASHER
(Superseded to 3256-62)

$1.49

$

Usually ships in 3-6 days

0

4

Toro 106269

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

5

Toro 106414

Retainer
(Superseded to 32151-91)

$2.49

$

In Stock, Qty 5

0

6

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

7

Toro 106218

Bellcrank
(Superseded to 78-1550)

$112.99

$

In Stock, only 1 left!

0

8

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 6

0

9

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

10

Toro 106522

CHAIN-LIFT

$36.99

$

In Stock, only 1 left!

0

11

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

12

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

13

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

14

Toro 102373

ASSY LIFT BAR R
(Superseded to 102373-01)

$191.99

$

Usually ships in 3-6 days

0

15

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

16

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

17

Toro 108903

CLAMP-CONDUIT R
(Superseded to 108903-01)

$16.99

$

Usually ships in 3-6 days

0

18

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

19

Toro 108315

TUBE-CONDUIT R
(Superseded to 108315-01)

$59.99

$

Usually ships in 3-6 days

0

20

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

21

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

22

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

23

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0
