31-17KE02 (417-A) - Toro Garden Tractor (1986) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

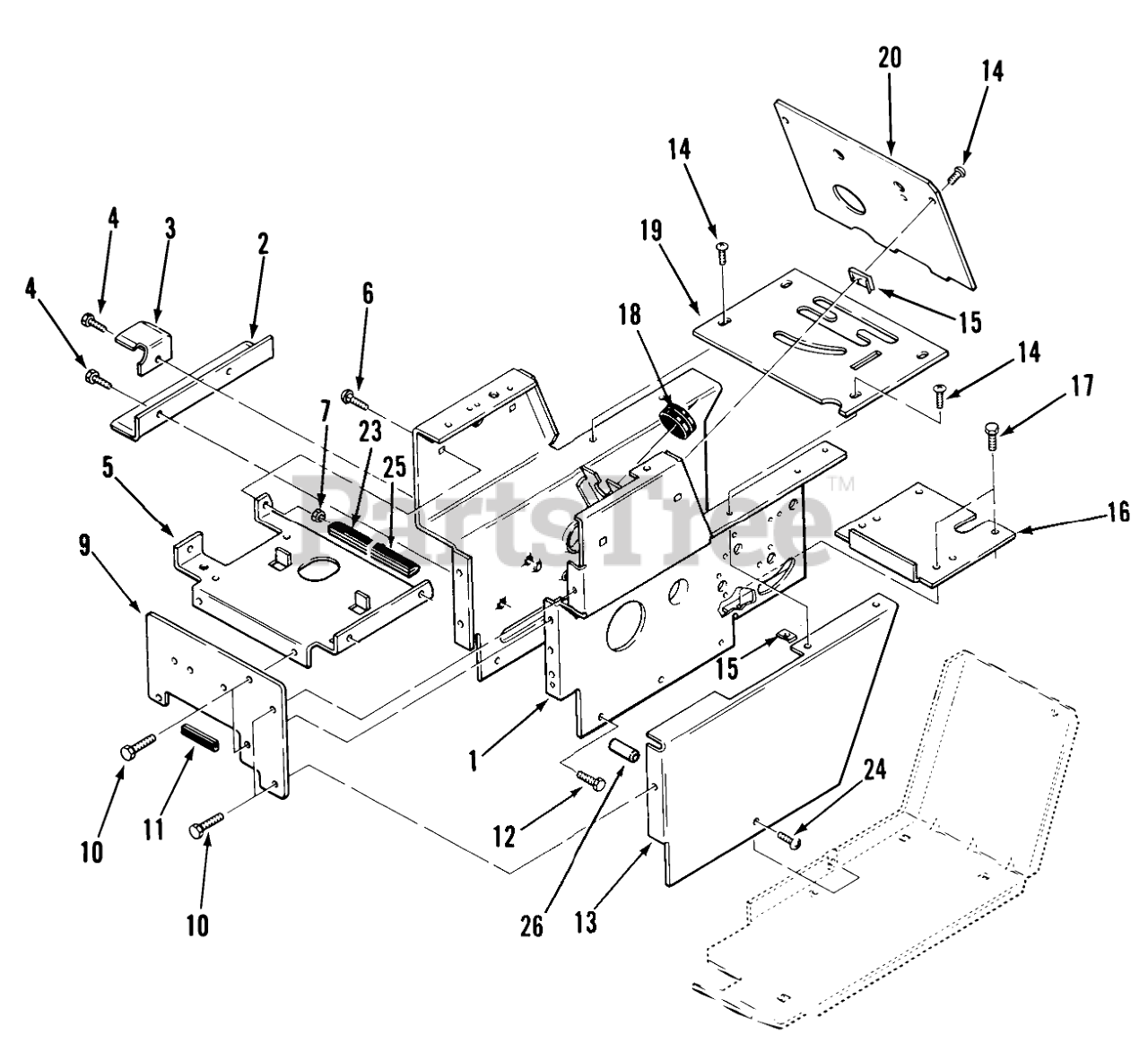

SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 109765

Hoodstand

$

$

Not available

2

Toro 106209

ANGL-BLT GURDB

$20.99

$

Usually ships in 3-6 days

0

3

Toro 108537

BRCKET-BLT SUTB

$

$

Not available

4

Toro 926694

SCREW

$

$

Not available

5

Toro 110094

SUPPORT-BATTERY B

$

$

Not available

6

Toro 900035

CARRIAGE BOLT -4

$

$

Not available

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 106342

Front Plate

$

$

Not available

Toro 107400

Front Plate C-161 Twin Only

$

$

Not available

10

Toro 926694

SCREW

$

$

Not available

11

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

12

Toro 926694

SCREW

$

$

Not available

13

Toro 109322

Side Cover LH
(Superseded to 79-5130-01)

$

$

Not available

14

Toro 9108372

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

15

$2.99

$

In Stock, Qty 20+

0

16

Toro 106250

Cover-Dust
(Superseded to 106250-03)

$

$

Not available

17

Toro 926694

SCREW

$

$

Not available

18

Toro 104248

GROMMET

$12.99

$

Usually ships in 3-6 days

0

19

Toro 111388

PLATE SHIFT B

$

$

Not available

Toro 111389

Shift Cover Plate 417-A Only

$

$

Not available

20

Toro 111033

PLATE HOODSTAND B

$

$

Not available

Toro 110098

Washer

$

$

Not available

Toro 111815

PLATE HOODSTAND B

$

$

Not available

23

Toro 110142

EDGE TRIM 5" OF 102896

$

$

Not available

24

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

3

Toro 106261

Belt Bracket
(Superseded to 88-2170-03)

$

$

Not available

Toro 111728

FRONT PLATE ASSY B

$

$

Not available

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

13

Toro 109323

Side Cover LH
(Superseded to 113935-01)

$81.99

$

Usually ships in 3-6 days

0

Toro 111288

COVER LH R

$

$

Not available

19

Toro 111387

PLATE SHIFT PATTE B

$

$

Not available

Toro 111386

Plate-Shift Cover
(Superseded to 92-6529)

$32.99

$

In Stock, only 1 left!

0

20

Toro 110720

PLATE HOODSTAND B

$

$

Not available

Toro 109149

PLATE-HOODSTAND R B

$

$

Not available

Toro 111033

PLATE HOODSTAND B

$

$

Not available

Toro 110520

PLATE HOODSTAND B

$

$

Not available

Toro 111034

Plate-Hood Stand
(Superseded to 94-1809-03)

$

$

Not available

Toro 111289

Hoodstand Plate

$

$

Not available

Toro 910843

Pan Head Screw 1/4-20 x 1 3/4

$

$

Currently unavailable

25

Toro 106454

EDGE TRIM 2" 102896

$

$

Not available

26

Toro 979472

Spacer 417-8 Only

$

$

Currently unavailable
