31-16O801 (416-8) - Toro Garden Tractor (1989) ONAN CARBURETOR COMPONENTS Parts Diagram

Garden Tractor

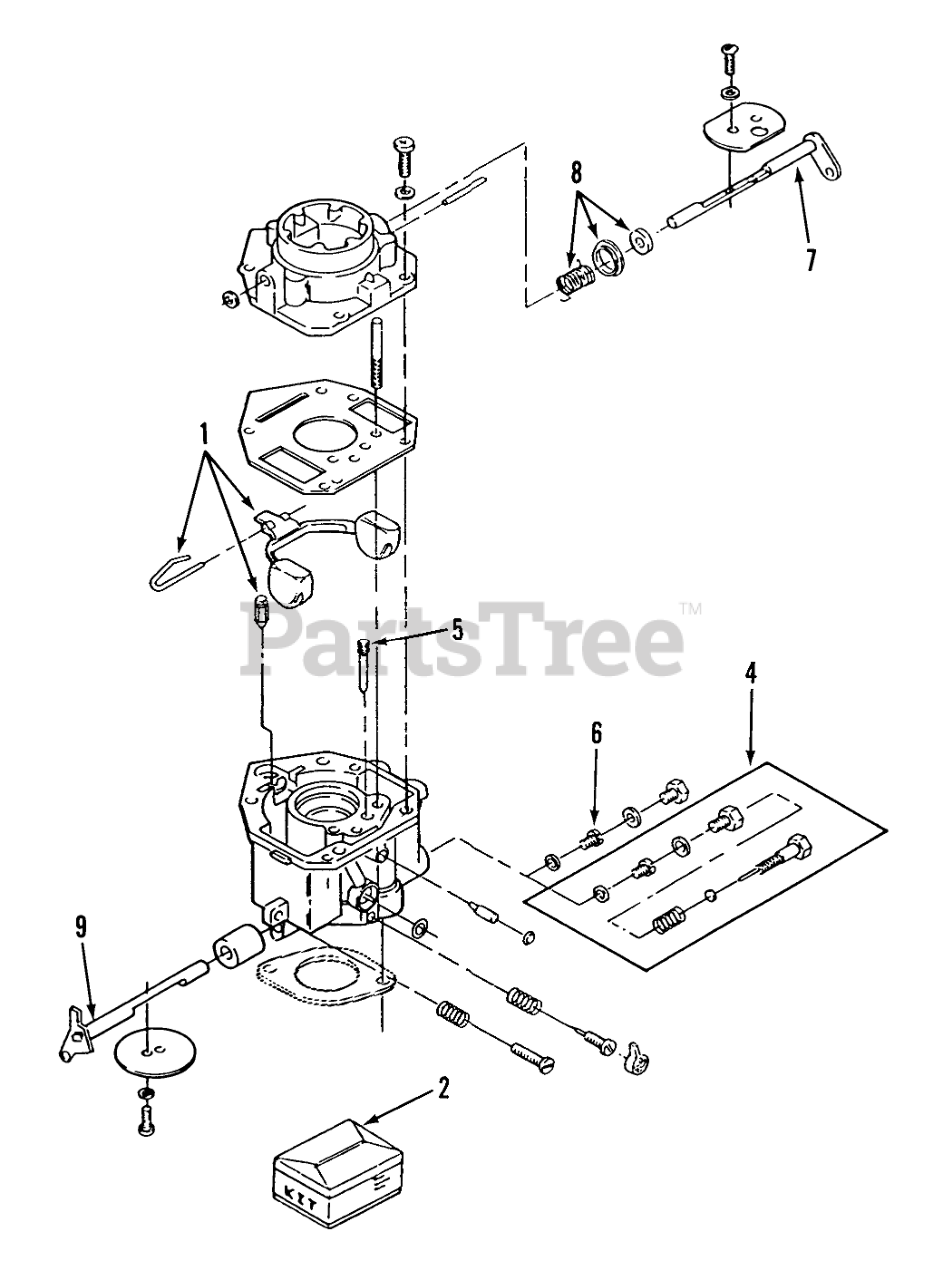

ONAN CARBURETOR COMPONENTS Parts Diagram

  • Title

1

Toro NN10209

Flat Kit (Includes Float Pin)
(Superseded to 62-2800)

$164.99

$

Usually ships in 3-6 days

0

2

Toro NN10206

Repair Kit (Includes Screw and Plug Package, Gasket Package, Float Valve, Idle Adjustment Needle and Spring, Mounting Gaskets, Idle Limit Cap)
(Superseded to 82-0780)

$716.99

$

Usually ships in 3-6 days

0

4

Toro NN10197

Variable Jet Kit-Optbnal (High Altitude Application Includes Power Jet and Gasket, Retainer, Power Needle Spring, Power Needle and Power Plug Gasket)

$

$

Not available

5

Toro NN10201

Idle Jet
(Superseded to 62-2820)

$

$

Not available

6

Toro NN10199

POWER JET

$

$

Not available

7

Toro NN10207

Choke Shaft Kit (Includes Choke Valve, Valve Set Screw and Air Filter)
(Superseded to 72-3860)

$

$

Not available

8

Toro NN10208

Choke Lever Kit (Includes Choke Lever Ring, Choke Spring and Choke Collar)
(Superseded to 72-3870)

$

$

Not available

9

Toro NN10200

Throttle Shaft Kit (Includes Valve Set Screw, Air Filter and Throttle Valve)
(Superseded to 82-0740)

$

$

Not available
