31-16O801 (416-8) - Toro Garden Tractor (1989) MECHANICAL TRANSMISSION 8-SPEED Parts Diagram

Garden Tractor

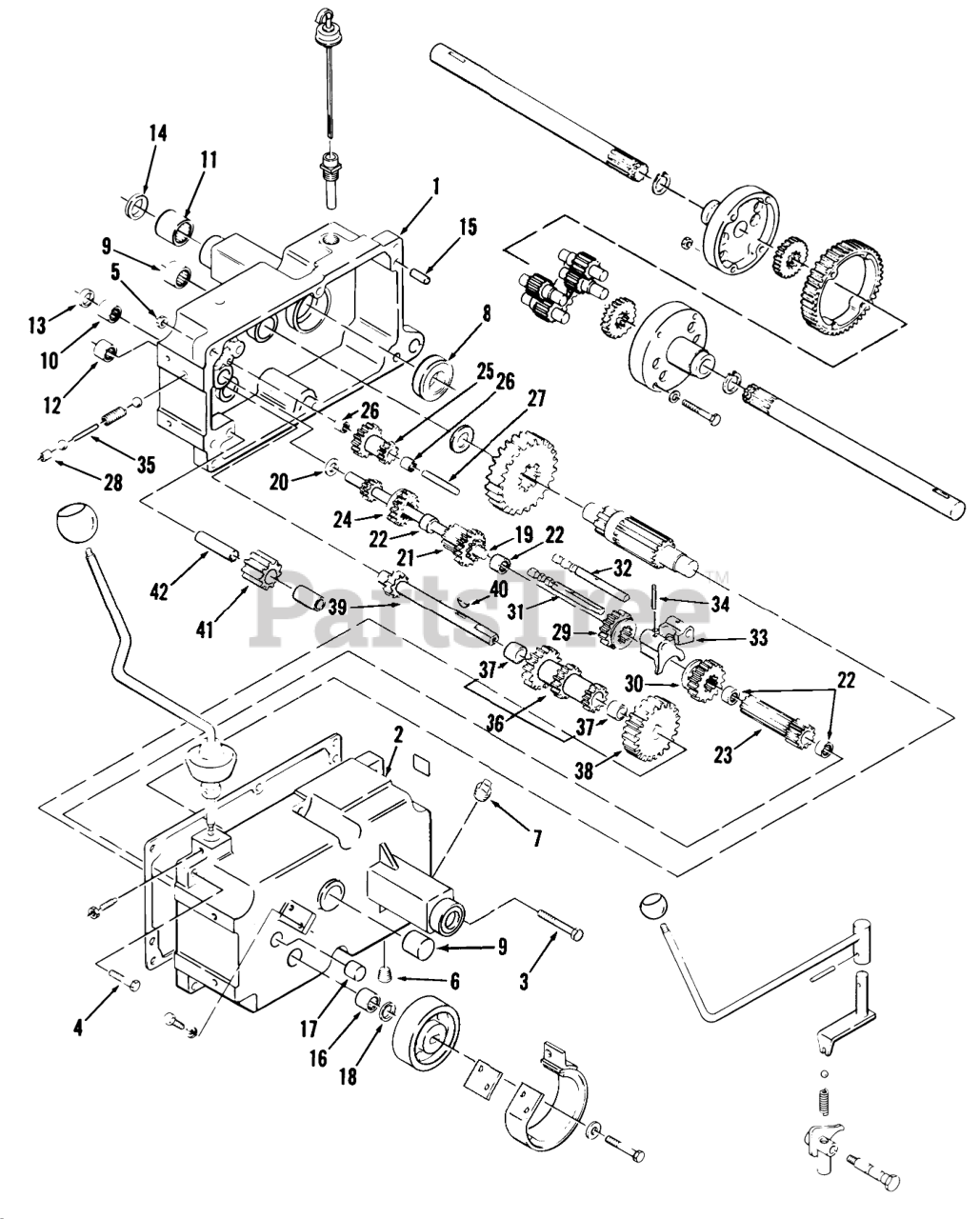

MECHANICAL TRANSMISSION 8-SPEED Parts Diagram

  • Title

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 15

0

Toro 110995

Transmission Assembly
(Superseded to 94-6671)

$6405.99

$

Usually ships in 3-6 days

0

1

Toro 111204

CASE TRANS RH

$1467.99

$

Usually ships in 3-6 days

0

1

Toro 114678

Case-Trans RH 300-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

1

Toro 11120

Case-Trans RH 400-Series Only

$

$

Currently unavailable

1

Toro 114680

Case-Trans RH 400-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

2

Toro 111203

CASE TRANS LH

$

$

Not available

2

Toro 114679

Case-Trans LH 300-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

2

Toro 111198

Case Trans LH
(Superseded to 95-5143-01)

$1150.99

$

Usually ships in 3-6 days

0

2

Toro 114681

Case-Trans LH 400-Series Only Note: this case half has recess in axle housing for oil seal

$

$

Currently unavailable

3

Toro 908044

Bolt 3/8-16 x 4
(Superseded to 323-16)

$3.49

$

In Stock, Qty 7

0

4

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

5

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

7

Toro 943420

Plug
(Superseded to 281-2)

$2.49

$

Usually ships in 3-6 days

0

8

Toro 111199

BEARING-BALL

$122.99

$

In Stock, only 3 left!

0

9

Toro 1532

BEARING-NEEDLE

$50.99

$

In Stock, only 4 left!

0

10

Toro 1542

BEARING-NEEDLE

$37.99

$

In Stock, only 2 left!

0

11

Toro 1528

BEARING-NEEDLE

$51.99

$

In Stock, only 1 left!

0

11

Toro 9416

BEARING

$70.99

$

Usually ships in 3-6 days

0

12

Toro 1529

BEARING-NEEDLE

$43.99

$

Usually ships in 3-6 days

0

13

Toro 100442

SEAL-OIL

$6.49

$

In Stock, Qty 8

0

14

Toro 100863

OIL SEAL

$14.99

$

In Stock, only 4 left!

0

14

Toro 114677

Seal-Axle 1 ID X 1-1/4 OD 300-series Only
(Superseded to 100863)

$14.99

$

In Stock, only 4 left!

0

14

Toro 100443

SEAL-OIL

$11.99

$

Usually ships in 3-6 days

0

14

Toro 6449

SEAL-OIL

$20.99

$

In Stock, only 1 left!

0

15

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

16

Toro 1523

BEARING-NEEDLE

$37.99

$

Usually ships in 3-6 days

0

17

Toro 1531

Bearing Needle

$

$

Not available

18

Toro 100441

SEAL-OIL

$8.49

$

In Stock, only 1 left!

0

19

Toro 7201

SHAFT-INPUT

$

$

Not available

20

Toro 7418

WASHER-THR

$6.49

$

In Stock, only 4 left!

0

21

Toro 7204

GEAR

$

$

Not available

22

Toro 1518

BEARING-NEEDLE

$26.99

$

Usually ships in 3-6 days

0

23

Toro 5175

GEAR

$272.99

$

Usually ships in 3-6 days

0

24

Toro 7205

GEAR-SLIDING

$

$

Not available

25

Toro 7206

Gear
(Superseded to 100-1338)

$273.99

$

Usually ships in 3-6 days

0

26

Toro 7207

BEARING-NEEDLE

$30.99

$

Usually ships in 3-6 days

0

27

Toro 7208

GEAR-SHAFT REDUCTION

$11.99

$

In Stock, only 2 left!

0

28

Toro 1243

CUP-PLUG

$5.49

$

In Stock, Qty 10

0

29

Toro 5173

GEAR-HI AND 2ND

$146.99

$

Usually ships in 3-6 days

0

30

Toro 5174

GEAR-LOW AND REVERSE

$192.99

$

Usually ships in 3-6 days

0

31

Toro 5615

RAIL-SHIFT

$116.99

$

Usually ships in 3-6 days

0

32

Toro 5616

RAIL-REAR SHIFT

$78.99

$

Usually ships in 3-6 days

0

33

Toro 3503

FORK-SHIFT

$136.99

$

Usually ships in 3-6 days

0

34

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 9

0

35

Toro 5614

PIN-SHIFT

$

$

Not available

36

Toro 7269

GEAR-CLUSTER

$

$

Not available

37

Toro 1504

BUSHING-BRONZE

$43.99

$

Usually ships in 3-6 days

0

38

Toro 3527

GEAR-CLUSTER SHAFT

$

$

Not available

39

Toro 9840

Cluster Shaft
(Superseded to 704156)

$

$

Not available

40

Toro 937089

KEY-WOODRUFF

$1.99

$

In Stock, Qty 5

0

41

Toro 4204

GEAR/BUSHING ASM-REVERSE IDLER

$161.99

$

Usually ships in 3-6 days

0

42

Toro 3909

PIN-DIFFERENTIAL

$

$

Not available
