31-16O801 (416-8) - Toro Garden Tractor (1989) KOHLER GOVERNOR LINKAGE Parts Diagram

Garden Tractor

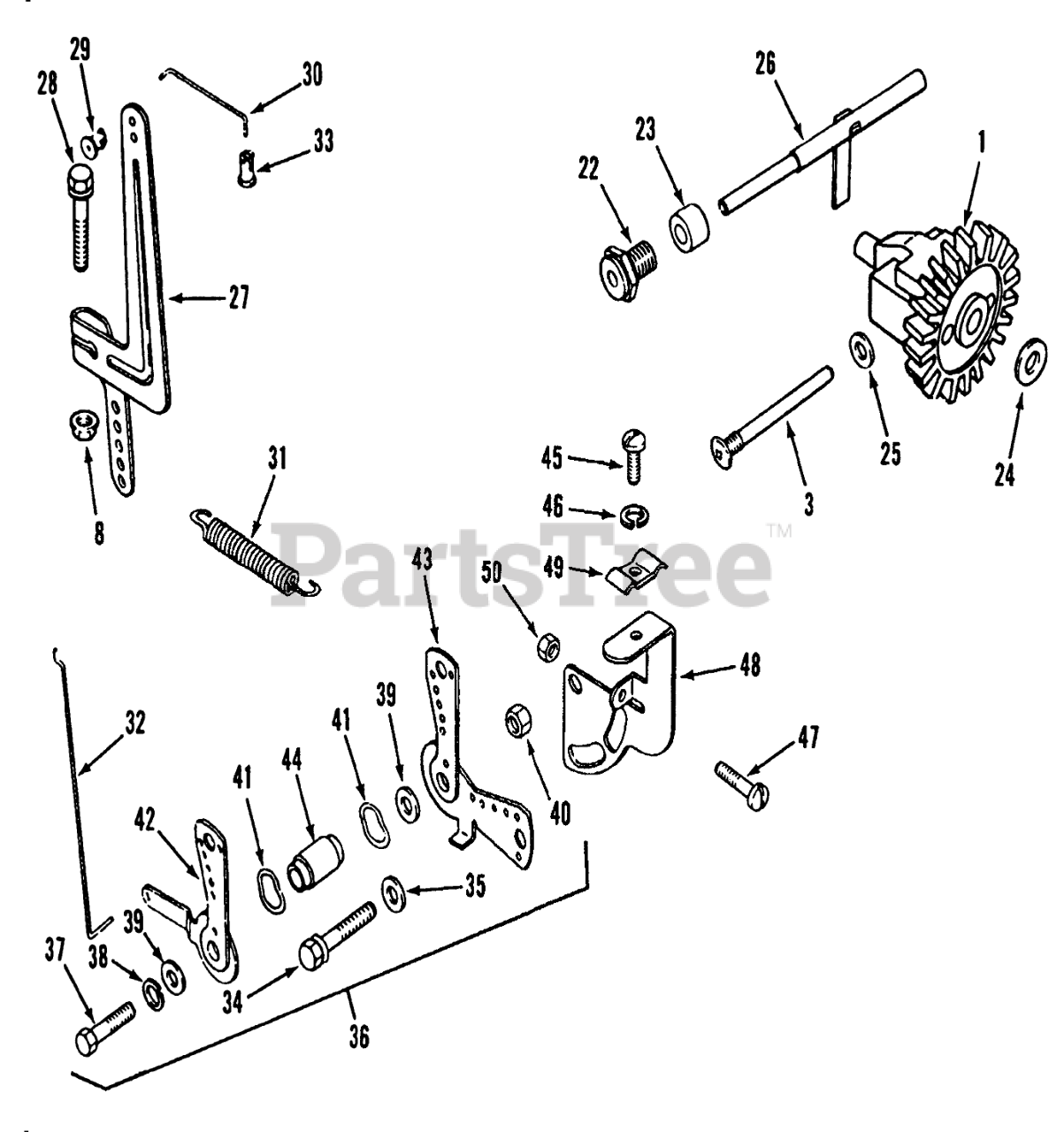

KOHLER GOVERNOR LINKAGE Parts Diagram

  • Title

1

Toro KH10660

Kit-Governor Gear(Includes 24)

$

$

Not available

3

Toro KH10035

Govenor Stop Pin

$

$

Not available

8

Toro KH10629

Palnut

$

$

Not available

22

Toro KH10070

Bushing

$

$

Not available

23

Toro KH10585

Spacer

$

$

Not available

24

Toro KH10087

Washer

$

$

Not available

25

Toro KH10138

Washer

$

$

Not available

26

Toro KH10538

Governor Cross Shaft Kit

$

$

Not available

27

Toro KH10295

Governor Lever

$

$

Not available

28

Toro KH10626

Screw

$

$

Not available

29

Toro KH10668

Bushing

$

$

Not available

30

Toro KH10288

Linkage (Governor to Carb.)

$

$

Not available

31

Toro KH10296

Spring (Governor to Cab.)

$

$

Not available

32

Toro KH10287

Choke Linkage (Carb. to Choke Shaft)

$

$

Not available

33

Toro KH10686

Bushing

$

$

Not available

34

Toro KH10545

Screw

$

$

Not available

35

Toro KH10570

Washer

$

$

Not available

36

Toro KH10291

Choke Lever Assembly (Includes Items 37 thru 44)

$

$

Not available

37

Toro KH10600

Screw

$

$

Not available

38

Toro KH10556

Washer-Lock

$

$

Not available

39

Toro KH10549

Screw

$

$

Not available

40

Toro KH10624

Nut

$

$

Not available

41

Toro KH10152

Washer

$

$

Not available

42

Toro KH10293

Choke Control Lever

$

$

Not available

43

Toro KH10294

Lever-Throttle Control

$

$

Not available

44

Toro KH10302

Space

$

$

Not available

45

Toro KH10551

F.H.M. Screw #10-24 x 1/2

$

$

Not available

46

Toro KH10555

Lockwasher #10

$

$

Not available

47

Toro KH10040

Screw

$

$

Not available

48

Toro KH10303

Bracket-Clutch Control

$

$

Not available

49

Toro KH10308

Clamp

$

$

Not available

50

Toro KH10619

Nut

$

$

Not available
