31-14K804 (414-8) - Toro Garden Tractor (1989) ONAN AIR CLEANER Parts Diagram

Garden Tractor

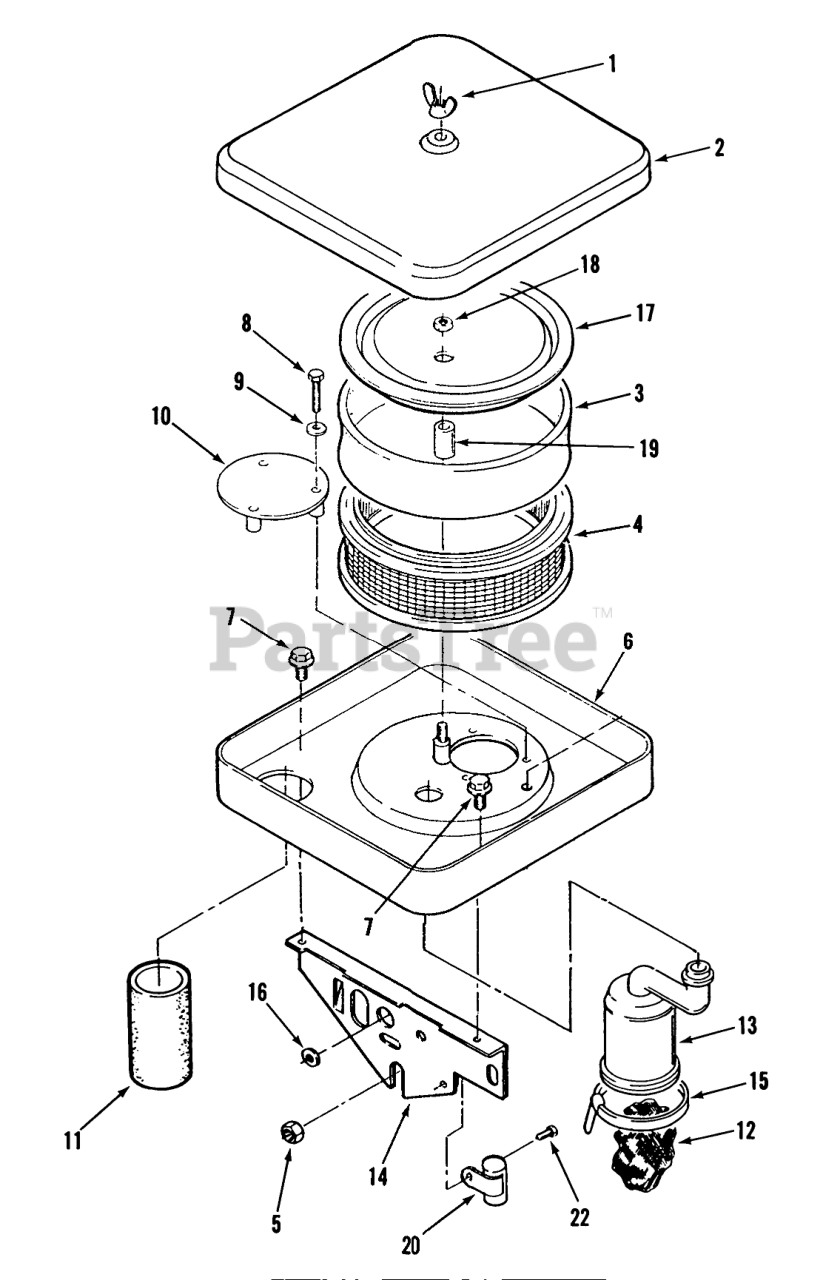

ONAN AIR CLEANER Parts Diagram

  • Title

1

Toro NN10427

Nut-Wing
(Superseded to 92-0913)

$

$

Not available

2

Toro NN10185

AIR CLEANER COVER

$

$

Not available

3

Toro NN10176

AIR CLEANER ELEMENT

$

$

Not available

4

Toro NN10175

Air Cleaner Element
(Superseded to NN10774)

$50.99

$

In Stock, only 2 left!

0

5

Toro NN10430

Nut
(Superseded to 82-1690)

$

$

Not available

6

Toro NN10184

Air Cleaner Housing
(Superseded to NN10880)

$

$

Not available

7

Toro NN10406

Screw 1/4-20 x 3/8
(Superseded to 82-1550)

$

$

Not available

8

Toro NN10398

Screw Hex Hd. #10-32 x 1-1/2
(Superseded to 82-1530)

$

$

Not available

9

Toro NN10365

Flat Washer #10
(Superseded to 82-1290)

$

$

Not available

10

Toro NN10193

AIR DEFLECTOR PLATE

$

$

Not available

11

Toro NN10187

AIR INTAKE TUBE

$

$

Not available

12

Toro NN10156

Baffle
(Superseded to 57-8580)

$6.99

$

Usually ships in 3-6 days

0

13

Toro NN10157

BREATHER TUBE

$89.99

$

Usually ships in 3-6 days

0

14

Toro NN10186

AIR CLEANER SUPPORT

$

$

Not available

15

Toro NN10304

BREATHER TUBE CLAMP

$

$

Not available

16

Toro NN10309

Grommet
(Superseded to 71-6140)

$

$

Not available

17

Toro NN10177

Element Cover
(Superseded to 82-0650)

$

$

Not available

18

Toro NN10429

Hex Nut 1/4-20
(Superseded to 82-1680)

$

$

Not available

19

Toro NN10272

Spacer
(Superseded to 82-0980)

$

$

Not available

20

Toro NN10276

Condenser
(Superseded to 59-1180)

$42.99

$

In Stock, only 1 left!

0

22

Toro NN10390

SCREW #10-32 X 5/8

$

$

Not available
