31-12K804 (312-8) - Toro Garden Tractor (SN: 020000001 - 029999999) (1992) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

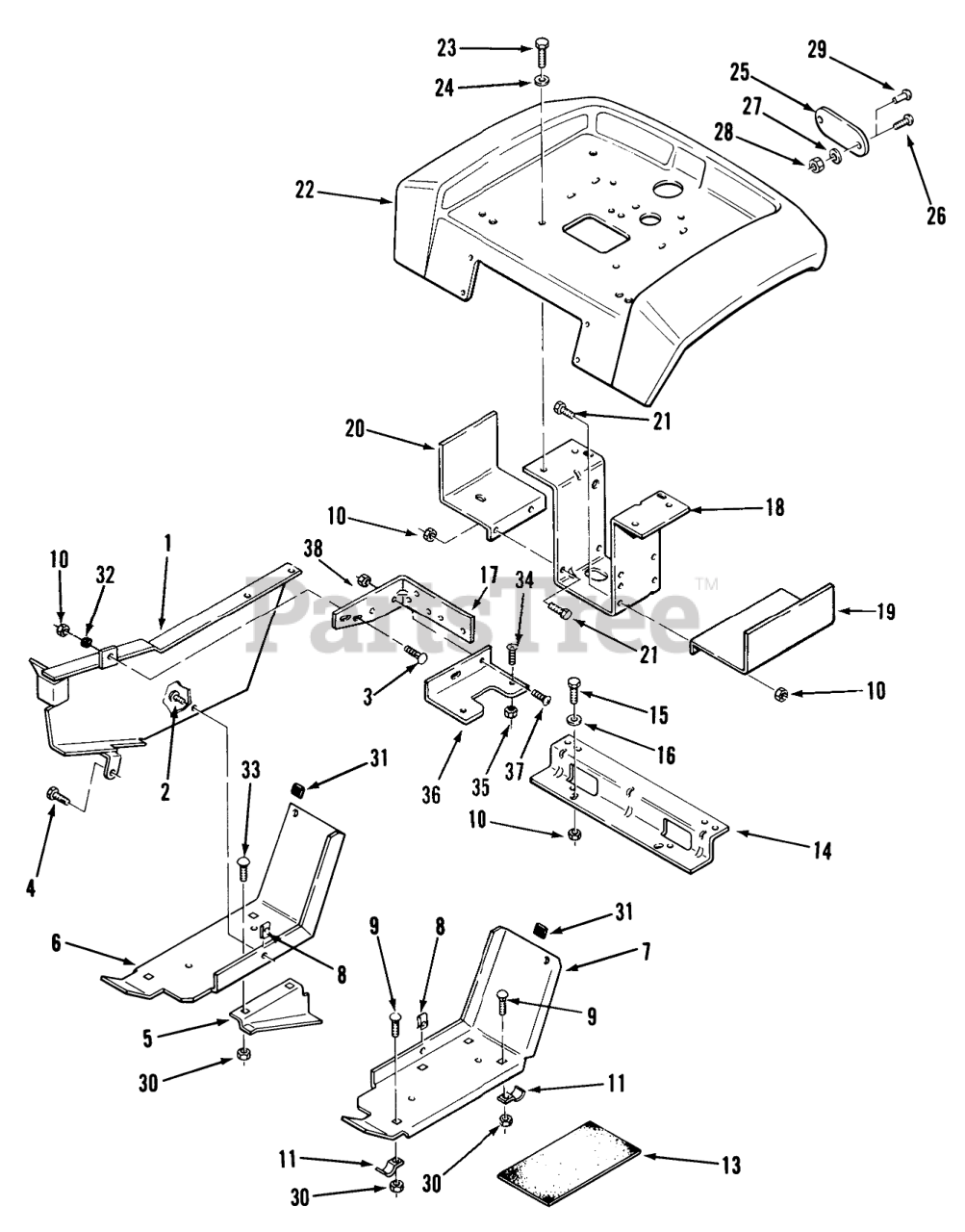

SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 107975

Belt Guard
(Superseded to 95-7695-01)

$

$

Not available

310-8, 312-8, 312-H

Note: Not illustrated

$

$

Not available

Toro 114877

Belt Guard
(Superseded to 92-1527)

$

$

Not available

2

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

3

Toro 116000

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

4

Toro 926694

SCREW

$

$

Not available

5

Toro 106352

GUID-LOWER BLTR
(Superseded to 106352-01)

$18.99

$

Usually ships in 3-6 days

0

6

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

7

Toro 106223

FOOTREST LH R

$200.99

$

Usually ships in 3-6 days

0

8

$2.99

$

In Stock, Qty 20+

0

9

Toro 116000

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 7456

BRACKET

$

$

Not available

13

Toro 110636

PAD FOOTREST

$

$

Not available

Toro 106264

PAD-FOOTREST

Note: Not illustrated

$39.99

$

In Stock, only 2 left!

0

14

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$57.99

$

In Stock, only 1 left!

0

15

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 109554

BRACKET-BELTB

$

$

Not available

18

Toro 108897

Bracket-Fender Support
(Superseded to 79-4990-03)

$108.99

$

Usually ships in 3-6 days

0

19

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$33.99

$

Usually ships in 3-6 days

0

20

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$45.99

$

Usually ships in 3-6 days

0

21

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 110960

Fender
(Superseded to 94-3722-01)

$

$

Not available

23

Toro 926694

SCREW

$

$

Not available

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

25

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

26

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

28

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

29

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 111071

BUMPER SJ5514 BLACK

$3.49

$

In Stock, Qty 5

0

32

Toro 108457

NUT-PUSH

$

$

Not available

33

Toro 118620

BOLT-CARR 5/16 SN
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

34

$

$

Not available

35

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

36

Toro 118280

BRKT-FUS HLDERB

$

$

Not available

Toro 117331

FUSE HOLDERB
(Superseded to 117331-03)

$

$

Not available

37

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

38

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
